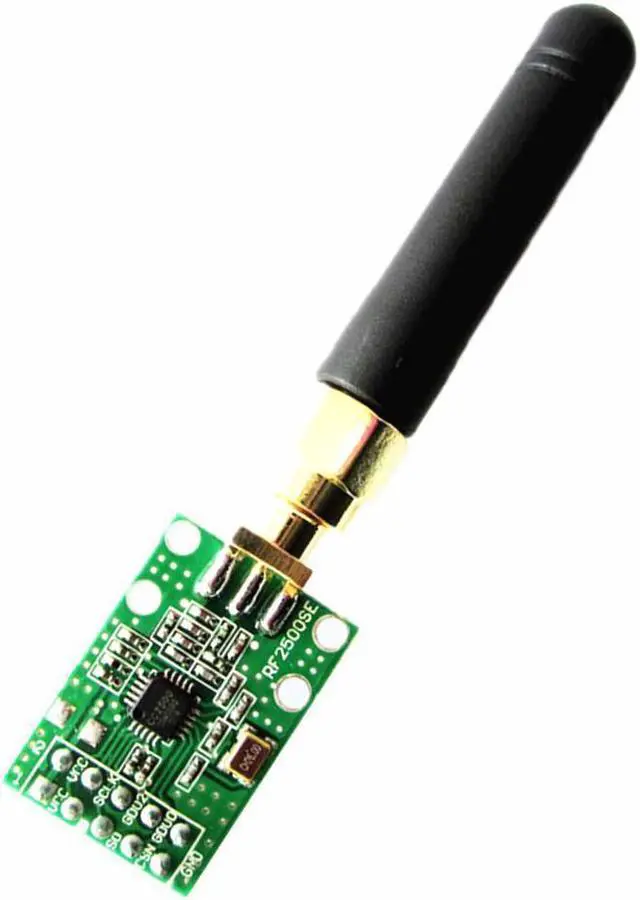

CC2500 wireless module

Certification:NONE
Origin:CN(Origin)
State of Assembly:Ready-to-Go
Model Number:CC2500
Compatibility:Others

The 2.4 GHz ISM/SRD band is license-and uses the CC2500 multi-channel RF transceiver. The CC2500 is the industry's lowest cost multi-channel wireless product for ultra-low-power wireless applications. With its powerful digital processing features, the CC2500 can be used to build high-performance RF systems using only one low-cost MCU. Digital functions, such as overall packet processing, FIFO buffers, idle channel evaluation, and wireless wake-up, can be widely used in consumer electronics (such as wireless keyboards, mice, game controllers), wireless audio transmission (such as wireless microphones, Wireless headphones, wireless speakers, etc.
Performance and features:
(1) Operating voltage: 1.8V~3.6V, recommended to be close to 3.6V, but not more than 3.6V
(2) 2400-2483.5 MHz ISM and SRD bands, license-
(3) Maximum working speed 500kbps, support 2-FSK, GFSK and MSK modulation
(4) High receiving sensitivity (-110dBm at 1.2kbps, -101dBm at 10kbps, -90dBm at 250kbps, 1% packet error rate)
(5) Built-in hardware CRC error detection and point-to-multipoint communication address control
(6) Very low power consumption: TX: 21.2mA at 0dBm RX: 13.3mA at 250kbps;
(7) Programmable output power with a maximum output power of 0dBm and a minimum output power of -10dBm. The data rate can vary from 1.2kbps to 500kbps.
(8) Support low-power electromagnetic wave activation, external interrupt wake-up, external interrupt or RTC wake-up system
(9) Support automatic clear channel access (CCA) before transmission, ie carrier sense system
(10) Appropriate frequency hopping system brought by fast frequency variation synthesizer
(11) The module can be set by software, which is very convenient for software programming.
(12) Standard DIP pitch interface for easy embedded applications
(13) Separate 64-byte RX and TX data FIFOs
(14) Very few external components, high reliability
(15) Module linear visual communication distance: 50-100 meters;
(16) Module size 23mm*16mm (size does not include antenna length), this model is equipped with metal antenna, the cost is greatly reduced, especially suitable for batch application

Supporting wireless development system:
The company also produces matching wireless development systems to help engineers realize wireless applications as soon as possible and shorten the development cycle:
FLY2000: 51-based versatile wireless development board (based on STC10L08XE microcontroller, supports multiple wireless modules)
FLY4000: MSP430-based wireless development board (based on MSP430F149 microcontroller, supports a variety of wireless modules)
For details of the specific wireless development board, please refer to the introduction of the corresponding development kit.
