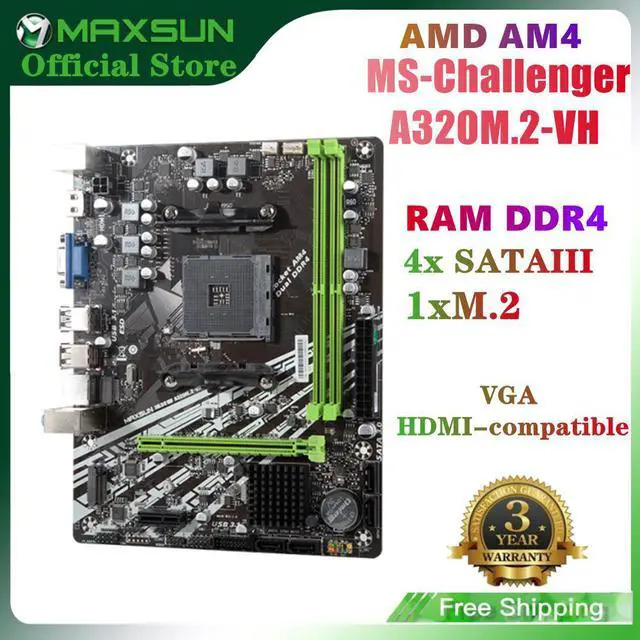

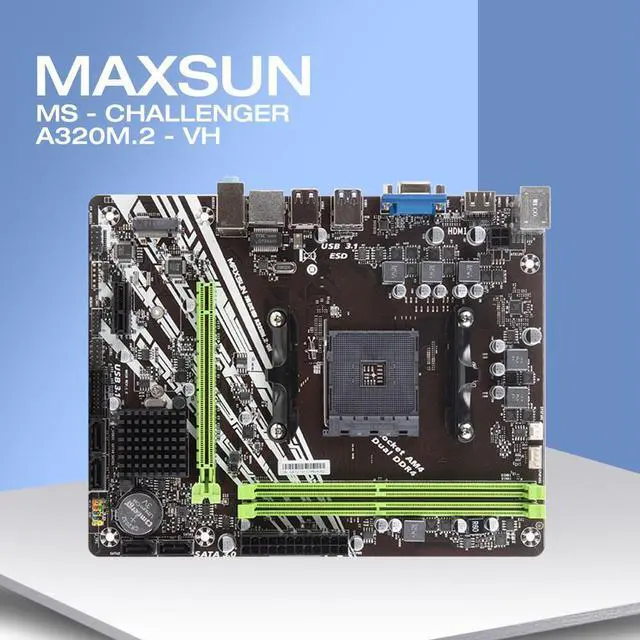

MAXSUN Full Motherboard AM4 A320M.2-VH Challenger AMD ddr4 memory slots Rams PCI-E slot ssd VGA mainboard for desktop
- MAXSUN Full Motherboard AM4 A320M.2-VH Challenger AMD ddr4 memory slots Rams PCI-E slot ssd VGA mainboard for desktop
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
MAXSUN Model:MAXSUN Challenger A320M.2-VH
Quality Certification:FCC
Chipset:AMD A320
Socket Type:AM4
Storage Interface Type:SATA 3
Onboard LAN:1x RJ45
Package:Yes
Model Number:MAXSUN Challenger A320M.2-VH
Application:Desktop
With CPU:No
Special Function:NONE
Maximum Ram Capacity:32 GB
Chipset Manufacturer:AMD
Back I/O Ports:1x RJ45
Support Memory Type:DDR4
Usage Scenario:Enthusiast & Overclocking
Number of PCI:1
PCI - E standards:PCI - E 4.0
Origin:CN(Origin)
Memory channel:Double
Form Factor:CeB
Launch Date:2013
The CR2032 in motherboard photos will be removed before shipping, as is forbidden at CN post and custom
Basic specifications:

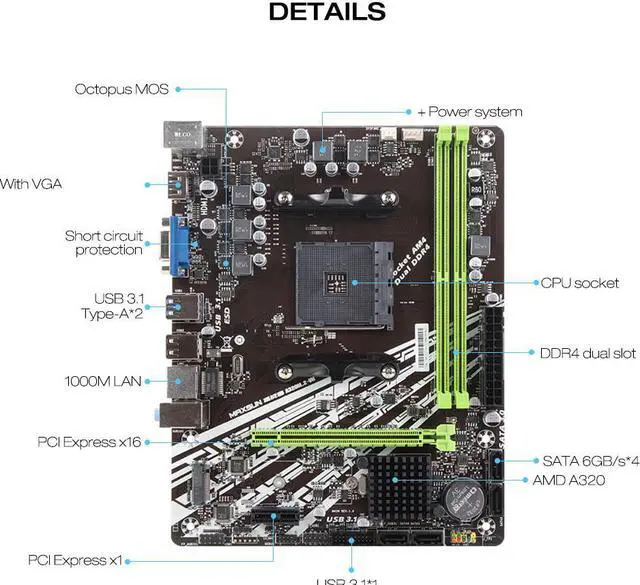

* Motherboard brand: MAXSUN * Plate type: M-ATX * Chipset: AMD A320 chip * CPU support: Support AMD AM4 slot A series APU (Bristol Ridge) and Aaron Ryzen processor (Summit Ridge) (Raven Ridge) * Memory support: Support dual channel DDR4 2133/2400 memory * NIC chip: Realtek RTL8111H Gigabit LAN * Integrated graphics: CPU built-in display chip (APU only, Ruilong no display chip)
Extended support:

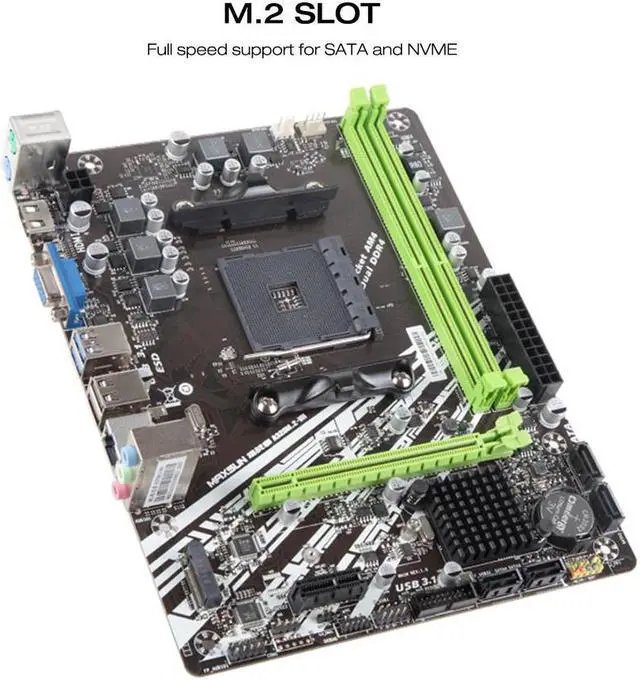

* Disk interface: 4piece SATAIII interface * Graphics card slot: 1piece PCI-E graphics card slot * Other slots: 1piece PCI-E X1 slot, 1 piece M.2 slot
I/O interface:

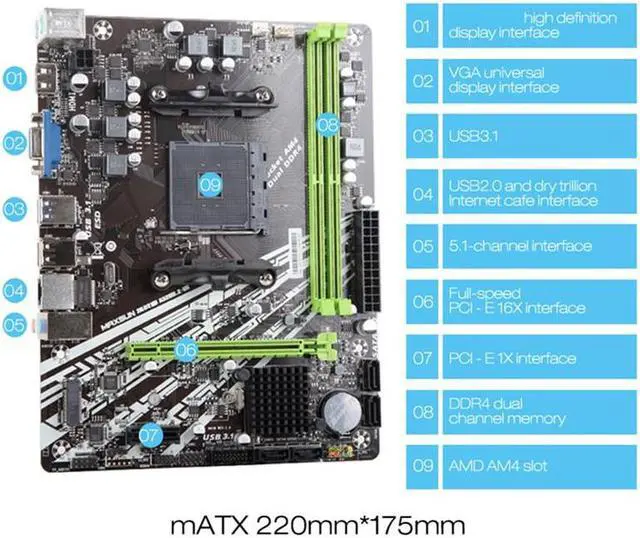

* PS/2 interface: 1piece mouse and keyboard universal * USB interface: 2piece USB3.1 interface; 2piece USB3.0-interface; 2piece USB2.0 interface * Audio interface: 5.1-channel audio * Video interface: VGA, * Expansion pin: 4piece USB2.0, 2piece USB3.0
Other parameters:
* Power connector: 24 pins + 8 pins * Power mode: 6 phases * Features: 1piece graphics card slot, 2pieces DDR4 memory slot, six-phase power supply, full-page ESD protection, hollow heat sink * Mainboard accessories: manual, drive CD, SATA data cable, bezel
BIOS and drives download
* Earthshaker A320M-VH: www.maxsun.com.cn/2019/0425/5148.html * Challenger A320M-VH R2.0: www.maxsun.com.cn/2019/0820/5203.html * Challenger A320M.2-VH www.maxsun.com.cn/2020/0115/5494.html
