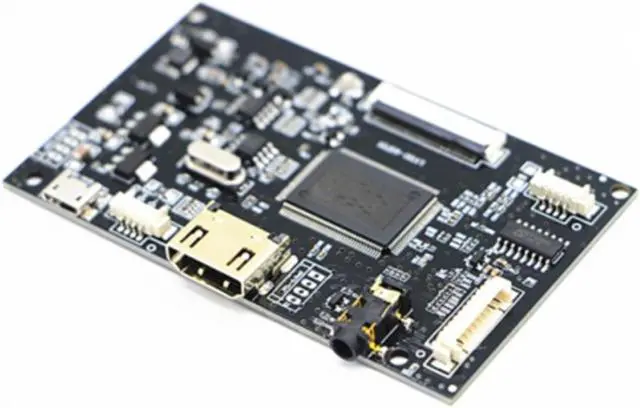

HDMI+Audio 40Pin LCD Driver Controller Board Kit for Panel HJ080IA-01E EJ080NA-04C HE080IDW1 1024X768 Android USB 5V

Origin:CN(Origin)

HDMI+Audio 40Pin LCD Driver Controller Board Kit for Panel HJ080IA-01E EJ080NA-04C HE080IDW1 1024X768 Android USB 5V

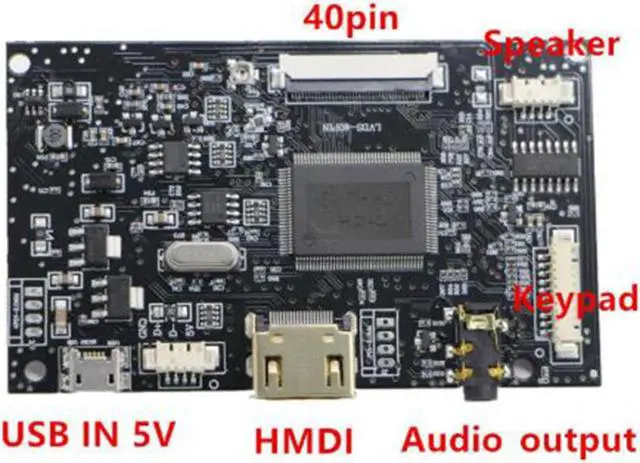

This unit Board:1. Micro-USB power interface, standard 5V power supply, must be higher than 1.5a;2. All plugs must be 1.25mm with connecting plugs;3.1ch HDMI signal input, and this IC support is HDMI1.2
4. HDMI for gold plated mounting;5. The display interface is defined by a gold plated connector-40pin-EJ070NA01;6. Supports Power Amplifier Output, 8-2w / 4-2w
7. Circuit Design A special one is adopted for the controller board, which can drive about 10V LED backlight and support 200mA maximum current output;8. bracket, ttl-40p standard interface (see ej070na-13a,);9. standard 5-key press interface and two-color LED light display bracket
10. Supports LVDS signal output and adapter plates are required for individual displays;11.40 pin lvds definition interface can be driven directly:EJ070NA01-1024 x600 resolution/EJ080NA04B-1024x768 resolution/EJ101NA-02-c-1280 x800/G-1280x800 EJ101NA-01/ZJ080NA-01;12. The maximum resolution of the output screen of this controller board is 1920X120HDMI Signal number input (related to LCD screen).The controller board adopts complete SMD components
13. the controller board can increase the remote control function (need to get through the software) existing procedures just need to add remote control, direct use;14.the controller board can automatically detect and display the relevant input voltage information;15.This controller board can support automatic detection signal switch machine function - this function is customized;16. HDMI signal display, Automatic machine without default 4S signal,Auto Start signal, power saving design function

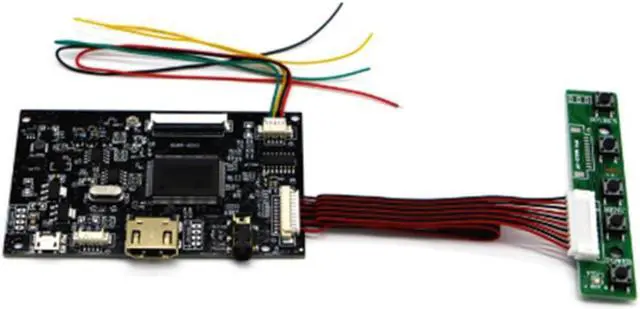

17. Normal procedure of this controller board is to turn on and turn on without signal
18. The conduction plate has four positioning holes.
19. We can provide other customized services for special requirements
20. The client needs to change the program and connect to our company to buy the download plate of the corresponding program.
21. Using the company USB Interface Program Download Board, you can add the logo in the BIN Code yourself
22. only support HDMI sound output, recommended power amplifier to choose 8 Europe / 1W, 8 Europe / 2W, 4 Europe / 1W, 4 Europe / 2W and other specifications
23. This transmission board adopts a special gold-plated double-sided FPC seat, which is not connected up or down in the zone and can be used directly
24. Dual audio output interface design, better versatility
25. The VCOM controller board voltage adopts potentiometer adjustment design, which can fit more LCD displays, and adjustment is practical and simple
26. Compatible with headphone output function, compatible with national and international standards, two kinds of standard headphone interfaces, 3.5mm common for most mobile phones
The headphones
Colour:Black
Material:plastic

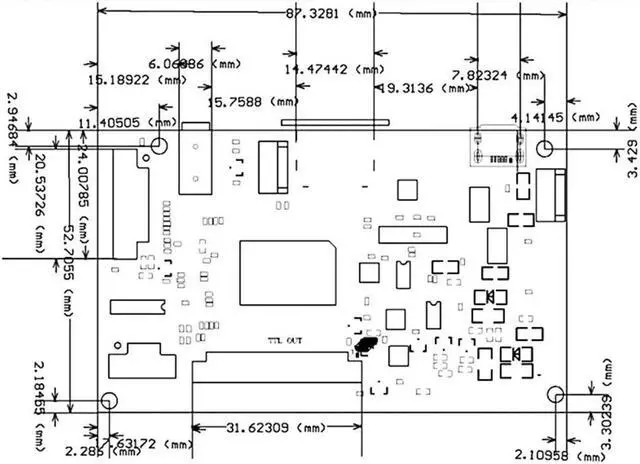

Size:87.5*52.8*7mm
Package Contents:
1*Driver Board
Only the above package content, other products are not included.
