7 Inch Capacitive Touch Screen TFT LCD Display HDMI Module 800x480 for Raspberry Pi3 2 Model B and RPi 1 B+ A BB Black PC Vario

Origin:CN(Origin)

7 Inch Capacitive Touch Screen TFT LCD Display HDMI Module 800x480 for Raspberry Pi3 2 Model B and RPi 1 B+ A BB Black PC Vario
Product Description

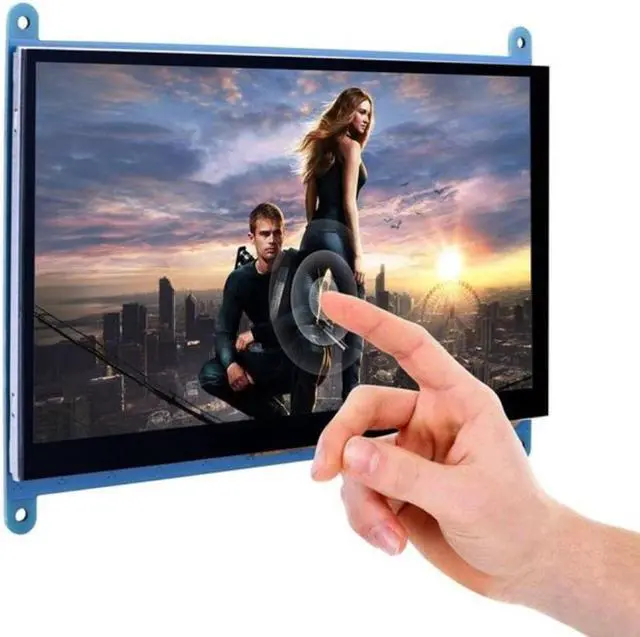

Capacitive touch control and has vertical and horizontal image flip function. Image 4: 3 / 16: 9 display format conversion.
Operating voltage: 5V 1A power supply current requirements within the above 2A, On board 400mA DC-DC Boost regulator to provide power supply to LCD backlight.
Support 864 x 480 x 24bit images content through SSD1963 controller .It also equips parallel MCU interfaces in different bus width to receive images data and command from MCU. Its display interface supports common RAM-less LCD driver of color depth up to 24 bit-perpixel. Warning: All data port voltage can not exceed 3.6V.
Supports BB Black, comes with related images like: Angstrom. and also Supports Banana Pi/Banana Pro,comes with related images like: Lubuntu, Raspbian. We provided CD disk with related driver and souce code to you, If you are unsure about any of the technical issues.please contact us ly.

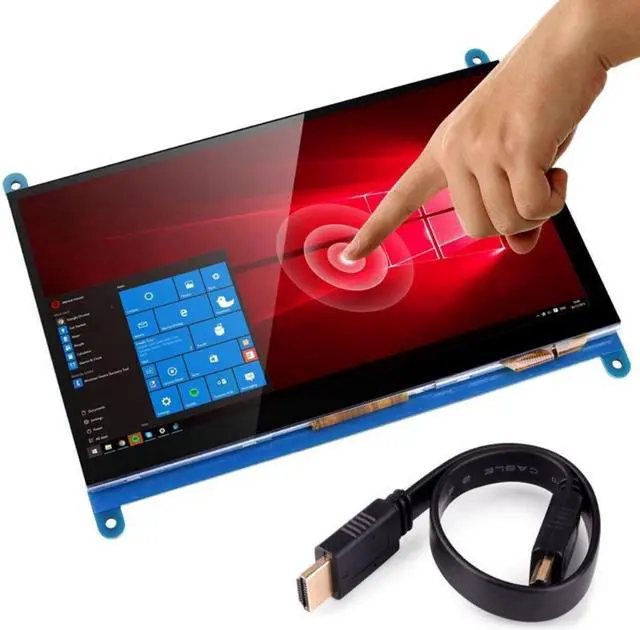

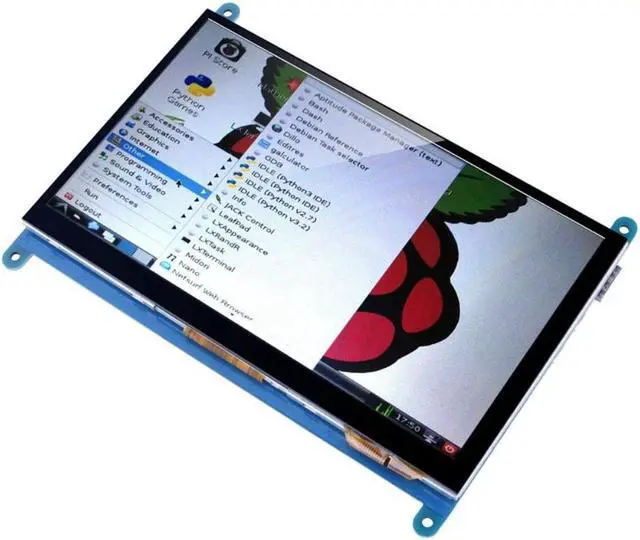

SC7B 7 inch HDMI LCD(B) Using standard HID protocol, so that you can migrate its to your own systems. With the use of Pi Raspberry, support Raspbian,Ubuntu,Windows 10 IoT Single-Touch, drive. When used as a computer monitor, support 10 / 8.1 / 8 / 7, Five point touch, drive
Driver elements: A-Si TFT active matrix
Display mode: Normally,Transmissive
High Resolution: 1152,000 Dots (800 x 3(RGB) x 480)
SSD1963 touch panel controller
Surface Treatment: Anti-glare
Color arrangement: RGB-Stripe
Interface: Digital
Blacklight: Highlighted LED lamp backlighting
TFT Power(pin Name: 3.3V): The power of the screen is 2.8-3.3V; not use 5V, all the Pin's voltage on the module
Can not be more than 3.3V.
Backlight power supply (pin Name: 5V): backlight power range is 4.5-7V.
Interface Type: 16 parallel
Operating Temperature: -20 ~ +70 degrees centigrade
Storage Temperature: -30 ~ +80 degrees centigrade
colour: blue
Material: metal
size: LCD Size: 7.0 inch (Diagonal)
Dot pitch: 0.0642(W) X 0.1790(H)mm
Active Area: 154.08(w)X 85.92(H)
Module Size: 164.9(w)X100.0(H)x5.7(D)mm

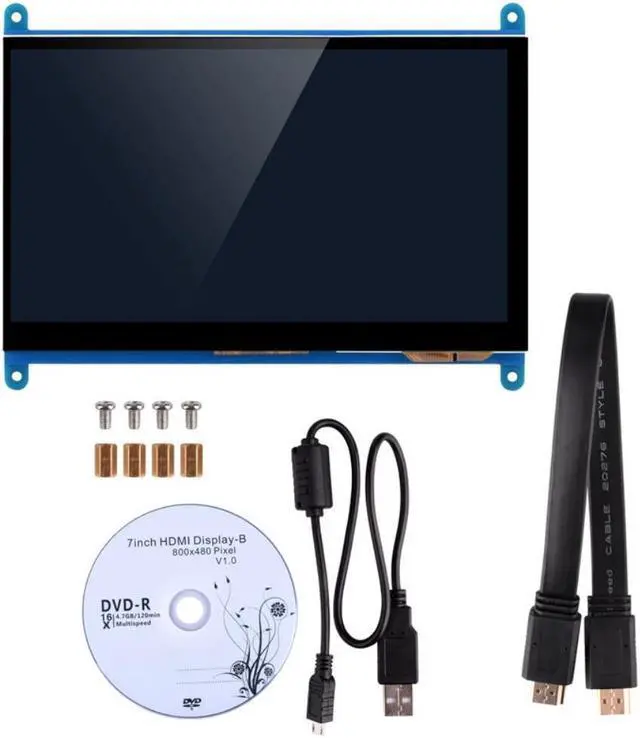

Package Contents:
1 x 7inch HDMI LCD (B)
1 x HDMI cable
1 x USB type A plug to Micro-B plug cable
1 x RPi screws pack (4pcs)
1 x DVD
NOTE:
1.Please note Supported update Raspberry Pi 3 2 and RPi 1 Model B B+ BB BLACK supported
2.Power Supply is NOT included.for PI ,do not require power supply
3.There is a sticker on the LCD screen. Please peel off before use.
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
