YAESU FT-818ND 817ND built-in lithium + charging cover + charger

Certification:NONE
Origin:CN(Origin)
State of Assembly:Ready-to-Go
Compatibility:All Compatible
Bundle:1
Camera Equipped:No
Model Number:FT-818 FT-817

This set (pack + charging compartment cover + charger)
The chargers in the set are available in Chinese/U.S. and European versions, and are issued in China/U.S. by default. If foreign trade customers need to place an order under European regulations, please leave a message for remarks.

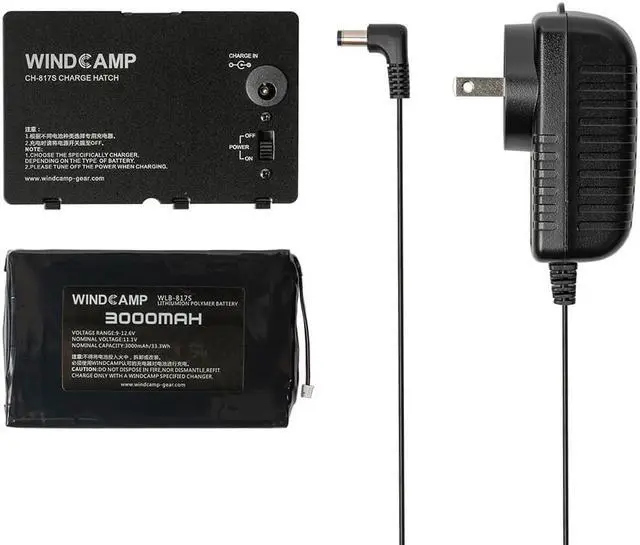

WLB-817S 3000mAh lithium pack * 1pc, CH-817S charging compartment cover * 1pc, charger * 1pc

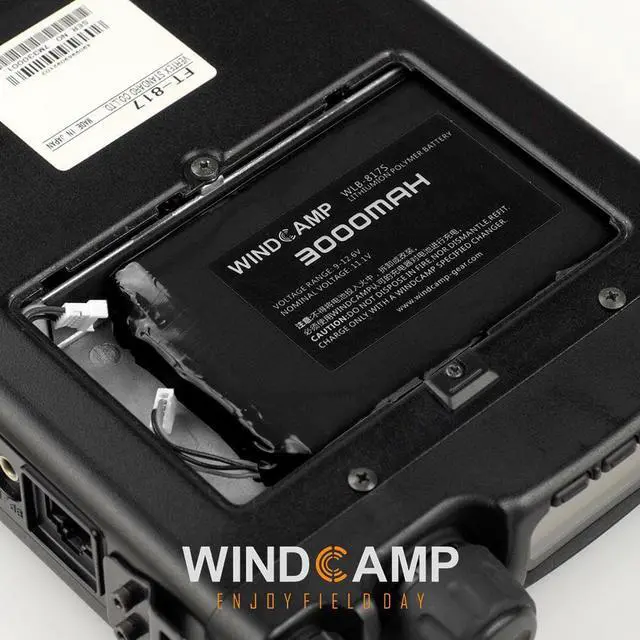

This lithium pack is specially designed for FT-817ND/818ND. The 3000mAh capacity can effectively improve the life.

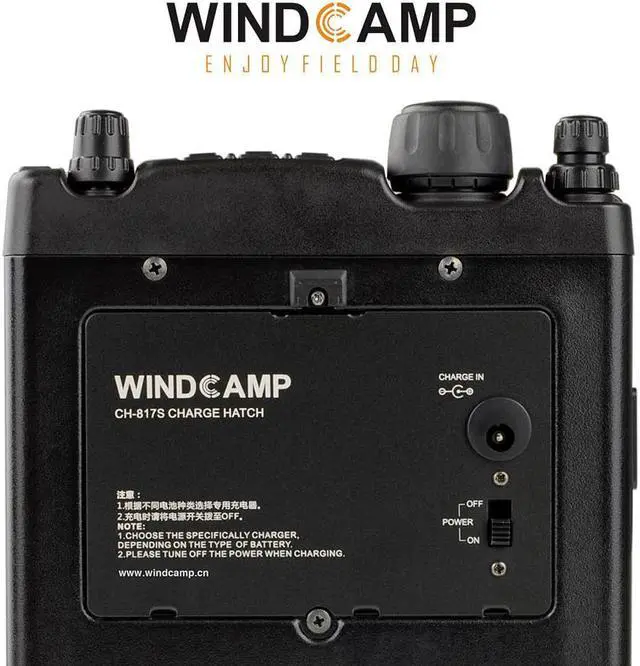

The charging circuit in the FT-817ND/818ND machine is only suitable for the Ni-MH . The charging compartment cover in this set is designed to avoid the charging circuit in the machine, and the lithium pack can be charged through the charger directly into the compartment cover. The charging compartment cover is integrally stamped and formed of aluminum alloy material. The matching charger is customized by first-line manufacturers, and it works stably and generates low heat.
The endurance test of WLB-817S lithium pack is as follows:
1. Working hours of continuous booting and listening: about 9 hours (test conditions: full power/14.270MHz/USB/9 oclock volume/outdoor antenna/room temperature 28)
2. Continuous startup and launch working time: about 2 hours (test conditions: full power/14.270MHz/CW/50 RF load resistance/in-machine menu power fully turned on/room temperature 28)
3. Estimated working hours for normal daily use: about 5 hours. The estimated data is based on long-time booting and intermittent CW transmission as an example, and the calculation is based on the ratio of transmission and reception time of 3:1.
The above test and estimated data can be concluded: the use of WLB-817S built-in pack is very suitable for activities such as round-trip field communication on the same day. If the launch intensity is high, two packs can be used in turn.
Technical parameters of WLB-817S lithium pack
Nominal Capacity: 3000mAh
Output voltage range Voltage Range: 9-12.6V
Nominal Voltage: 11.1V
Maximum Current Output: 4A Max
Charge Voltage: 12.6V
Recommended charging current Charge Current: 1-3A
Protection function Protection: over current protection, short circuit protection, over charge protection, over discharge protection
Service Life: 500 cycles of charging and discharging, the measured capacity is 80% of the nominal capacity
Dimensions(WDH): 96×60×15(mm)
Weight: 180g
Charger technical parameters
Input voltage: AC 100-240V
Input frequency: 50/60Hz
Output voltage: DC 12.6V
Output current: 2A
Output line length: 80cm
Output plug specifications: DC 5.5*2.1mm
