One Pair L15 Class AB FET MOSFET Stereo 300W 8R IRFP240 IRFP9240 Dual Channels Power Amplifier AMP Board w/Insulation sheet

DIY Supplies:ELECTRICAL
Certification:NONE
Origin:CN(Origin)
Model Number:One Pair L15

modname=ckeditor
One Pair L15 Class AB FET MOSFET Stereo 300W 8R IRFP240 IRFP9240 Dual Channels Power Amplifier AMP Board w/Insulation sheet
Note

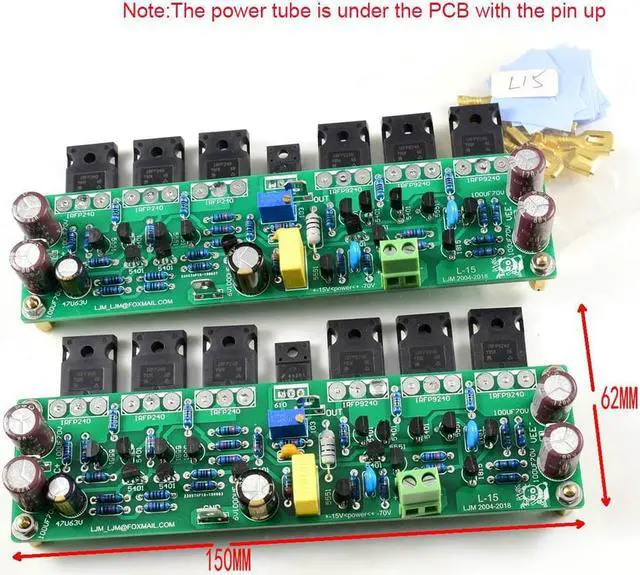

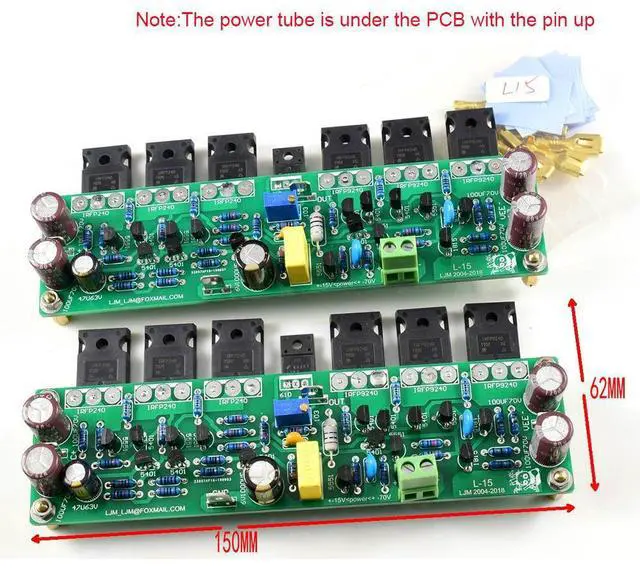

The power tube is under the PCB with the pin up.
Features
L15 FET power amplifier, use uncoupled input (through). Full field effect transistor output (three pairs of IRFP240 IRFP9240 imported from Germany). Adopt military PCB material technology. high cost and best quality material. All components are and genuine, to ensure quality. The product is equipped with insulating sheets. L15 each set of finished boards has been strictly tested by Audio Precision 2
Parameters:
Voltage range: DC + - 15V to DC + -70V Power: 150W 8R, 300W 4R, 600W 2R. (+ -55V power supply) Frequency response range: 5 HZ -0.1DB, 250K HZ -3DB SR> 20V / US THD
97DB VOLTAGE GAIN = 31 times PCB size = length 150MM, width = 40 MM IRFP240 parameters: VDS = 200V, ID = 20A, PD = 150W IRFP9240 Parameters: VDS = 200V, ID = 12A, PD = 150W
Frequency response test:
10HZ-30 K HZ -0.05 DB
THD+N
FFT spectrum distribution data:
Dimensional drawing:
installation hole position:
Package include:
One Pair L15 FET Dual Channel Power Amplifier with Insulation sheet
