2-Channel Isolated CAN Expansion HAT MCP2515 SN65HVD230 Multi Onboard Protection Circuit for Raspberry Pi STM32

Origin:CN(Origin)
Condition:
Type:Drive IC
Application:Computer
Package:TQFP
is_customized:Yes
Model Number:MCP2515 SN65HVD230
Operating Temperature:-
Supply Voltage:-
Dissipation Power:-

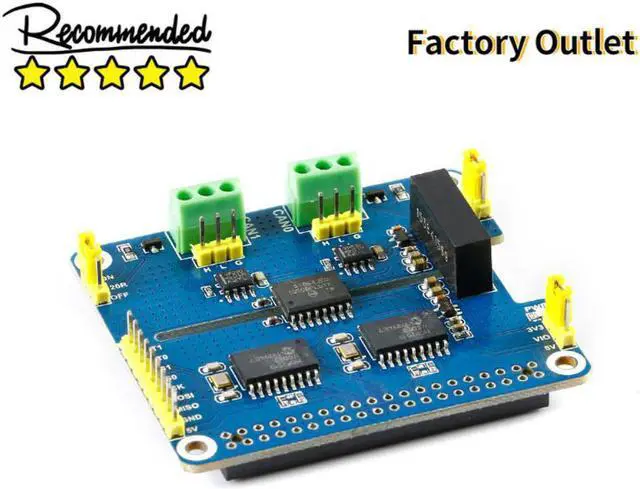

2-Channel Isolated CAN Expansion HAT MCP2515 SN65HVD230 Multi Onboard Protection Circuit for Raspberry Pi STM32
This is a dual-channel CAN bus isolated expansion board specially designed for the Raspberry Pi. It supports CAN fd (CAN with flexible data rate),a variety of on-board protection circuits,strong anti-interference ability,and works.
Stable, suitable for automotive or industrial automation.
Features:
Not only support the traditional CAN 2.0 protocol,but also the CAN fd protocol. The data transmission rate is faster and the data throughput is greater.
Also have a variety of on-board protection circuits, including 500M lightning surge, static protection, short circuit protection and electrical isolation, making communication more secure and reliable.
Characteristics:
Based on Raspberry Pi 40pin GPIO interface, suitable for Raspberry Pi series motherboards
Supports traditional CAN2.0 and CAN fd protocols
Lead out SPI control interface for easy access to main control boards such as STM32/for Arduino
On-board electrical isolation circuit, isolation voltage up to 5KV, good stability, stronger anti-interference
On-board lightning protection, anti-static and anti-short circuit protection
On-board level shifting circuit, which can switch the working level of 3.3V and 15V through a jumper cap
1200 termination resistors on board, can be set by jumper cap
Product parameters:
CAN controller: MCP2517FD
CAN transceiver: MCP2562FD
Communication method: SPI (by default, two independent SPI communication are used, which can be set to one SPI through solder joints)
Power supply: external power supply terminal or Raspberry Pi
Terminal input voltage: DC 8 ~ 26V
Working voltage: 5V
Logic voltage: 3.3V 5V

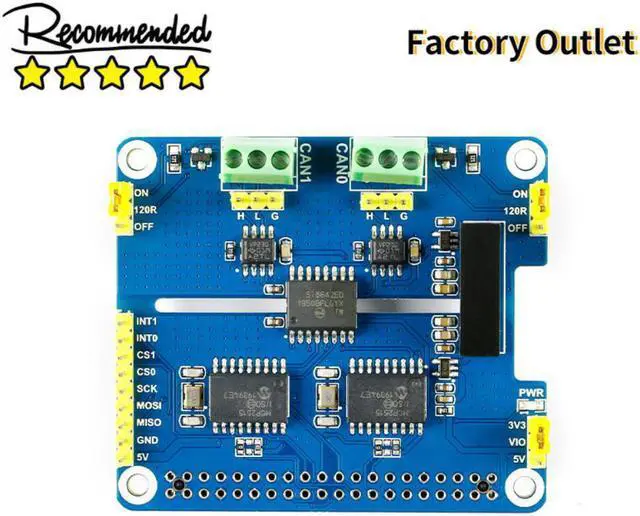

1.MCP2515 controller chip
2.SN65HVD230 transceiver chip
3.SI8642ED digital isolator chip
4.RT9193-33 power chip
5.B0505LS-1W power isolation module
6. SM24CANB transient suppression diode array
7. Raspberry Pi GPIO interface
8. CAN bus interface
9.MCU control interface
10.120 terminal resistance switch
11.3.3V/5V logic voltage switch
12. Power indicator
