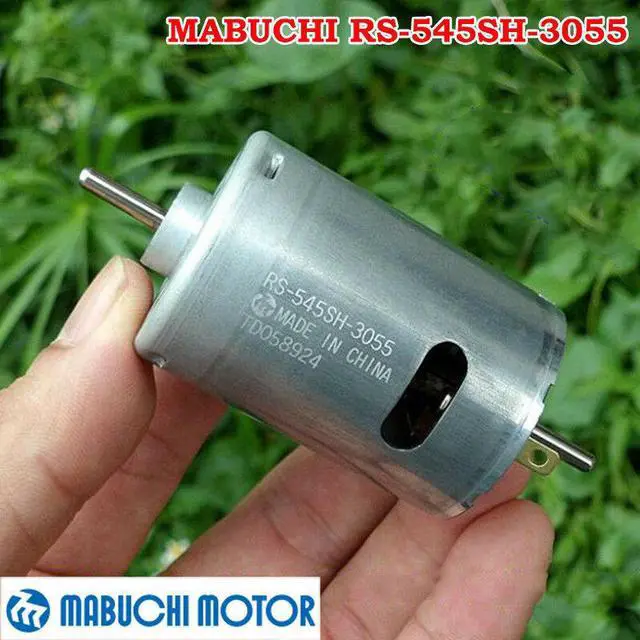

MABUCHI RS-545SH-3055 Micro Electric Motor DC 12V-24V High Speed Power Large Torque 3.15mm Shaft Cooling Fan Garden Tool Toy DIY
- MABUCHI RS-545SH-3055 Micro Electric Motor DC 12V-24V High Speed Power Large Torque 3.15mm Shaft Cooling Fan Garden Tool Toy DIY
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Origin:CN(Origin)
Certification:CCC
Continuous Current(A):not clear
Commutation:Brush
Model Number:RS-545SH-3055
Type:Micro Motor
Protect Feature:Totally Enclosed
Output Power:not clear
Construction:Permanent Magnet
Torque:not clear
Usage:Home Appliance
Efficiency:IE 1
Output shaft diameter:3.15mm
Voltage range:DC 12V-24V
Specification
:
1.Brand: MABUCHI MOTOR
2.Model: RS-545SH-3055
3.Motor diameter: 35.7mm
4.Motor height: 50mm
5.Output shaft diameter: 3.15mm
6.Output shaft length: 16.5mm/18mm
7.Voltage range: DC 12V-24V
8.Test data:
Voltage:12V No-load current:0.23A Speed:7400RPM
Voltage:18V No-load current:0.24A Speed:10900RPM
Voltage:24V No-load current:0.26A Speed:15000RPM
9.Motor weight: 158g
10.Tips: For DC brush motor, the higher the voltage, the faster the speed, the greater the
power, the greater the torque, but relatively easier to heat, please buy friends according
to their own environment to determine the working voltage.
Package Include:
Motor x 1pcs
Certification:CCC
Continuous Current(A):not clear
Commutation:Brush
Model Number:RS-545SH-3055
Type:Micro Motor
Protect Feature:Totally Enclosed
Output Power:not clear
Construction:Permanent Magnet
Torque:not clear
Usage:Home Appliance
Efficiency:IE 1
Output shaft diameter:3.15mm
Voltage range:DC 12V-24V
Specification
:
1.Brand: MABUCHI MOTOR
2.Model: RS-545SH-3055
3.Motor diameter: 35.7mm
4.Motor height: 50mm
5.Output shaft diameter: 3.15mm
6.Output shaft length: 16.5mm/18mm
7.Voltage range: DC 12V-24V
8.Test data:
Voltage:12V No-load current:0.23A Speed:7400RPM
Voltage:18V No-load current:0.24A Speed:10900RPM
Voltage:24V No-load current:0.26A Speed:15000RPM
9.Motor weight: 158g
10.Tips: For DC brush motor, the higher the voltage, the faster the speed, the greater the
power, the greater the torque, but relatively easier to heat, please buy friends according
to their own environment to determine the working voltage.
Package Include:
Motor x 1pcs
