DC 12V Push-Pull Type Bidirectional 2-way Self-holding Micro DC Solenoid Electromagnet 5 Mm Stroke with Black Case

Origin:CN(Origin)
Certification:NONE
Type:Solenoid
With Holes:Yes
Composite:NdFeB Magnet
Shape:Block
Model Number:Push-Pull Type
Country/Region of Manufacture:China
Material:NdFeB

Specification
:
bidirectional self-retaining electromagnet,with black plastic case,model BS-0521N
push-pull electromagnet,the trip is about 5mm.

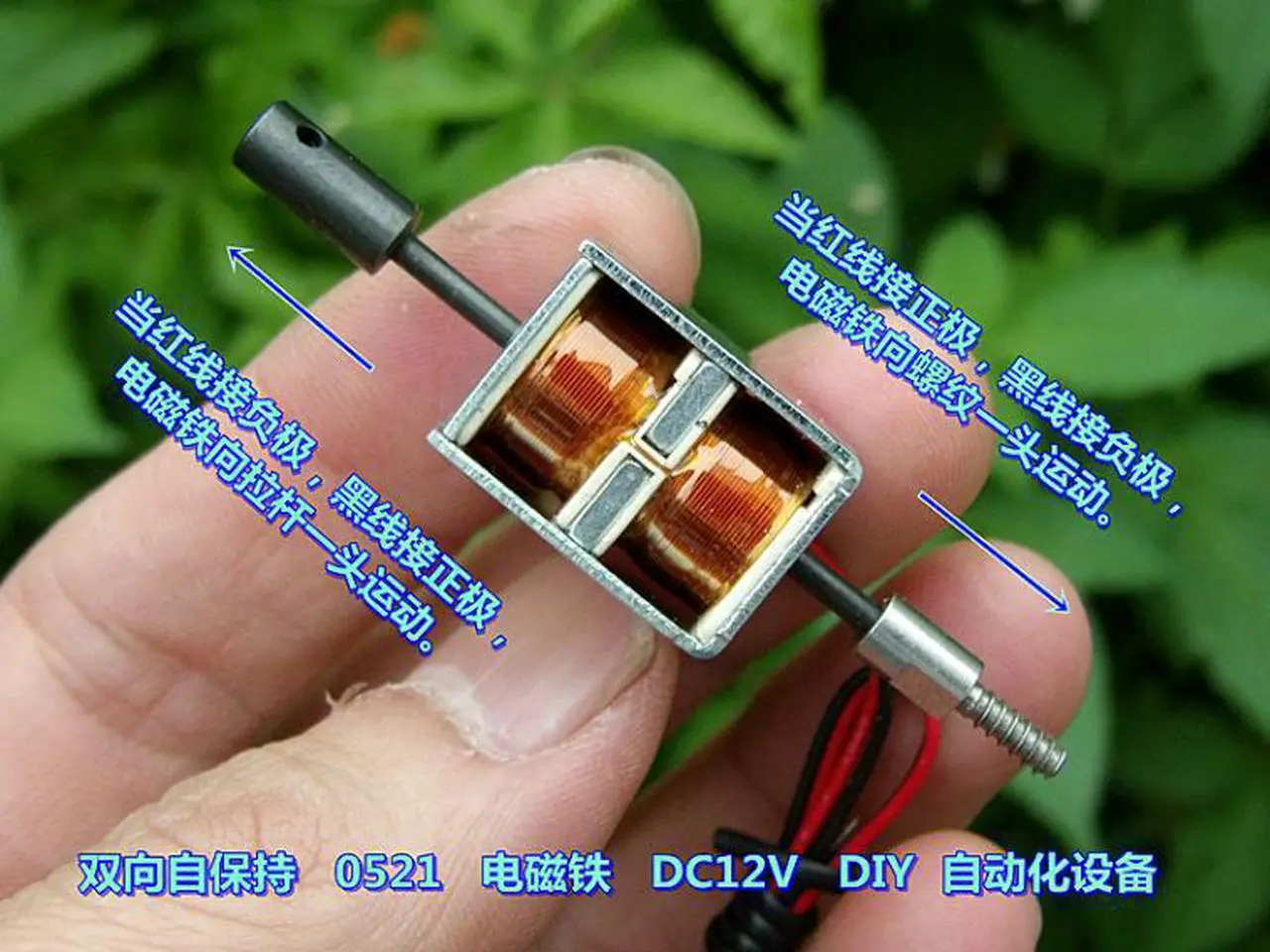

Working mode:
1.When connect red line with power positive,connect black line with power negative,the
iron core towards to the threaded end.
2.When connect red line with power negative,connect black line with power positive,the
iron core towards to the opposite end.
1.Voltage: DC 12V
2.Current: 1.75A
3.Stroke: about 5mm
4.Weight: 25g
5.Application: Electromagnets are widely used, such as textile machinery, embroidery
machinery, and many types of automation equipment, as well as DIY electronic door locks.
6.Note: This type of electromagnet is not suitable for long-term electrification, it is
generally used in the click instantaneous electrification mode of work.
Package Include:
Micro DC Electromagnet Magnet
x 1pc
