SHINANO LA034-040NN07A 3-Phase 8-Wire Hall Brushless Electric Motor Double ball bearing Large Torque DC105V 25W

Origin:CN(Origin)
Certification:ROHS
Commutation:Brushless
Type:Micro Motor
Protect Feature:Explosion-proof
Output Power:25W
Construction:Permanent Magnet
Usage:Home Appliance
Efficiency:IE 1
Output shaft diameter:5mm
Motor diameter:36.5mm
Actual Rated Input Voltage:105V

Specification
:

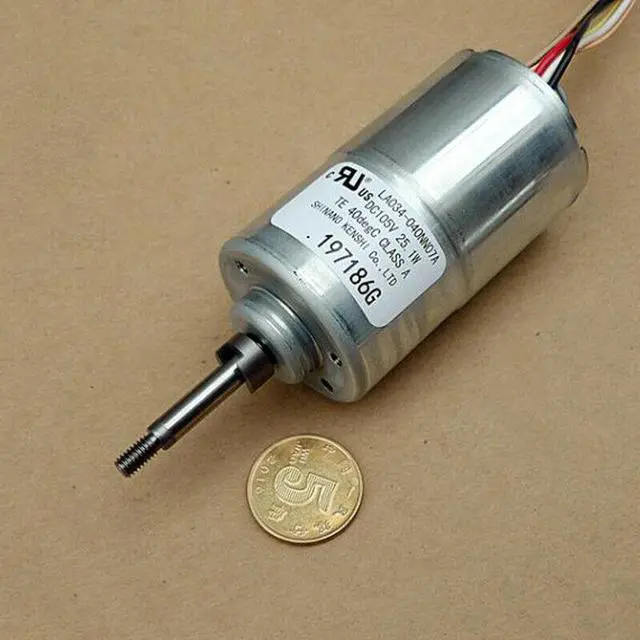

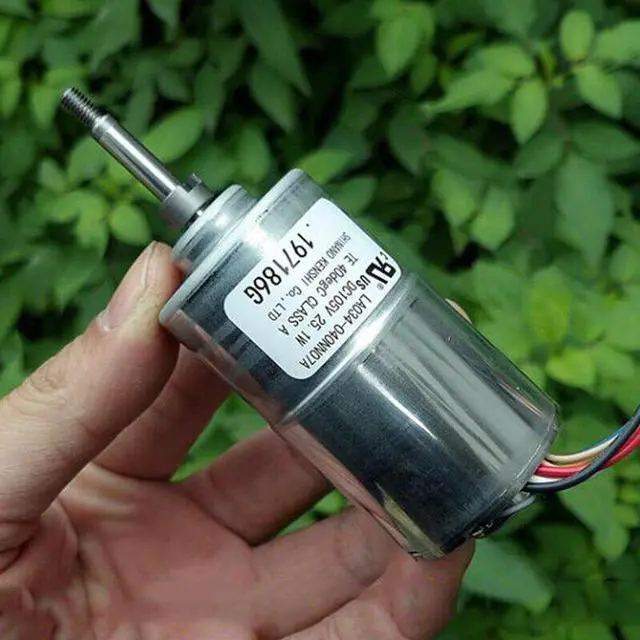

This motor is SHINANO brushless motor,inner rotor,3-phase 8-wire with hall.
Double ball bearings with 8 P lead, 3 main wires and 5 hall wires.
The motor has no built-in drive board and it needs to be equipped with drive by the buyer himself.
1.Motor diameter; 36.5mm
2.Motor length: 61mm
3.Output shaft diameter: 5mm (with 3.9mm orthodontic thread)
4.Output shaft length: 35.5mm
5.Lead: 8P lead (3 main wires and 5 hall wires)
6.Weight: 233 grams
7.Rated voltage: DC 105V
8.Rated speed: not clear
9.No-load current: not clear
10.Test data:
Voltage:24V Speed:2800RPM
Voltage:30V Speed:3500RPM
Voltage:36V Speed:4300RPM
Voltage:48V Speed:5800RPM
Voltage:60V Speed:7100RPM
Package Include:
Motor x 1pcs
