433MHz 8W Power Amplifier Board RF HF High Frequency Amplifiers Digital Power Amplificador

Certification:NONE
Origin:CN(Origin)
Maximum Power Per Channel:8W
Model Number:433MHz 8W Power Amplifier Board-001

433MHz 8W Power Amplifier Board RF HF High Frequency Amplifiers Digital Power Amplificador
This power amplifier can output 39.2dBm (8.31W)@433MHz at 8V maximum, current 1.56A, efficiency 66.5%, very suitable for two lithium power supply, can burst out such a large power. The development team has done in-depth matching and optimization of this power tube, welcome to compare and test.
Working frequency: 400-460MHz
Maximum output power (P1dB):
8.32W (39.2dBm)@8V 1.56A efficiency 66.6%
6.76W (38.3dBm)@7V 1.43A efficiency 67.5%
5.12W (37.1dBm)@6V 1.26A efficiency 67.7%
For details, please see the test picture at the bottom of the page
Please note: Due to the large output power, do not connect the antenna directly to the output port of the power amplifier!
Please use a 50 ohm coaxial cable of no less than 2 meters to connect to the antenna to prevent strong signals from interfering with the normal operation of the power amplifier!
Input power: 20~23dBm (0.1~0.2W), it can work under 0.1W, the output power will increase with the increase of input power, and finally reach the maximum power point.
Working voltage: 5-8.4V (typical lithium power supply voltage)
Working current: 1.6A (Max)
Input impedance: 50 ohm
Output impedance: 50 ohms
Input and output terminals: SMA-k female (external thread inner hole)

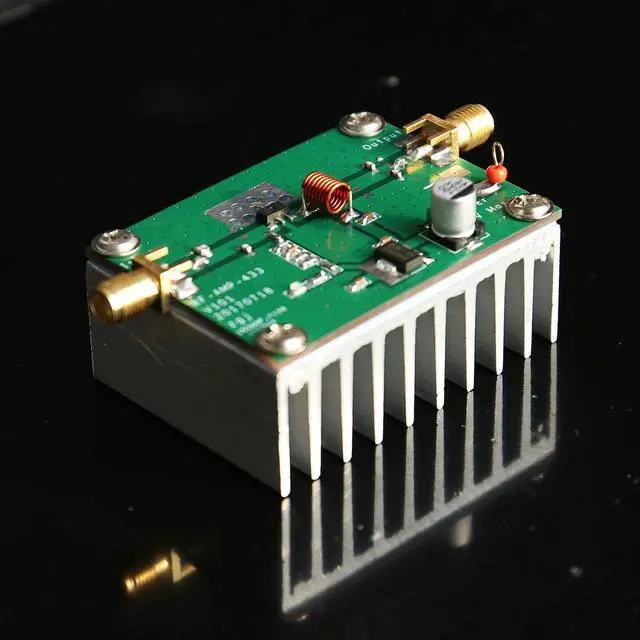

Module size: 4x5.5cm (excluding protrusions)
Module weight: 58g

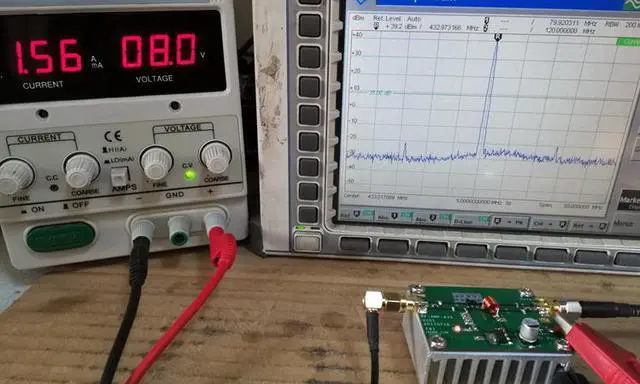

8V power supply, output 39.2dBm (8.3W), efficiency 66.6%, see the figure below:
Output Power:
7V power supply, output 38.3dBm (6.76W), current 1.43A, efficiency 67.5%, see the following figure:
Output Power:
6V output power 37.1dBm (5.13W), current 1.26A, efficiency 67.8%, see the following figure:
