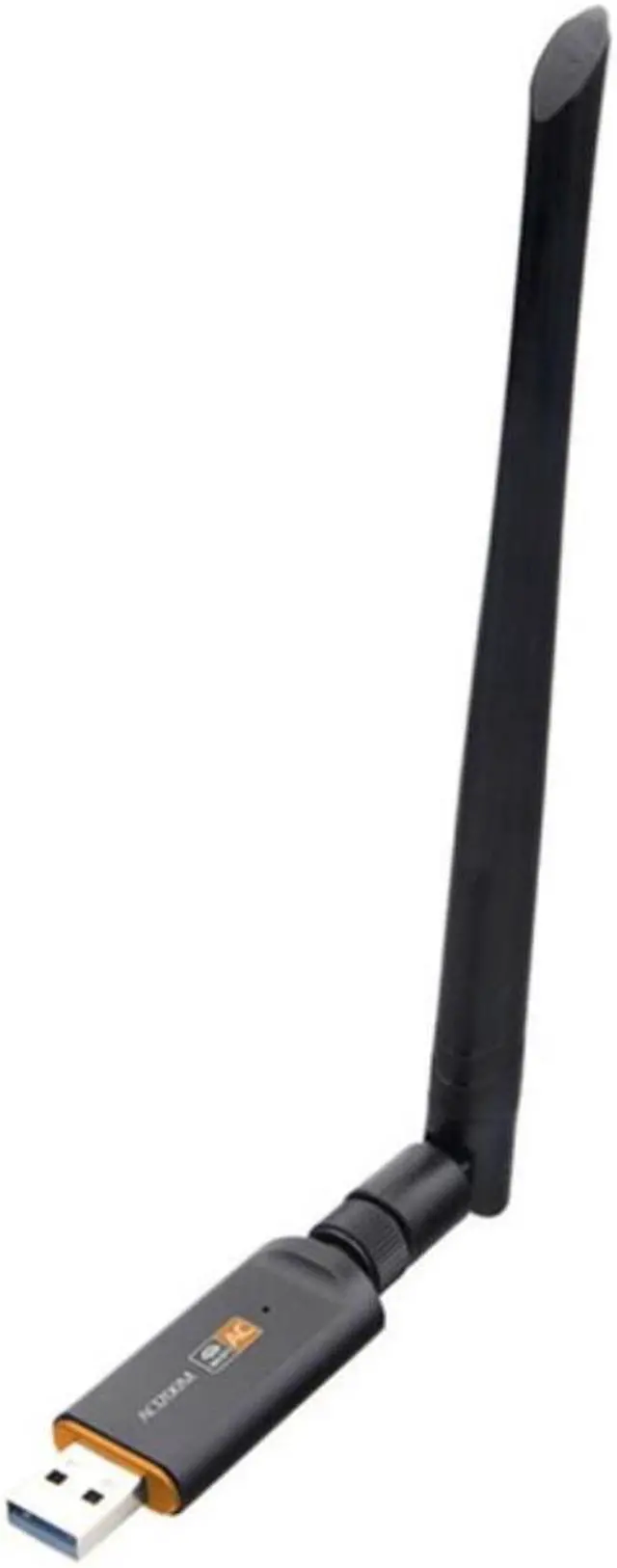

1200Mbps USB Wifi Lan Dongle Adapter AP Station Model 2.4GHz 5.8GHz USB3.0 Wireless-AC Network Card with 5DBi Antenna

Transmission Rate:Other
Certification:NONE
Origin:CN(Origin)
Kind:External
Type:wireless
Lan Transmission Rate:ETHERNET
Application:Desktop

1200Mbps USB Wifi Lan Dongle Adapter AP Station Model 2.4GHz 5.8GHz USB3.0 Wireless-AC Network Card with 5DBi Antenna
KF-4603 is a 11AC dual-band wireless WiFi standard technology adapter, can simultaneously be worked in 2.4G and 5G band. 5GHz channel with low interference and excellent performance. 802.11AC wireless transmission technology, compared to existing 802.11n , the transfer rate increased by nearly 3 times.
WIFI maximum transfer rate of 2.4G is 300Mbps and 5G is 866Mbps. Data transmission quality is more perfect whether it is used to play online game or watch high-definition audio and video. Simultaneously also supports the simulation AP hot spot function, transforms the wired network the wireless signal output
Through the simple AP pattern establishment, uses the card as the AP route, facilitates the user through the wireless card to realize many people to share the net.
The wireless card also integrates a wireless configuration program, easy to install. and supports Soft AP function, allowing you to quickly set up a wireless local area network. In wireless security, it supports WPA / WPA2 / WEP / 802.1X / WMM encryption, allowing you to quickly achieve wireless encryption, security wireless network security.
Supports 802.11ac standard
Compatible with 802.11b / g / n wireless devices
Transmission rate, 2.4GHZ/300Mbps, 5GHZ/866Mbps
Supports WPA / WPA2 / WEP / 802.1X / WMM encryption
Operation system: Windows ME/98SE/2000/XP/Vista;Linux;MAC , Windows 10
Strong anti-interference ability
Supports WPS button
HARDWARE FEATURES
Interface USB 3.0
Chipset Realtek 8812BU
Antenna Type 1* 2dBi pcb antenna 1*5dBi sma antenna
WIRELESS FEATURES
Wireless Standards IEEE 802.11ac, IEEE 802.11a,
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency 2.412-2484GHz/5.15-5.825GHz
Signal Rate 5GHz
11ac: Up to 867Mbps(dynamic)
11a: Up to 54Mbps(dynamic)
2.4GHz
11n: Up to 300Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)
Reception Sensitivity 11a 6Mbps:-88dBm
11a 54Mbps:-71dBm
11ac HT20:-65dBm
11ac HT40: -60dBm
11ac HT80:-56dBm
11b 11Mbps:-90dBm
11g 54Mbps: -73dBm
11n HT20:-71dBm
11n HT40:-68dBm
Transmit Power Less than 20dBm (EIRP)
Wireless Modes Ad-Hoc / Infrastructure mode
Wireless Security Support 64/128 bit WEP, WPA-PSK/WPA2-PSK, 802.1x
Modulation Technology DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM
System Requirements Windows XP/Vista/7/8/10, Linx2.6X;Mac OS X
Material:plastic
colour:black
Package Contents:
1 x Wireless Network Card
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
