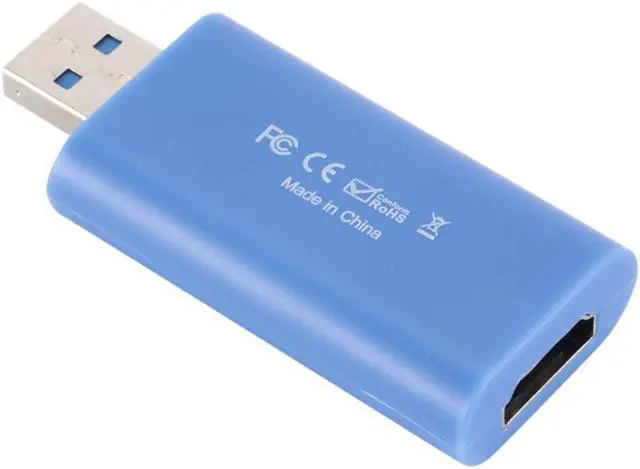

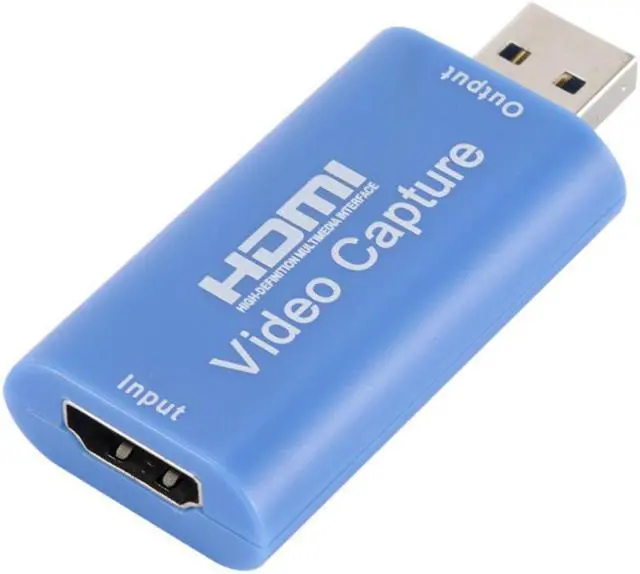

4K Video Capture Card USB2.0 HDMI-compatible Video Grabber Record Box for PS4 Game DVD Camcorder Camera Recording Live Streaming

Certification:NONE
Origin:CN(Origin)
Size:63x28x13mm
Plug Type:None
Model Number:AA
Item Type:Video Converter
Resolution:1080P
interface:USB

[product alias]Live video acquisition card, USB2.0 video acquisition card, HDMI video acquisition card.
[Product Introduction] This USB2.0 capture card is compact and portable, plug-and-play without power supply, high-definition, no ze, it can capture HDMI video as well as HDMI audio at the same time, and can transmit audio and video signals to the computer , Preview and store on the smartphone. It is suitable for high-definition acquisition, teaching recording, medical imaging, etc. Through many third-party playback and acquisition software, preview, recording, acquisition, live broadcast and other functions are realized. HDMI video acquisition complies with UVC and UAC standards and is easy to use.
[product features]
1. Support input Maximum resolution 3840 × 2160@30Hz;
2. Maximum output resolution 1920 × 1080@30Hz;
3. Support 8/10/12 bit deep color;
4. Support AWG26 HDMI standard cable: input up to 15 meters (1080P and below resolution);
5. Support most acquisition software, such as VLC, OBS, Amcap, etc.;
6. Support Windows, Android and MacOS operating system
7. Support all third-party player software compatible with UVC and UAC protocols;
[product specification]
1. Input interface:1*HDMI interface.;
2. Output interface: 1*USB2.0 interface;
3.HDMI input: maximum resolution 3840×2160@30Hz
4. USB output: maximum resolution 1920×1080@30Hz;
5. Video output format: YUV, JPEG;
6. Audio output format: L-PCM;
7. Input cable distance: 15m, awg26 HDMI standard cable;
8. Audio and video capture: Comply with UVC (USB video class) and UAC (USB audio class) standards;
9.Maximum working current: 0.4a/5v DC;
10. Working temperature: -10-55 degrees Celsius;
11.Dimensions (length x width x height): 63x28x13(mm).;
12.Weight: 22G;
