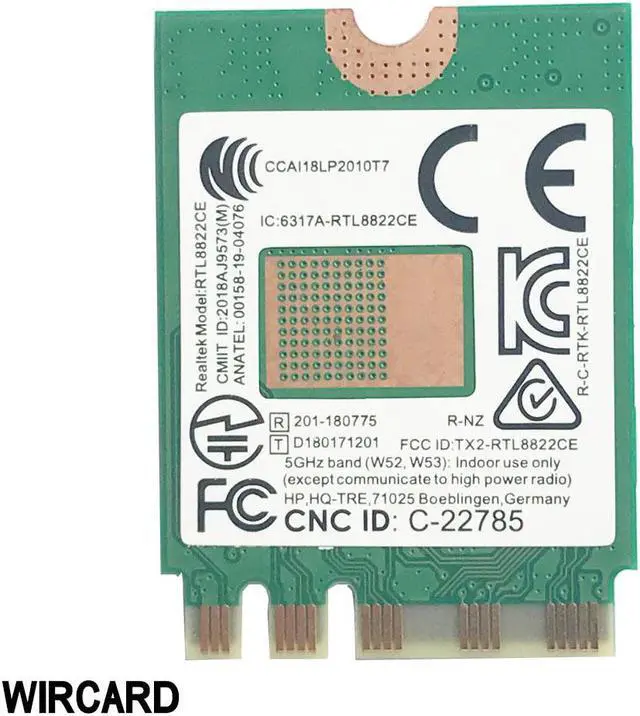

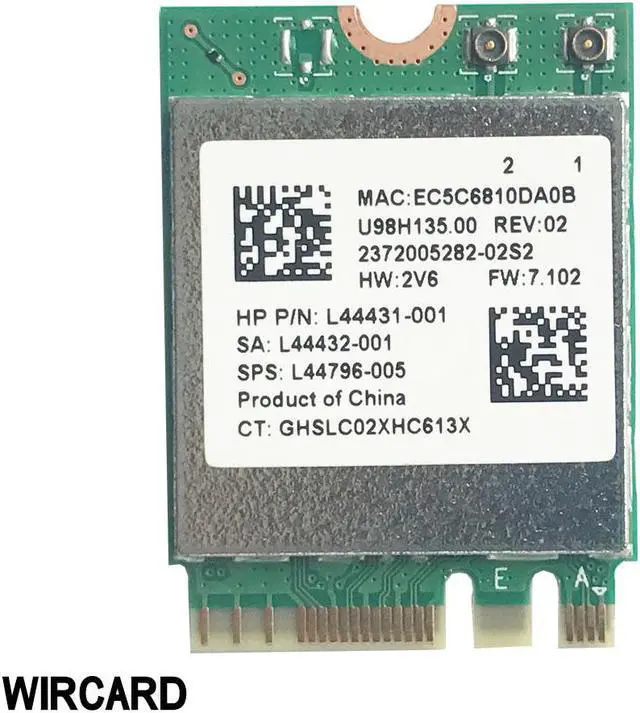

RTL8822CE Dual Band 802.11ac M.2 WIFI CARD WIFI Mudule + BT5.0 Network Card

Transmission Rate:867Mbps
Certification:CE
Origin:CN(Origin)
Kind:Internal
Type:wireless
Application:Laptop
Wireless Protocol:802.11n
Adapter Socket:M.2
Interface Type:NGFF
Wi-Fi Supported Frequency:2.4G & 5G
Package:Yes
Applicable Network Type:Gigabit Ethernet
Model Number:RTL8822CE

802.11ac Wave 2 Compliant with MU-MIMO, WiFi+Bluetooth 5.0, M.2 Module (WiFi 5), RTL8822CE, 2T2R
Chipset: Realtek RTL8822CE
Antenna: 2 x IPEX MHF4 connectors, 2T2R
Interface: PCIe: WLAN; USB: Bluetooth
Output Power up to 18dBm
Support: Windows 10, Linux, Android

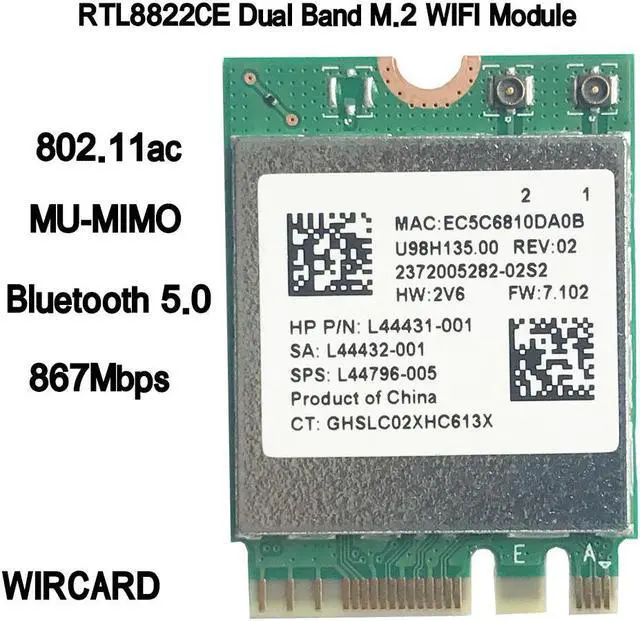

RTL8822CE is an 802.11ac/a/b/g/n Dual -Band WiFi+Bluetooth M.2 (Key A,E) module (WiFi 5) based on Realtek RTL8822CE chipset, It supports Multiple drivers (Android/ Windows/ Linux) for various platform. This module support MU-MIMO two steams on dual band 2.4GHz or 5GHz operating and incorporates the latest Bluetooth 5.0, the data rate up to 867Mbps on ac mode. The RTL8822CE is designed by M.2 2230 slot type form factor.
The RTL8822CE is using highly integrated single-chip MIMO (Multiple In, Multiple Out) wireless local area network (WLAN) RTL8822CE solution to let users enjoy the high digital content through the latest wireless technology without using cables and cords. RTL8822CE combines a WLAN MAC, a 2T2R capable WLAN baseband, and RF in a single chip. RTL8822CE module enables a high performance, cost effective, low power, compact solution that easily fits in the PCI Express and USB M.2 2230 A-E Key module which is Incorporated with advanced security encryption WEP, WPA, WPA2, WPS,WPA3, and 802.1x, it will prevent users devices from malicious attacks.
Specification
STANDARD
WI-FI IEEE 802.11ac/a/b/g/n
Chipset Realtek RTL8822CE
Host Interface
WLAN : PCIe
RADIO
Antenna 2 x IPEX MHF4 connectors
Operating Frequency 802.11ac/a/b/g/n ISM Band
2.412GHz~2.484GHz
5.150GHz~5.850GHz
*Subject to local regulations
MODULATIONS
802.11b DSSS (DBPSK, DQPSK, CCK)
802.11g OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
802.11n OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
802.11a OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
802.11ac OFDM (BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM)
POWER & SENSITIVITY
WiFi Power TX (± 2dBm) Sensitivity RX
11b @ 11Mbps 18dBm -85dBm
11g @ 54Mbps 17dBm -74dBm
11gn HT20 @ MCS 7 16dBm -70dBm
11gn HT40 @ MCS 7 16dBm -67dBm
11a @ 54Mbps 17dBm -68dBm
11an HT20 @ MCS 7 16dBm -67dBm
11an HT40 @ MCS 7 16dBm -64dBm
11ac VHT80 @ MCS 9 14dBm -54dBm
POWER CONSUMPTION
Continue TX 606mA
Continue RX 302mA
ENVIRONMENTAL
Operating Voltage DC 3.3V
Temperature Range 0~ 70°C (Operating) -40 ~ 80°C (Storing)
Humidity (Non-Condensing) 5 ~ 90% (Operating) 5 ~ 90% (Storing)
SIZE
Dimension (MM) 30mm(±0.15mm) x 22mm(±0.15mm) x 2.0mm(±0.15mm)
Weight 2.5g
SOFTWARE
Driver Windows 10
Linux
Android
Security 64/128-bits WEP, WPA, WPA2, WPA3, 802.1x
