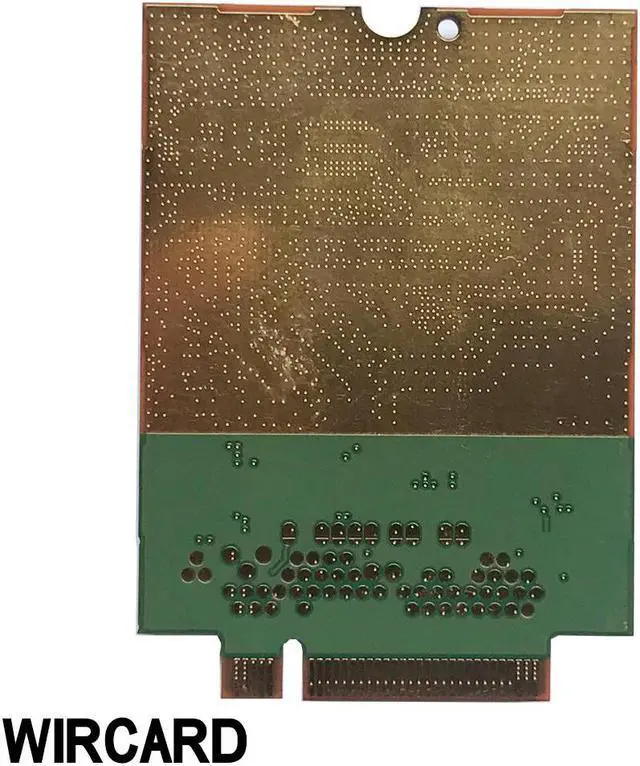

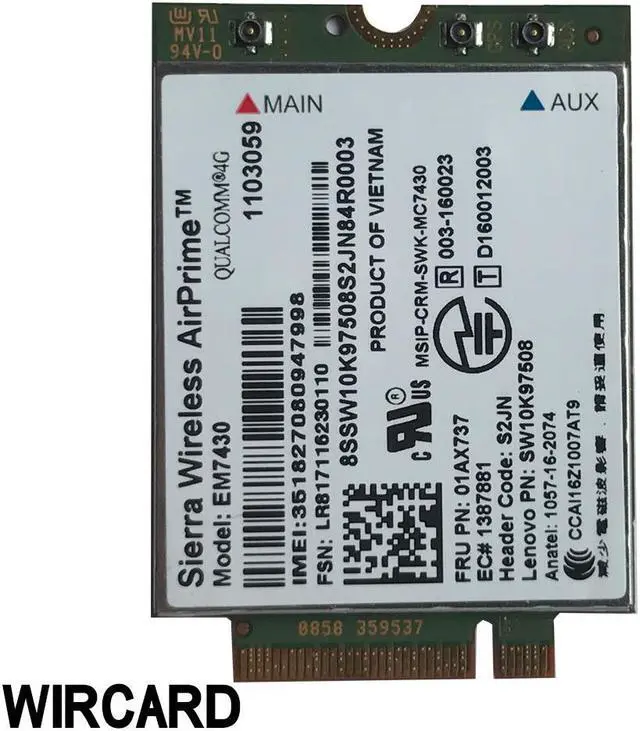

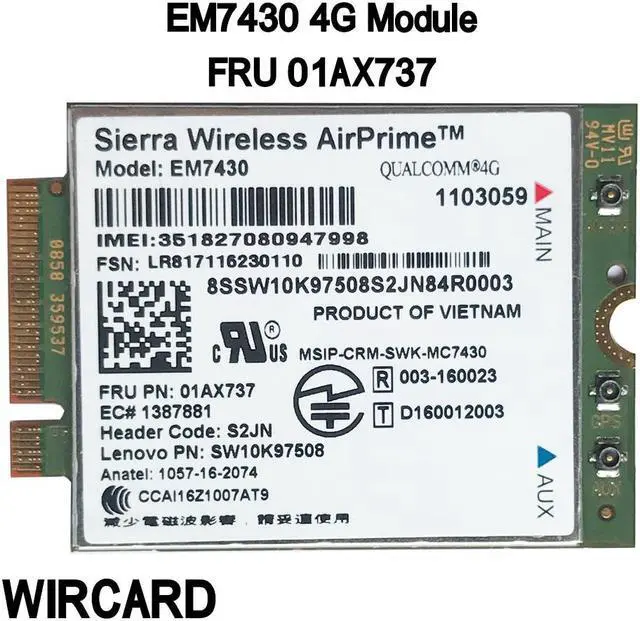

EM7430 FDD/TDD LTE 4G Module WCDMA GNSS 4G Card for Thinkpad X1C Gen5 notebook T470S Lt 10 Tablet laptop
- EM7430 FDD/TDD LTE 4G Module WCDMA GNSS 4G Card for Thinkpad X1C Gen5 notebook T470S Lt 10 Tablet laptop
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Certification:CE
Origin:CN(Origin)
Wireless Protocol:LTE
Kind:Internal
Application:Laptop
Model Number:EM7430
Package:Yes
Interface Type:M.2
Card Type Device:4G Card
Type:wireless
Transmission Rate:300Mbps
EM7430 FDD/TDD LTE 4G WCDMA GNSS for Lenovo Laptop
FRU 01AX737
T470S Notebook(20HG)
X1C Gen5 Notebook(20HQ)
Lt 10 Tablet (20L3)
Package: 1X 4G Card
2 PCS NGFF IPEX 4 Antennas
EM7430 Technical Specifications:
* Category: 4G Module
* Manufacturer: Sierra Wireless
* Chipset: MDM9230
* Form Factor: PCIe M.2
* Pins: 52-pin
* Frequency bands
- LTE FDD: Band B1, B3, B5, B7, B8, B18, B19, B21, B28, B38, B39, B40, B41
- UMTS/HSPA+: B1, B5, B6, B8, B9, B19
- TD-SCDMA B39
* Technologies: UMTS,HSDPA,HSPA+,LTE
* Max Download Speed: 300 Mbps
* Max Upload Speed: 50 Mbps
* Temperature: -10 º C to 55 º C
* Certifications/Regulatory: Planned: JRF/JPA, NCC
* Carriers Approved: Planned: docomo, Telstra
* Connectors: Aux/GNSS, GNSS
* Satellite Systems: GPS, Glonass, Beidou, Galileo
* Modes: Standalone, SUPL 2.0, XTRA 3.0
* Contrl Options: APIs, AT Commands
* Voltage: 1.8V
* Active Antenna Control: 4 pin
* Dynamic Power Control: 1 pin
* Interfaces: "USB 3.0, USB 2.0 High Speed"
* SIM interface: 2 x 1.8v or 3v
* Audio: PCM/I2S**
Other interfaces: Main Radio Disable, GNSS Disable, Flash LED Output, Wake on WAN, Reset
* Dimensions: 42 x 30 x 2.3 mm
Origin:CN(Origin)
Wireless Protocol:LTE
Kind:Internal
Application:Laptop
Model Number:EM7430
Package:Yes
Interface Type:M.2
Card Type Device:4G Card
Type:wireless
Transmission Rate:300Mbps
EM7430 FDD/TDD LTE 4G WCDMA GNSS for Lenovo Laptop
FRU 01AX737
T470S Notebook(20HG)
X1C Gen5 Notebook(20HQ)
Lt 10 Tablet (20L3)
Package: 1X 4G Card
2 PCS NGFF IPEX 4 Antennas
EM7430 Technical Specifications:
* Category: 4G Module
* Manufacturer: Sierra Wireless
* Chipset: MDM9230
* Form Factor: PCIe M.2
* Pins: 52-pin
* Frequency bands
- LTE FDD: Band B1, B3, B5, B7, B8, B18, B19, B21, B28, B38, B39, B40, B41
- UMTS/HSPA+: B1, B5, B6, B8, B9, B19
- TD-SCDMA B39
* Technologies: UMTS,HSDPA,HSPA+,LTE
* Max Download Speed: 300 Mbps
* Max Upload Speed: 50 Mbps
* Temperature: -10 º C to 55 º C
* Certifications/Regulatory: Planned: JRF/JPA, NCC
* Carriers Approved: Planned: docomo, Telstra
* Connectors: Aux/GNSS, GNSS
* Satellite Systems: GPS, Glonass, Beidou, Galileo
* Modes: Standalone, SUPL 2.0, XTRA 3.0
* Contrl Options: APIs, AT Commands
* Voltage: 1.8V
* Active Antenna Control: 4 pin
* Dynamic Power Control: 1 pin
* Interfaces: "USB 3.0, USB 2.0 High Speed"
* SIM interface: 2 x 1.8v or 3v
* Audio: PCM/I2S**
Other interfaces: Main Radio Disable, GNSS Disable, Flash LED Output, Wake on WAN, Reset
* Dimensions: 42 x 30 x 2.3 mm
