Rectangle-shaped All-in-one UART Capacitive Fingerprint Sensor for Raspberry Pi/STM32

  • Rectangle-shaped All-in-one UART Capacitive Fingerprint Sensor for Raspberry Pi/STM32
Overview
Specs
Reviews
avatar

Any questions? Our AI beta will help you find out quickly.

Demo Board Type:ARM
Certification:CE
Origin:CN(Origin)
Model Number:2.23inch OLED HAT

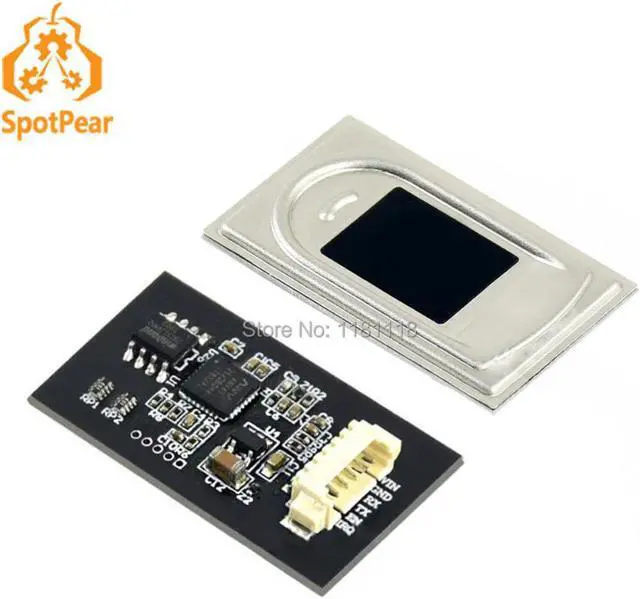

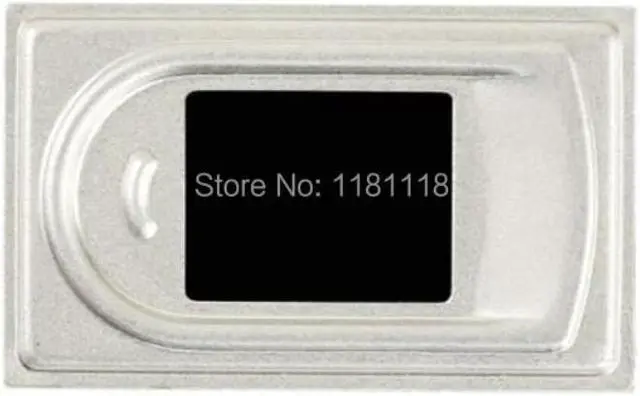

Rectangle-shaped All-in-one Capacitive Fingerprint Sensor, Small Form Factor, UART, Integrated Fingerprinting Algorithm
Overview
This is a highly integrated rectangle-shaped all-in-one capacitive fingerprint sensor module, which is designed in small form factor. The module is controlled via UART commands, fairly easy to use. It's advantages includes fast verification, high stability, and low power consumption, etc.
Based on a high performance Cortex processor, combined with high-security commercial fingerprinting algorithm, the
UART Fingerprint Sensor (R)
features functionalities like fingerprint enrolling, image acquisition, feature finding, fingerprint matching, and so on. Without any knowledge about the complicate fingerprinting algorithm, all you need to do is just sending some UART commands, to quickly integrate it into fingerprint verification applications which require small size and high precision.
Features
Easy to use by some simple commands, you don't have to know any fingerprint technology, or the module inter structure
Commercial fingerprinting algorithm, stable performance, fast verification, supports fingerprint enrolling, fingerprint matching, collect fingerprint image, and upload fingerprint feature, etc.
Capacitive sensitive detection, just touch the collecting window lightly for fast verification
Hardware highly integrated, processor and sensor in one small chip, suit for small size applications
Embedded human sensor, the processor will enter sleep automatically, and wake up when touching, lower power consumption
Onboard UART connector, easy to connect with hardware platforms like STM32 and Raspberry Pi
Specifications
Sensor type: capacitive touching
Resolution: 508DPI
Image pixels: 192×192
Image grey scale: 8
Sensor size: 11.2mm × 12.2mm
Module size: 20.2mm × 33.3mm
Fingerprint capacity: 3000
Matching time:
False acceptance rate:
False rejection rate:
Operating voltage: 2.7~3.3V
Operating current:
Sleep current:
Anti-electrostatic: contact discharge 8KV / aerial discharge 15KV
Interface: UART (TTL level)
Baudrate: 19200 bps
Operating environment:
Temperature: -20°C~70°C
Humidity: 40%RH~85%RH (no condensation)
Storage environment:
Temperature: -40°C~85°C
Humidity:
Applications
Fingerprint lock
Fingerprint safe deposit box
Access control system
Clock in and out
Package Contains
UART Fingerprint Sensor (R) x1
6PIN squid wire x1
