Waveshare Electronic Ink Screen 7.5-Inch E-Paper Full-Fit Screen Global Refresh Black And White Two-Color E-Ink Ink Screen

Demo Board Type:ARM
Origin:CN(Origin)
ROM Capacity:None
Model Number:
Certification:NONE

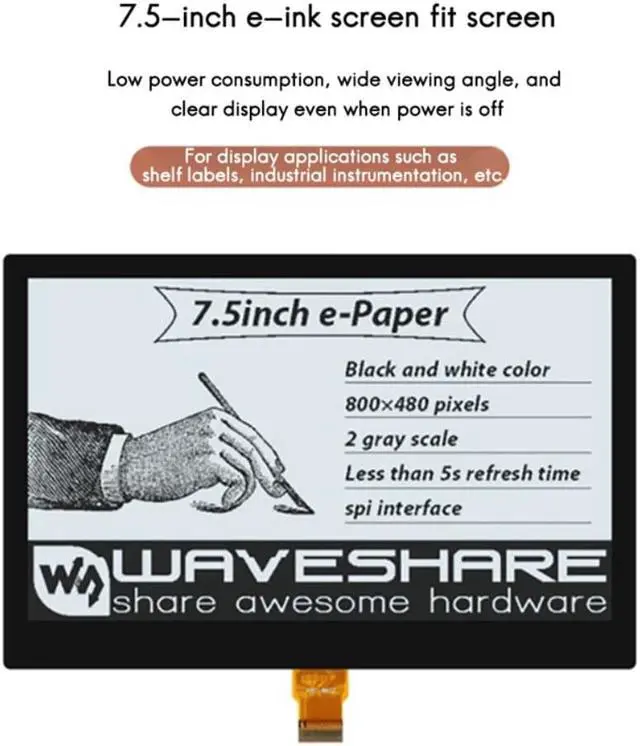

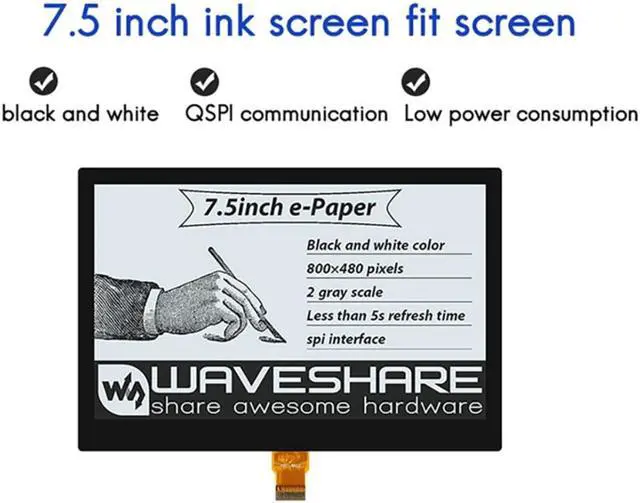

Waveshare Electronic Ink Screen 7.5-Inch E-Paper Full-Fit Screen Global Refresh Black And White Two-Color E-Ink Ink Screen
1. The electronic ink screen can clearly display the picture under ambient light such as light, natural light, etc., without backlight, the viewing angle is almost 180°, and the display content of the last screen can be maintained for a long time when the power is off.
2. The power consumption is very low, and basically only consumes power when refreshing
3. Anti-glare tempered glass, using anti-glare technology, can reduce the interference of ambient light, reduce screen reflection, make the image clearer, and significantly improve the display effect
4. Fully laminated technology panel, compared with traditional screen technology, the fully laminated screen is thinner, and the tempered glass panel can better protect the screen. And it comes with adhesive, which can be added to your project more flexibly
5. Application scenarios: suitable for shopping mall price tags, asset equipment tags, electronic shelf tags, conference name tags, etc.
Specification:
Product name: Electronic ink screen
Working voltage: 3.3V
Communication interface: 3 wire SPl, 4 wire SPl
Gray level: 2
Dimensions:177.2x118.2mm
Global refresh: 5s
Refresh power consumption: 26.4mW(typ.)
Point distance: 0.205x0.204mm
Sleep current: Less than 0.01uA (close to 0)
Resolution: 800x480 pixels
Viewing angle: greater than equal 170°
Material:plastic
colour:Black
Package Contents:
1 x Ink screen
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
