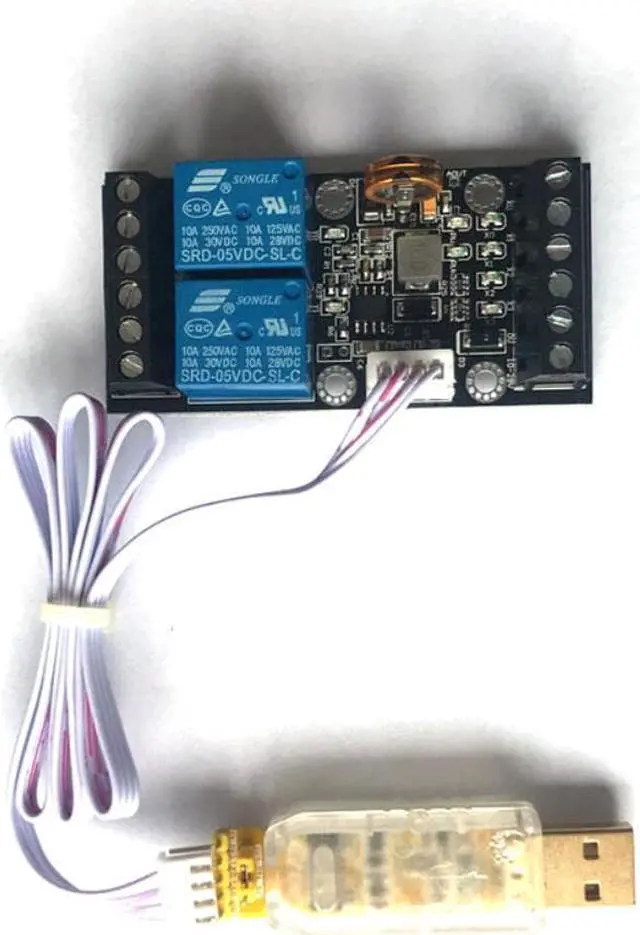

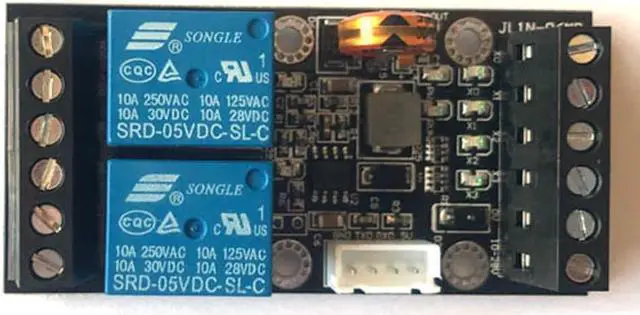

PLC FX1N-06MR Industrial Relay Module Delay Module with Programming line

Origin:CN(Origin)
Certification:NONE

Specification:
Model FX1N-06MR
Product Name: Industrial Control Board
Output type: relay output
Input points: 4 points
Output points: 2 points
Supply voltage: 4VDC
Output current: DC 24V AC 220V
Analog input: 1AD
Analog output: 1DA
Memory capacity: 2000 step stepper motor support
Connect text screen: support
Connect the touch screen: support
Programming software: GxDeveloper GX Works2
Programming mode : RX programming software GX Developer or GX Work2 programming ladder.
Mitsubishi GX-Developer8.52 Chinese programming software download address: pan.baidu.com/s/1nty5XXn
PLC data download address: pan.baidu.com/s/1eRNhn3O
* Input high-speed pulse C235, C251C is compatible with Mitsubishi FX1N.
*Y0 Y1 can send up to 10K pulses, and the function is compatible with Mitsubishi FX1N.
* Input point is 1C type SRD relay output, rated current is 5V, wide supply voltage 10-28DC, can directly drive DC solenoid valve, AC solenoid valve, AC contact solenoid valve, AC contactor, AC motor and so on.
Precautions for use:
1. When the computer uses Mitsubishi GX Deveioper programming software, it needs to be connected to this programming port by using USB-TTL level conversion board.
2. The board has one AD built in, corresponding to the internal data register D5030; one DA, corresponding to the internal data register D5101, when the two channels of AD are needed, the DA can be changed to AD. When D5080 is 1, the DA changes at this time. For AD, the AD signal is input from the DOU-T pin signal. The input range is 0-3.3V. To change to 0-10V, add 2 resistors (10K 5.1K) to divide the voltage. Adding a statement MOV K1 D5080 to the program will convert the DA to AD and the AD data register to D5032.
3. When the PLC is connected to the touch screen or text, an external 232-TTL module is required to connect.
Xiao Yan: Some customers report that the download process is slower. The default download program length is 8000. Actually, most customers write programs that do not exceed 2000 steps. Therefore, you can set the download speed in GX or WORKS software. Increase the magnification. Setting method: After the + sign in the data list of the program data, the PLC parameter will appear. Double-click the PLC parameter to display the setting interface. In the parameter setting interface, the memory capacity can be set from 2000 to 2000.
This product currently supports command set
Basic sequence instructions: LD, LDI, OUT, AND, ANI, OR, ORI, LDP, LDF, ANDP, ANDF, ORP, ORF, ORB, ANB, MPS, MRD, MPP, MC, MCR, INV, PLS, PLF , SET, RST, OUT, RST, NOP, END, CALL, CJ, FEND, SRET, STL, RT
Data processing instructions: ZRST, DECO, ENCO, ADD, SUB, MUL, DIV
High-speed processing instructions: SPD, PLSY, PWM, PLSR, HSCS, HSCR
Positioning command; PLSV, DRVI, DRVA
Convenient instructions: ALT, INCD
Contact comparison instruction: LD=, LD>, LD
, LD , LD , AND=, AND>, AND
, AND , AND , OR=, OR>, OR
, OR, OR
All instructions support 32-bit instructions and trigger instructions
