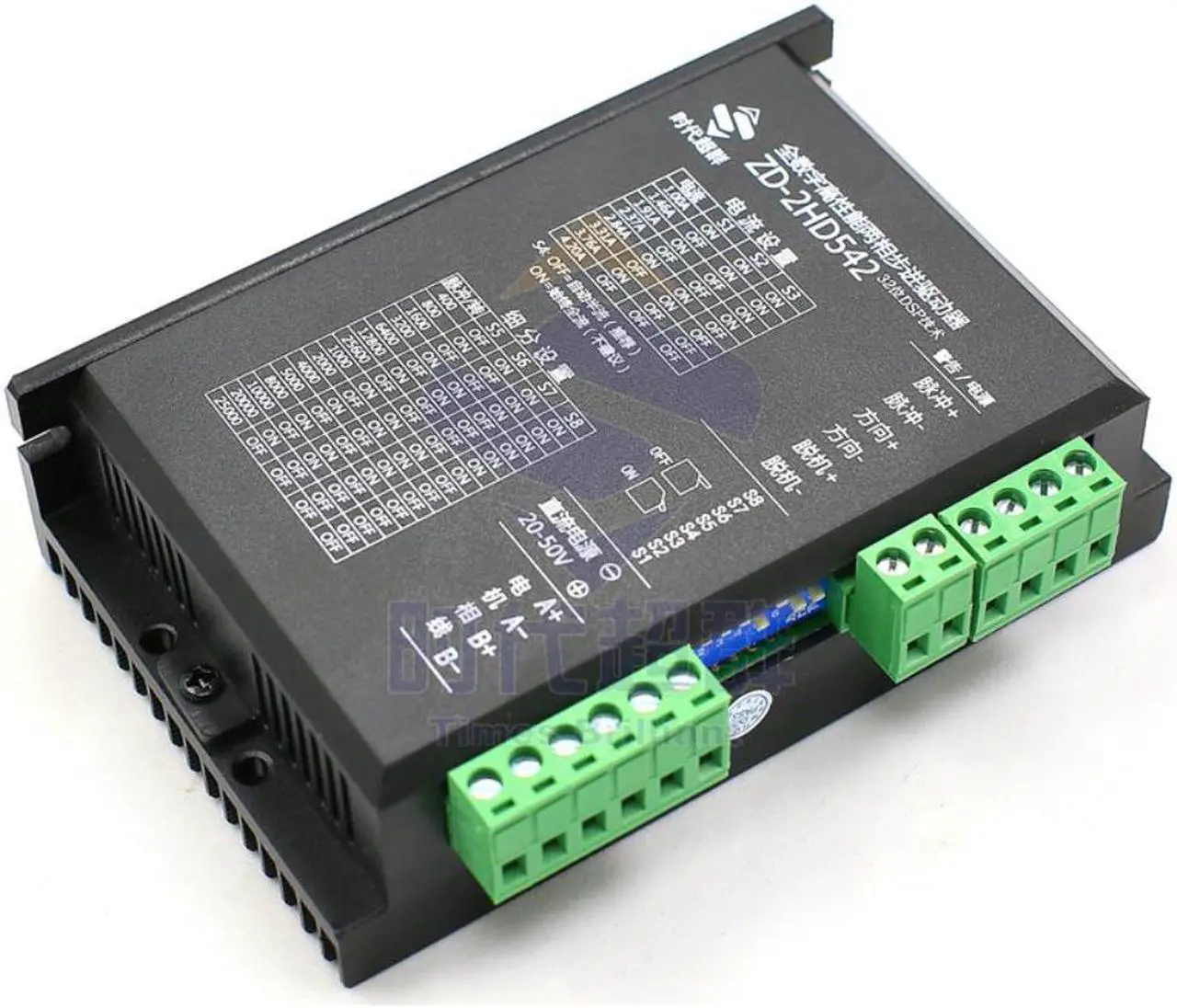

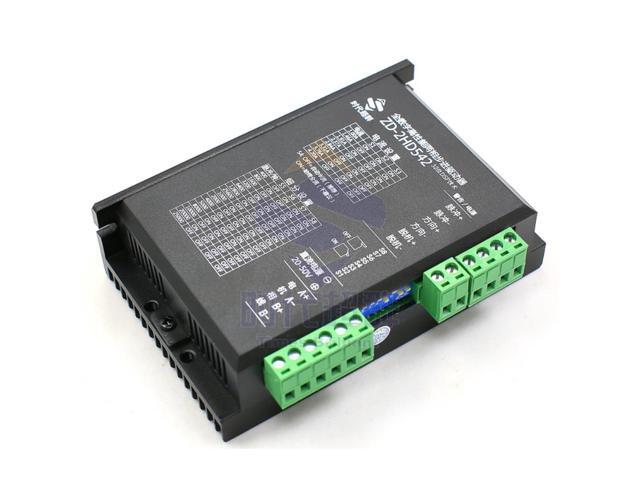

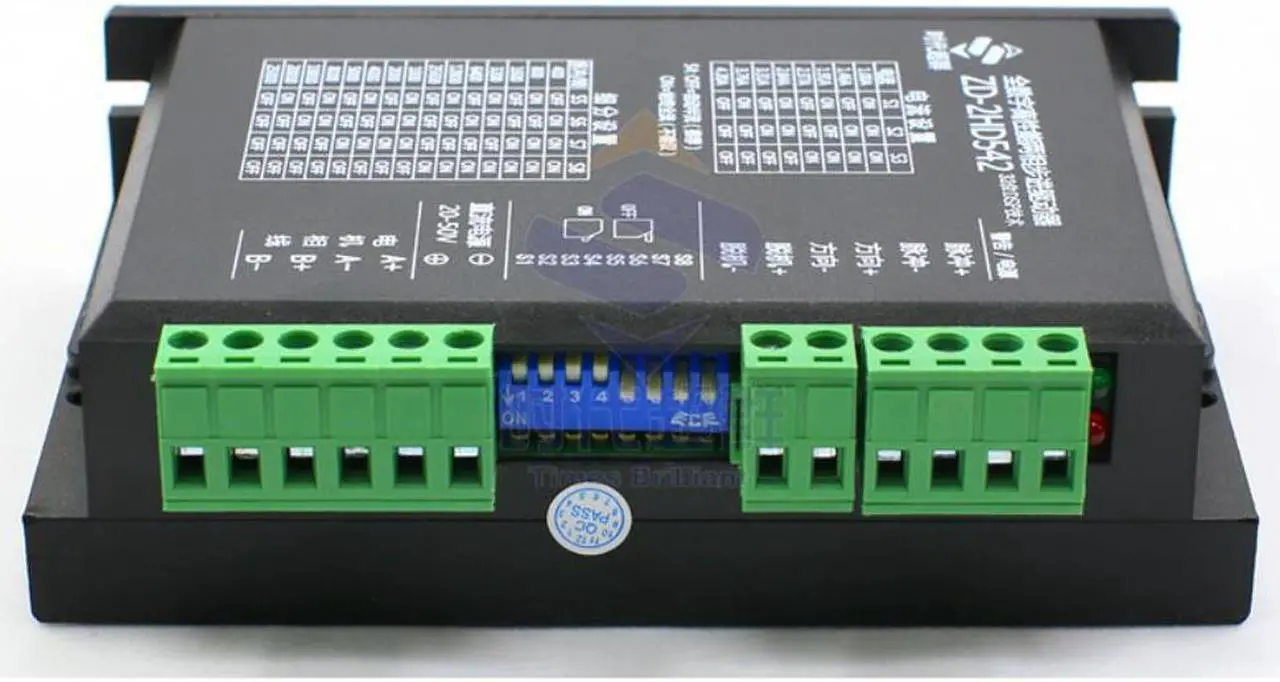

57/86 2-phase stepper motor driver ZD-2HD542 128 subdivision DM542 motor driver

Motor Type:Stepper Motor

57/86 Stepper Motor Driver ZD-2HD542 Motor Controller 128 Microstep VS DM542
Features:
- Supply voltage up to 50V
- Maximum output current can reach 4.2A(mean 3.0A)
- Three-state current control technology with low heating
- Automatic halving of static current 0.4 S to 60 %
- Two-phase stepper motor with 4, 6, 8 lines
- Optical isolation differential signal input, maximum pulse response frequency up to 200 KHz
- Subdivision accuracy 2,4,5,8,10,16,20,25,32,40,50,64,100,125,128 optional
- Small size(118 x 75.5 X 34mm)
- Convenient current setting, optional at eight
- Four dials for 15 steps
- Protection functions such as overpressure, short circuit etc..
- Bipolar constant current PWM driver output
- Suitable for all kinds of small and medium scale automation equipment and instruments, such as engraving machine, medical creep pump,
- Label striking machine, cutting machine, laser photo arrangement, plotter, CNC machine tool, automatic assembly equipment
- Wait a minute. It works well in devices where users expect small noise and high speed
II. Electrical, mechanical and environmental indicators
1. Electrical indicators
4. Strengthening heat dissipation
(1) The reliable working temperature of the actuator is usually within 60 and the working temperature of the motor is
Within 80 °C;
(2) It is recommended to choose an automatic half current mode when using and to reduce the current automatically when the motor stops
60 % to reduce heating of motors and drives;
(3) When installing the drive, use vertical side mounting to make the heat dissipation teeth stronger
Air convection; When necessary, install fans near the drive to ensure forced heat dissipation
The drive works within a reliable operating temperature range.
