AD9833 full touch screen signal generator DDS signal source point frequency sweep frequency TFT touch

DIY Supplies:ELECTRICAL
Display Size:2.9 Inches & Under
Model Number:AD9833

Frequency stimulation / waveform generation
Liquid and gas flow measurement
Sensor applications: proximity, motion and defect detection
Line loss / attenuation
Testing and medical equipment
Scan / Clock Generator
Time domain reflectometry (TDR) applications
Module features


1. Power supply voltage: Type c interface power supply [email protected]

2. Onboard 25MHZ active crystal oscillator with stepping accuracy of 0.1HZ can be connected to an external input clock through a tee

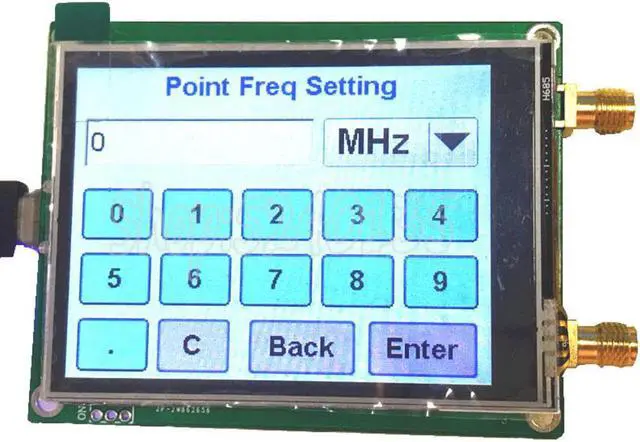

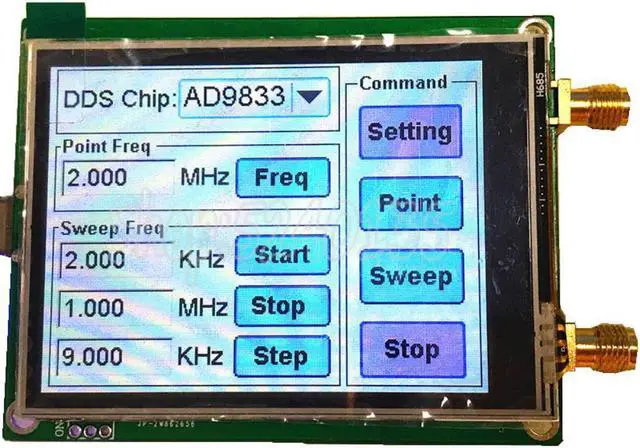

      3.It can realize point frequency and frequency sweep work, full touch screen operation
4. Output waveform: sine wave triangle wave and square wave can be set.
      5. Output amplitude: sine wave and triangle wave are about 0.6Vpp (the amplitude can be amplified by an external amplifier), and the high end of the frequency drops slightly;
                   Square wave about 3Vpp
      6. Output impedance: 200R.
It is recommended to add a buffer amplifier when loading
      7. Output frequency: sine wave about DC-3MHz; square wave and triangle wave about DC-1MHz
      8. Output and external clock interface: SMA female seat (outer screw inner hole)
      9. The man-machine interface has three interfaces: main display, setting interface, and keyboard interface.
            Full touch control
      10. Can communicate with PC through TYPE C interface and provide upper computer software
