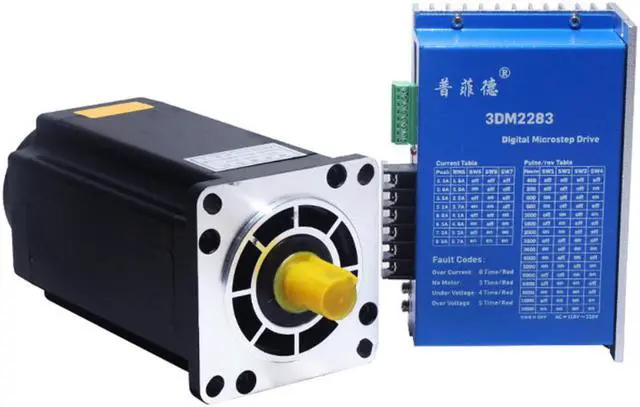

110 three-phase stepper motor set 220V 110BYG350D torque 20N M + driver 3DM2283
- 110 three-phase stepper motor set 220V 110BYG350D torque 20N M + driver 3DM2283
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Certification:ROHS
110 stepper motor set parameters:
Motor model parameters
: 110BYG350D
Speed
:
Torque drops above 200 rpm in one minute, maximum 500-600 rpm
Body length
: 220mm
Output torque
: 20Nm
Output shaft diameter
: 19MM output
mode
: single
output
shaft
Motor current
: 6.8A
Motor temperature resistance
: below 85 degrees
Outlet method
: Three-phase three-wire (red wire to U, white
wire to V, green
wire to W
)
The enameled wires inside the motor are all 180 ° high temperature resistant; higher than 120 ° on the market.
Low resistance,
using n35sh magnetic steel; high temperature resistance; strong magnetic force.

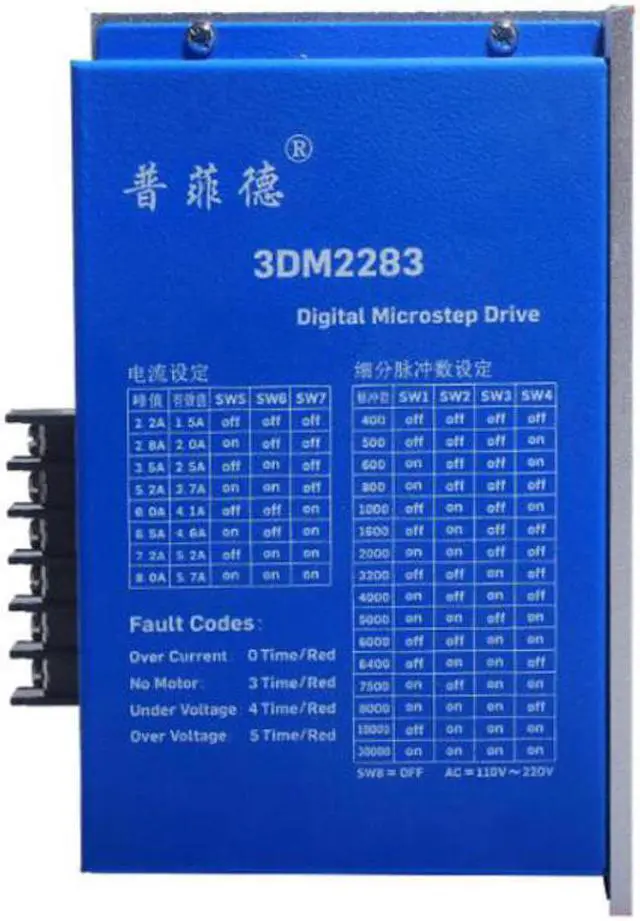

2: Drive parameters
Driver parameter model
: 3DM2283
Pulse signal
: 3.3V / 5V / 24V compatible.
No need for channeling resistance
Input voltage
: AC (alternating) 220V adapts to harsh power grid environment
Segment settings
: 400-30000 segments
Microstep is divided into 16 types, the number of steps is 30,000 steps / revolution; the current range is 2.0A-8A, with half current, over voltage, over current and other protection circuits.
This driver is AC-powered and has an operating range of 220VAC
.
110 stepper motor set parameters:
Motor model parameters
: 110BYG350D
Speed
:
Torque drops above 200 rpm in one minute, maximum 500-600 rpm
Body length
: 220mm
Output torque
: 20Nm
Output shaft diameter
: 19MM output
mode
: single
output
shaft
Motor current
: 6.8A
Motor temperature resistance
: below 85 degrees
Outlet method
: Three-phase three-wire (red wire to U, white
wire to V, green
wire to W
)
The enameled wires inside the motor are all 180 ° high temperature resistant; higher than 120 ° on the market.
Low resistance,
using n35sh magnetic steel; high temperature resistance; strong magnetic force.
2: Drive parameters
Driver parameter model
: 3DM2283
Pulse signal
: 3.3V / 5V / 24V compatible.
No need for channeling resistance
Input voltage
: AC (alternating) 220V adapts to harsh power grid environment
Segment settings
: 400-30000 segments
Microstep is divided into 16 types, the number of steps is 30,000 steps / revolution; the current range is 2.0A-8A, with half current, over voltage, over current and other protection circuits.
This driver is AC-powered and has an operating range of 220VAC
.
