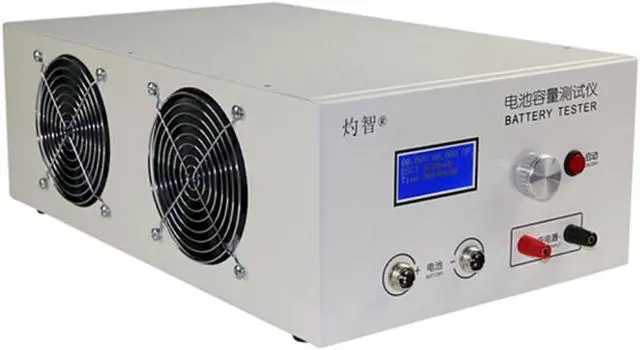

EBC-B20H 12-72V Lithium Lead-acid Capacity Tester Discharge Meter 20A Can Be Connected to an External Charger

Origin:Mainland China

modname=ckeditor
Software download link: www.zketech.com
Operation video example:
//v.youku.com/v_show/id_XMjgzNzMxNTc1Mg==.html?spm=a2h0k.8191407.0.0
EBC-B20H is a capacity tester for packs. It is suitable for pack capacity testing in the range of 12V-72V. It has built-in discharge load resistance, supports external pack chargers, automatically switches between charge and discharge, and supports computer online drawing curves. .
There are also 20a discharge specifications for 36v-108v packs, please contact customer service

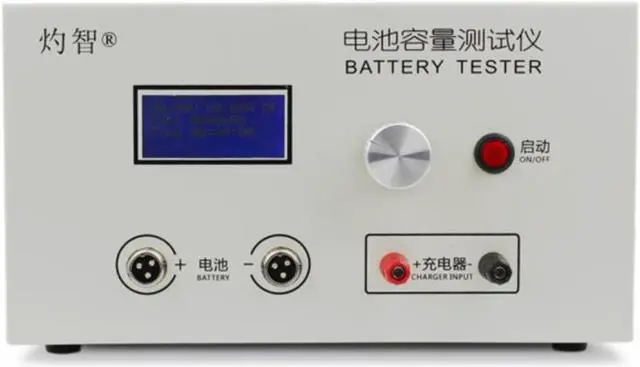

1. For discharge test, connect the pack to the "" port of the tester through a wire clamp.
2. For charging test, in addition to connecting the pack, you also need to connect the output terminal of the charger with the pack to the "charger" interface of the tester. When the tester starts in the charging mode, the charger output is internally connected to the . It is switched on for charging. When it is detected that the charging current is less than the set value, it is judged to be fully charged and the charging is switched off. (The tester does not control the charging current and voltage, but only performs detection and on-off control
).
3. Automatic charging and discharging, the tester supports up to 5 steps, each step can be charging mode (requires an external charger) or discharging mode. The charge and discharge test can be performed automatically by setting multiple steps.
When connected to a computer, it can be started by software control, and the voltage and current curves can be recorded.
