Wireless wifi Half Mini PCI-E Card AR5B95 AR9285 BGN PCI-E 802.11b/g/n WIFI Network Express Card

condition:Used
Certification:NONE,None
Package:No
Applicable Network Type:Ethernet
Transmission Rate:150Mbps
Origin:Mainland China
Lan Transmission Rate:Ethernet
Type:Wireless
Interface Type:Mini PCI-Express
Wi-Fi Supported Frequency:2.4G
Model Number:AR9285
Kind:Internal
Wireless Protocol:802.11n
Adapter Socket:Mini PCI-E

Condition: Used, Test before ship out!
Description:

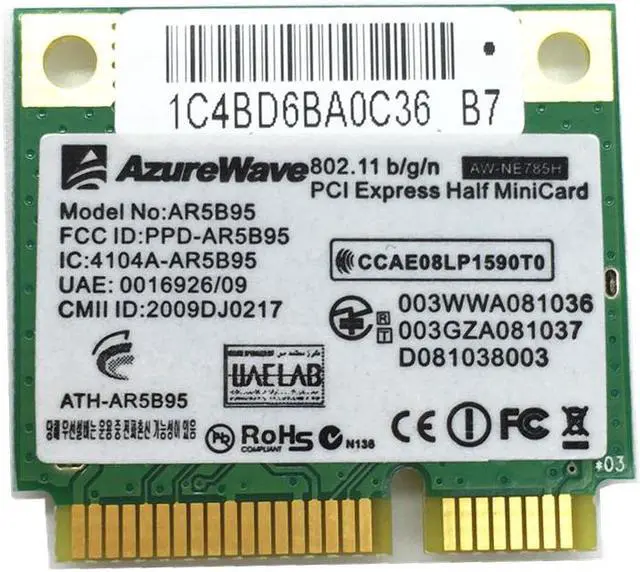

Model: AR5B95 AR9285
Brand: Atheros
150M
This module is compatible with ALL laptops that have a Half mini PCI internal slot
except for IBM, for HP machines
.
The AR9285 single-chip PCI Express solution features Atheros Align technology which leverages the 802.11n 1 stream specification to provide the optimal upgrade path from legacy 802.11 solutions.
The single-stream feature enables a class of Wi-Fi devices that deliver performance enhancements over the existing 802.11g technology, at comparable price points.
Align solutions are forward compatible to higher-performance, multi-stream, MIMO based 802.11n, and are available in reference designs to serve the networking, PC and consumer electronics markets.
Note:  The card only have one connector, But the fuction is same as the two connector card.

Package Includes:
1 x
AR9285 Card
