With 6Dbi Dual Band Antennas 9260 9260NGW 802.11ac 1730Mbps WiFi Support Bluetooth 5.0 NGFF/M.2 Card Set for desktop

Transmission Rate:1730Mbps
Certification:NONE
Origin:Mainland China
Kind:External
Type:Wired
Lan Transmission Rate:1000M Ethernet
Wireless Protocol:802.11a/g
Adapter Socket:NGFF
Interface Type:NGFF
Wi-Fi Supported Frequency:2.4G & 5G
Transmission Speed:1200 Mbps
Package:Yes
Applicable Network Type:Gigabit Ethernet
Model Number:9260 with 6dbi antenna

Chipest Brand:Intel
Model: 9260NGW
Interface: NGFF Key E (M2:CNVio)
Dual band:2.4Ghz/5Ghz(160Mhz)
Speed up to 1730Mbps (The router must on 160Mhz)
Bluetooth: Bluetooth 5.0
Networking Specifications
Max Speed:1.73Gbps ,Note:The router support 1730Mbps,and can change to 160Mbps.
Compliance:FIPS, FISMA
Board Form Factor: M.2 2230 or M.2 1216
System Interface Type:PCIe, USB
Wi-Fi Alliance:
Wi-Fi CERTIFIED* a/b/g/n/ac with wave 2 features, WMM*, WMM-PS*, WPA*, WPA2*, WPS2*, Protected
Management Frames, Wi-Fi Miracast* as Source, and Wi-Fi Direct
Only support : Linux*, Google Chrome OS*, Windows 10*
Note: DO NOT Support WinXP & Vista  &  Win7 & win8 & win8.1
Specifications:
and
The item can competible With Router PC WIFI 3G 4G Card etc
6Dbi Antenna Length: 20cm
IPEX MHF4 U.FL Length: 25cm
Support Network: 802.11b, 802.11g,802.11n,802.11ac
Connector: Same as the picture on listing
Flexible WiFi antenna

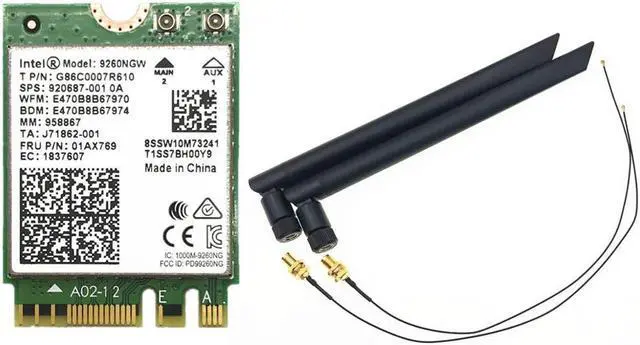

Package includes:
1 x Intel 9260 Card
2 x 6Dbi Antenna
2 x IPEX MHF4 U.FL Cable
