BCM94352HMB 802.11ac 867Mbps Dual-band 2.4&5G AC Bluetooth-compatible 4.0 WiFi Wireless Card for Hackintosh

Transmission Rate:867Mbps
Certification:NONE
Origin:Mainland China
Kind:Internal
Type:Wireless
Lan Transmission Rate:1000M Ethernet
Application:Laptop
Wireless Protocol:802.11ac
Adapter Socket:Mini PCI-E
Interface Type:Mini PCI-Express
Wi-Fi Supported Frequency:2.4G & 5G
Package:No
Applicable Network Type:Gigabit Ethernet
Model Number:BCM94352HMB
Products Status:Stock

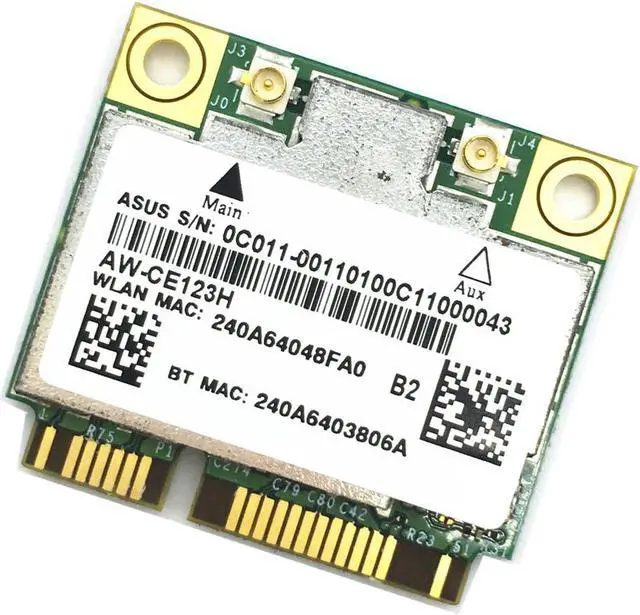

Notice: We have three different label on the card,
AzureWave AW-CE123H
or Broadcom BCM94352HMB
or Black Broadcom
on the lable.
If you need one of it, Don't worry.
Three of them are same model BCM94352HMB.
IF you have any question on the card, pls contact wth me.
Product Features:
High speed wireless connection up to 867 Mbps for Wi-Fi
2 antennas to support 2(Transmit)  2(Receive) diversity technology and Bluetooth
WCS (Wireless Coexistence System)
Low power consumption and high performance
Enhanced wireless security
Fully qualified
Bluetooth-compatible
BT4.0 and BT3.0 + High speed system
Enhanced Data Rate(EDR) compliant for both 2Mbps and 3Mbps supported
Fully speed operation with Piconet and Scatternet support
Electrical compliant to USB1.1 & 2.0
The AW-CE123H IEEE 802.11 a/b/g/n/ac PCIE WIFI with Bluetooth 4.0 + BT3.0 HS class II combo module is a highly integrated wireless local area network (WLAN) solution to let users enjoy the digital content through the latest wireless technology without using the extra cables and cords.
It combines with Bluetooth 4.0 and 3.0 + HS class II and provides a complete 2.4GHz Bluetooth system which is fully compliant to Bluetooth 4.0 and 3.0 + HS and v2.1 that supports EDR of 2Mbps and 3Mbps for data and audio communications.
It enables a high performance, cost effective, low power, compact solution that easily fits onto the PCI Express and USB Combo half mini Card.
Compliant with the IEEE 802.11a/b/g/n/ac standard, AW-CE123H uses Direct Sequence Spread Spectrum (DSSS), Orthogonal Frequency Division Multiplexing (OFDM), BPSK, QPSK, CCK and QAM baseband modulation technologies.
Compare to 802.11n technology, 802.11ac standard makes big improvement on speed and range.
Faster Speed: WLAN up to 867Mbps data rate.
For AW-CE123H module adopts Broadcom BCM4352 and BCM20702 solution. The module design is based on the BCM4352 and BCM20702 solution.
Compatible with:
Not for IBM/Lenovo HP laptop
Packaged Included:
1 x  BCM4352 card
