Laser FTTH Fiber Optic Optical Power Meter Cable Tester cable tester visual fault locator mini handheld

Origin:Mainland China
Item Length:30m
Fiber Type:Single Mode
Connector Type:Hybrid
Model Number:JYD-LJ12
Size:23*16*19
Compatible:Dell Force10,HP,IBM,H3C,Huawei
Certification:CE
Use:Optical Power Meter
Operating Time(h):140 h with 1.5V (3)
Wavelength Range(nm):800~1700nm
Model:JYD-50D-10MW
Connector:FC/SC/ST Interchangeable
Output power:10mW
Measurement Range(dBm):-70~+10dBm
Power supply:2 x AA Alkaline batteries(not included)

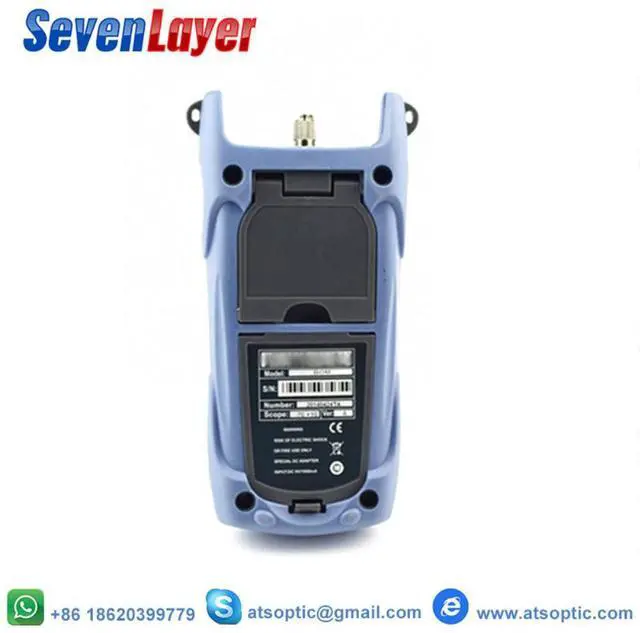

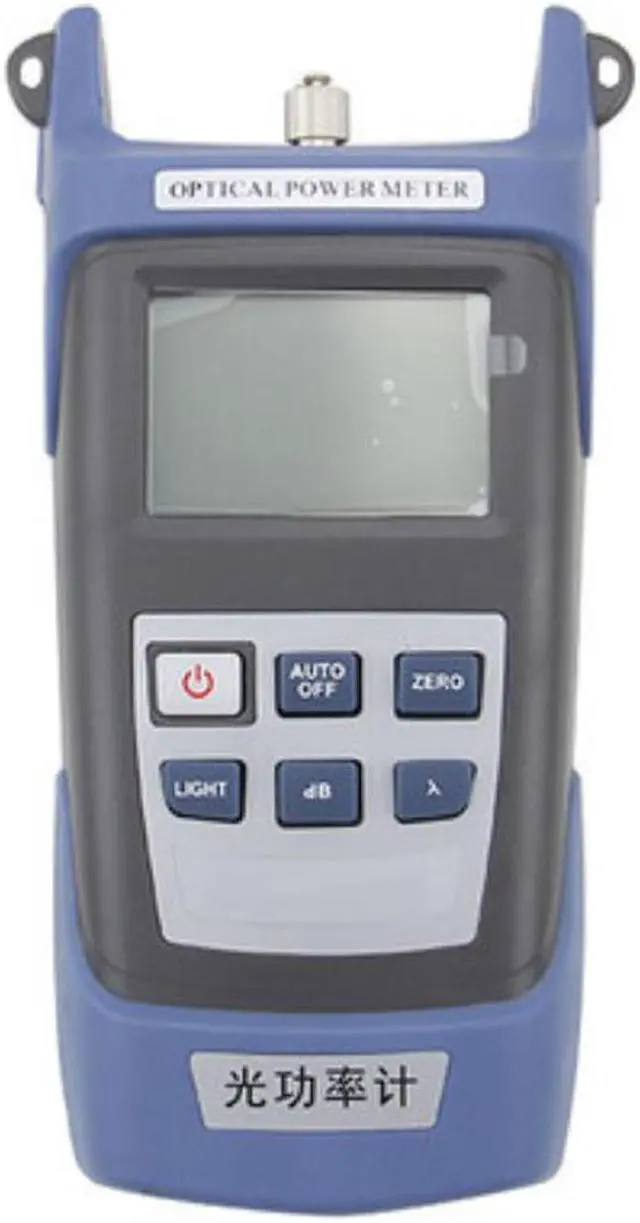

Optical Power Meter Description
This type of Handheld optical power meter is a compact and an easy-to-use testing instrument for optical fiber networks, which can be used for absolute optical power measurements as well as for relative loss measurements in optical fibers.
Features
Supports 6 wavelength Testing
Auto-off function
with Backlight
self calibration
48 hours super long standby time
simple interface
support sc/fc/st interface
working hour over 8 hours without charging
Application
Telecom Maintenance
CCTV Maintenance
Comprehensive cable construction system
Optical instruments research and development
Optical communication education and lab testing
Other optical project
Specifications
Packing List:
Optical Power Meter x1
FC Connector x1
SC Connector x1
