PoE Lightning Adapter 5V Charger Ethernet 802.3af power for Mounted Tablets and IPAD lightning Phone devices Power Only

Certification:CE,FCC,RoHS
Origin:Mainland China
Plug Type:None
Model Number:AF-Lightning
Item Type:Cables
DC Output:Apple Lightning
power source:RJ 45 female connector
Input Voltage Max:Up to 57 volts
Output Voltage no load:5.2V
Output Voltage Max load:5V 10W
Operating Temperature:0°C ~ 50°C
Size:24 x 30 x 80 mm with 20 cm cord
Usage:For Apple devices charging
Isolation:3,000 volt isolation between PoE and power out t


PoE Lightning Adapter 5V Charger Ethernet 802.3af power for Mounted Tablets and IPAD lightning Phone devices Power Only
5V-AF-Lightning
This device provides a low cost solution for delivering power to a LightningÒ device over 328ft
of network cable.
This splitter allows power to be carried on
CAT-5e or CAT-6
network cables using either 802.3af
standard or 48 volt passive PoE. 802.3at switches can also be used but only 12 watts will be
requested. This device is power only no data is supported.
Intended for use with any 802.3af or 802.3at PoE switch this active PoE solution negotiates with
the switch to activate power and provide it to the client device. It is a compact and cost effective power solution.
The PoE switch supplies 48 or 56 volts DC at the source location. The higher DC voltage means the
current is reduced by a factor of 9 compared to 5 volts, and then carried with 90% less loss over the
Ethernet cable from the source, the 5v converter at the remote end allows you to extend the charge
distance for this application up to 328ft or 100 meters.
Specification:
Power source:
RJ45 female connector
DC output:
Apple Lightning
Data :
Not Provided
Data+Power input Pins
1&2 and 3&6 either polarity
( 802.3af mode A or mode B ) 4&5 plus and7&8 minus
Input Voltage Max :
Up to 57 volts
Input Current at 48v:
265 ma input delivers 2 amps out
Output Voltage Max load(5v10w)
: 5v +- 2% at 2 amps 10 watts
Output Voltage no load :
5.2v
Operating Temperature:
0°C ~ 50°C
Size:
24 x 30 x 80 mm with 20 cm cord
Weight:
2.5 ounces
Isolation
 3,000 volt isolation between PoE and power out

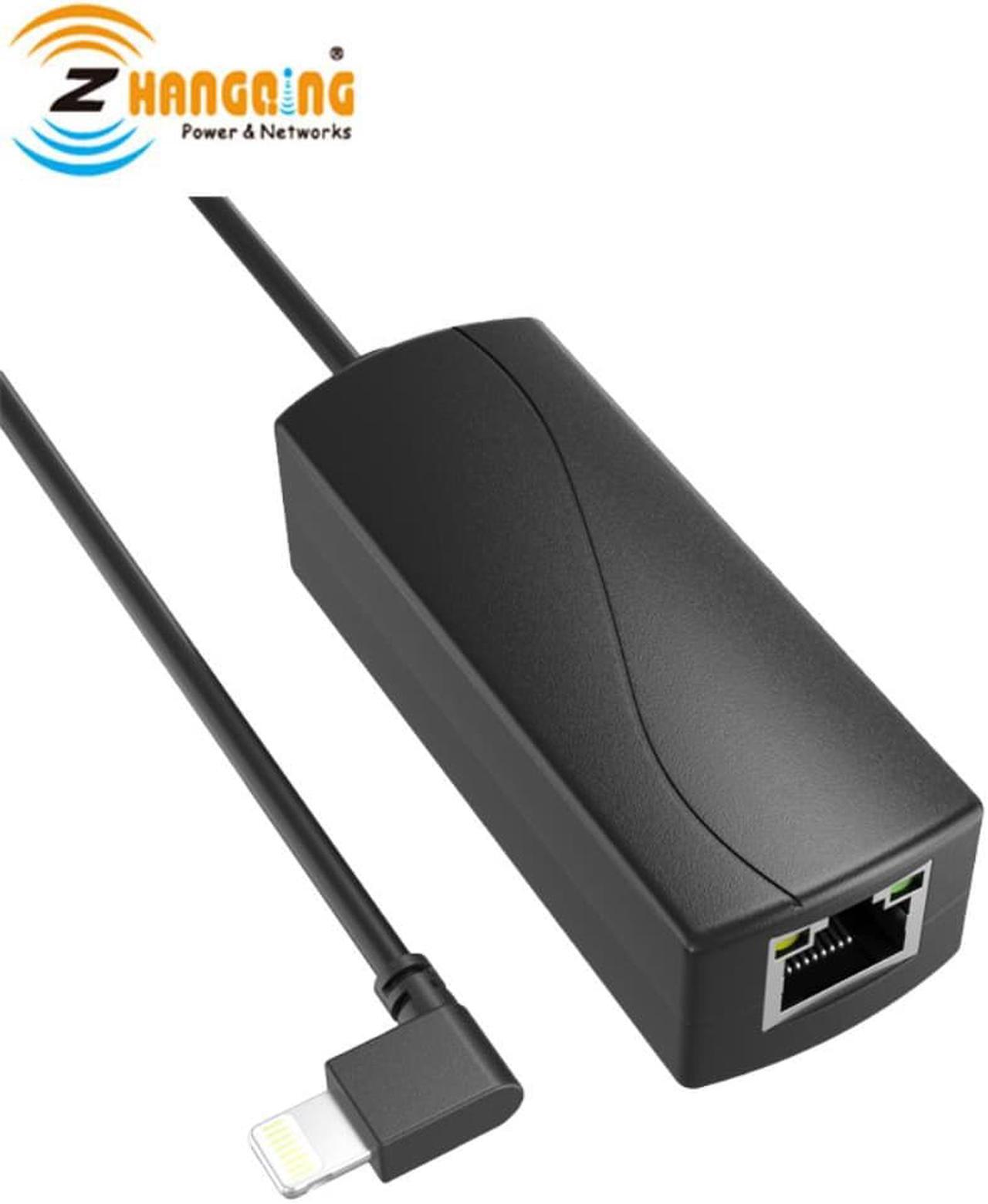

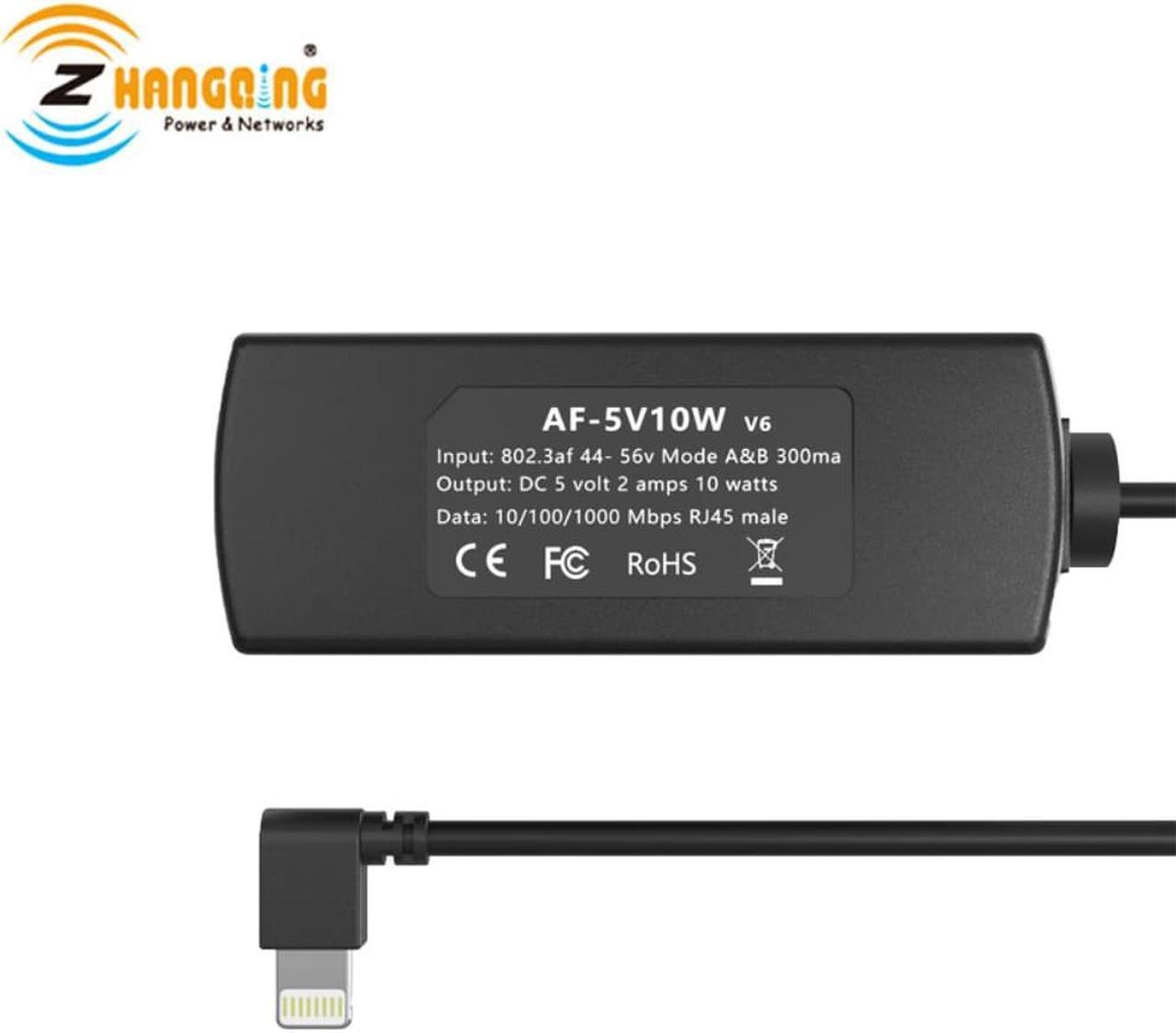

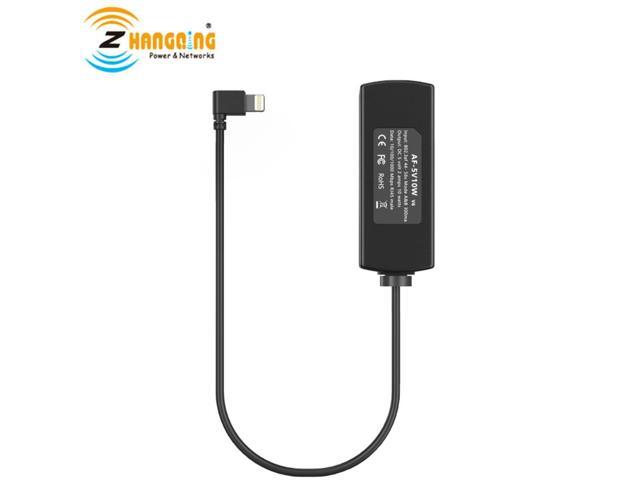

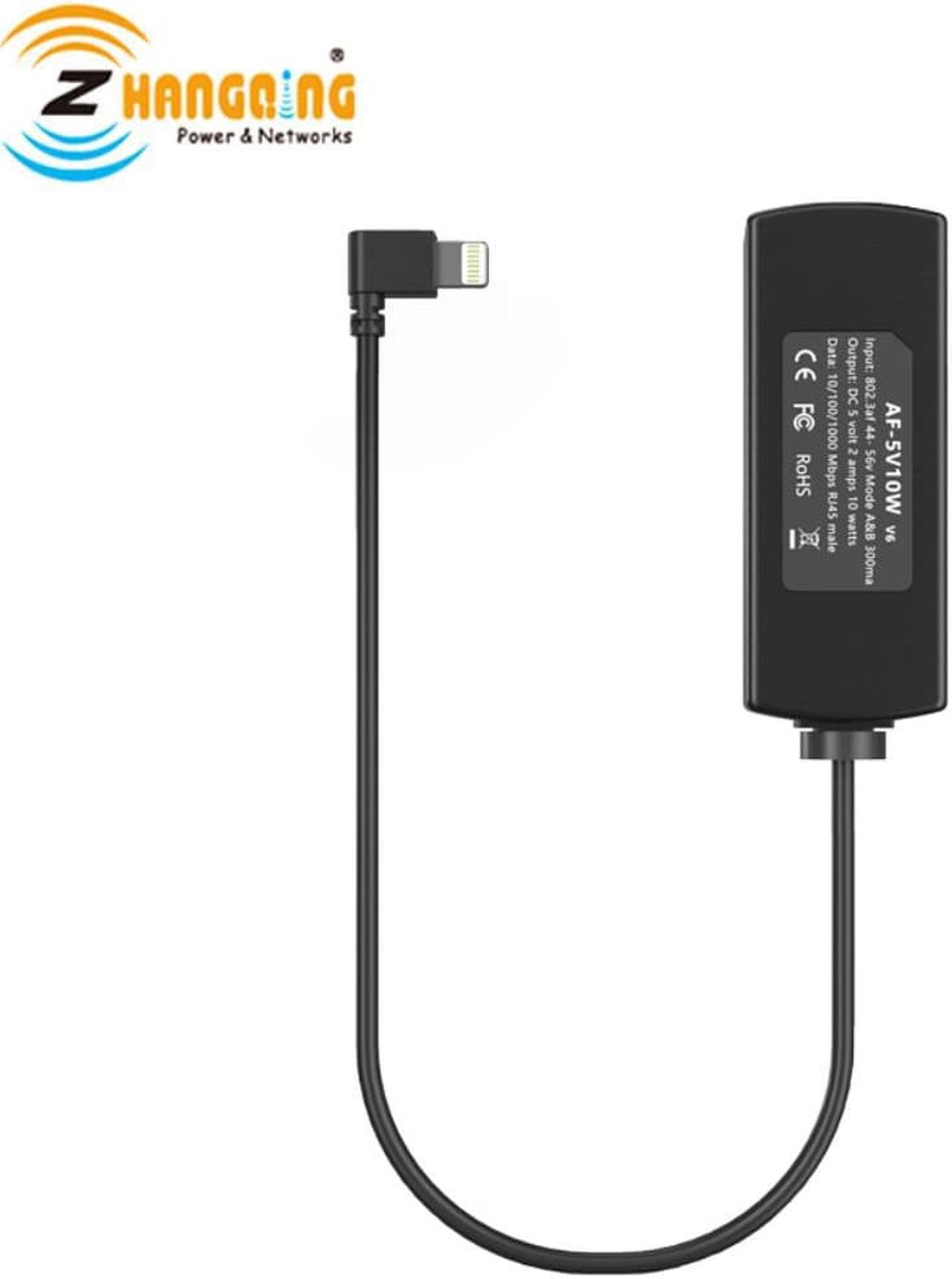

Picture Show
Simple Usage :
Step a) connect your PoE switch to anEthernet cable (
data is not required
)
Step b) use an Ethernet cable to connect the RJ45 female to your PoE switch up to 100 meter
           distance.
Step c) connect the LightningÒ male adapter to your Apple device
Step d) Enable the wifi on the iPad
Step e) Test Charging
The Ethernet cable can be 568A or 568B style, and only 2 pairs (orange and green) are required.
