100M Passive PoE Injector PoE Midspan 12 Port Including 48V 120W Power Supply For Security CCTV Camera

Certification:CE,FCC,RoHS
Origin:Mainland China
Plug Type:UK,EU,AU,US
Model Number:ZQPOEI012-48V 120W
Item Type:POE Injector
PoE Method:Mode B
Power Pins:Mode B: 4,5V+, 7,8V-
DC Plug:12-56V
Advantage:cost effective, flexibility,simplicity
Color:Black
Ethernet rate:10/100M
Connector:RJ45
Warranty:1 year

100M Passive PoE Injector PoE Midspan 12 Port
Including 48V 120W Power Supply For CCTV Camera
10/100Mbps,Mode B,rack mount 12 Port Injector with 48 volt 120 watt power supply
Power IP cameras, desktop phones, WiFi access points, or other low voltage devices through a network data cable using this Power over Ethernet (PoE) injector. The PoE Injector takes power from the 48 volt power supply and adds it to the Ethernet data cable (Cat5, Cat5e, Cat6) to your device.
Save big on network upgrades and device installations
Power over Ethernet delivers power 328 feet from the PoE Injector, eliminating the expense and hassle of installing AC power near your powered device. With this PoE Injector, you can add power to your data cable for a fraction of the cost of upgrading to a PoE capable network switch.
Passive PoE means versatility
. A Passive PoE injector always delivers the same voltage as its power source. Pair this injector with a 48 volt DC power supply to power devices labeled 802.3af, or you can use a 24 volt power supply with 24-volt passive PoE devices like Access Points from Mikrotik, Ubiquiti, and many more.
Simple, Reliable, and Supported By Experts
We design our Power over Ethernet Injectors for simple installation and long life, but sometimes things go wrong. When that happens, please contact us, we will provide the best solution and service for you.
Specification
DC plug input, 12 Lan port, 12 POE port, unshielded
For IP camera, IP phone, WiFi, Access point, etc.
Over current, over voltage protection.
FCC CE RoHS certified.
Wall-mountable
LED indicator:
POWER OFF
--Off
                  0 to 400mA
--Green
                  >400mA
-- Red
Features
·         12 port POE Power Injector Panel
·         12 LAN ports, 12 LAN+Power(POE) ports, unshielded
·         31 watt max each port, resettable fuse on each port
·
Power VOIP phones, IP Cameras, WiFi Access Points, and more PDs
·
Same voltage to all ports
·
2.1mm x 5.5mm for DC plug
·
LED power light
·
Works with any ethernet switch or router, add POE to any switch or router
·
Use any power supply to 48 volts, 24 volt, 12 volt, according to your need
·         Metal case

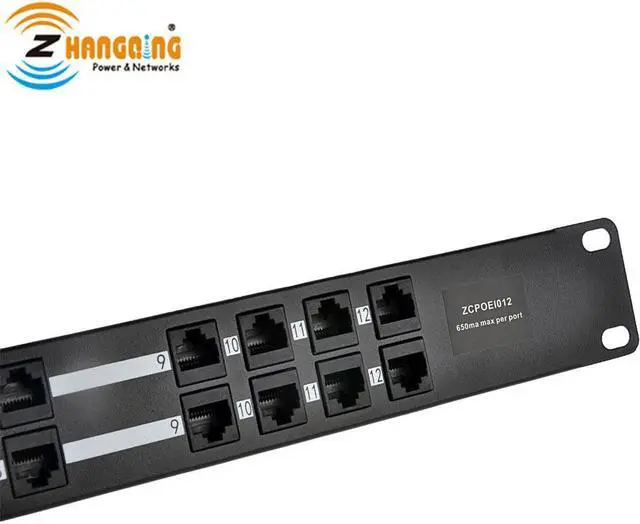

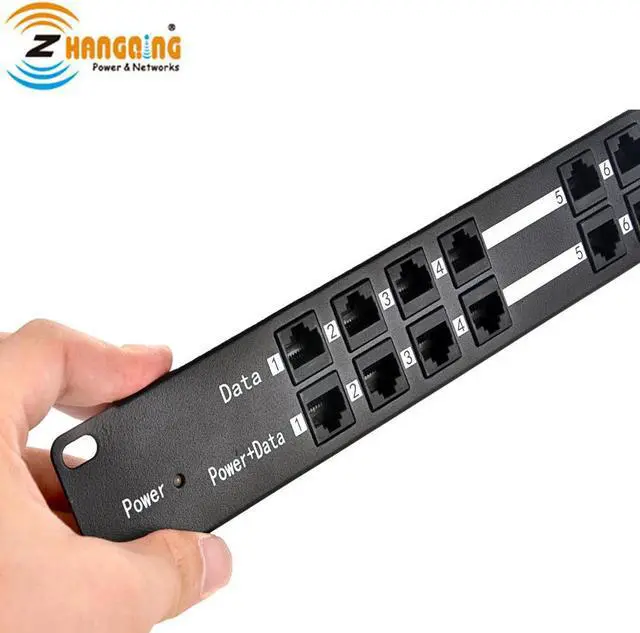

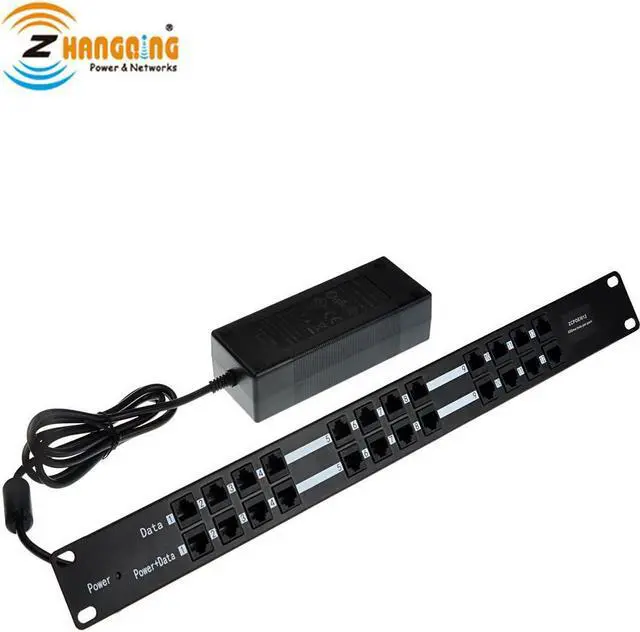

Picture Display
