Gigabit 802.3at 5V 20W POE splitter with Shielded RJ45 light showing Remote USB Power Over Ethernet, With Female USB Output

Certification:CE,FCC
Origin:Mainland China
Plug Type:None
Model Number:GAT-5V 20W
Item Type:POE Spliter
Type:802.3at 5V 20W POE gigabit splitter with Female USB
Data rate:10/100/1000Mbps
PoE standard:IEEE 802.3at
Output:5.2 volts +- 2% at 4 amps, 20 watts
Input:802.3af / 802.3at / passive 44 to 57 volts at 490 mA max
Weight:0.25kg/pc
Certificates:CE& RoHS& FCC


Gigabit 802.3at 5V 20W POE splitter with Shielded RJ45 light showing
Remote USB Power Over Ethernet, With Female USB Output
PoE to 5 volt 4A PoE splitter/converter Gigabit data with Female USB
The 5V 4A splitter works with 802.3af/at Power over Ethernet to provide 5 volt power with up to 20 watts peak output. Use with your existing PoE Switch or Injector to power 5 volt non-PoE devices such as Foscam indoor cameras, iPads, and other tablet computers remotely.
Product specification
Data speed:
10/100/1000 mb/s
Input Voltage :
802.3af / 802.3at / passive 44 to 57 volts at 490 mA max
Output Voltage:
5.2 volts +- 2% at 4 amps, 20 watts
Internal power use :
400 mw ( keep alive 802.3af)
Operating Temperature:
0°C - 50°C
Data:
Transparent
Isolation :
1500 Volts
Size:
107 x 50 x 25 mm
802.3at:
Class 4
PoE Power input Pins:
1&2 and 3&6 either polarity mode A
                                       4&5 + and 7&8 minus mode B
                                       Shielded RJ45
Data output Shielded:
RJ45
Power out DC connector:
2.1 mm x 5.5mm female connector
LED status on Female RJ45 :
Right - Power In active = Green
                                                 Left - Power out active = Amber
Feature
IEEE802.3at/af Complian
10/100/1000Mbps fast Ethernet
Maximum 4A output power
Integral high efficiency DC/DC converter
Low output ripple and noise
High performance with low price
Short-circuit protection
Transformer isolation,1500V isolation (input to output)
Easy to use, with a minimum number of external components
PoE to Apple Lightning adapter with Gigabit data on RJ45 output
Perfect for conference rooms, kiosks, and anywhere else you need a digital display
Charge iPads from your existing PoE switch with these 5 volt Power over Ethernet splitter/converters. Stream data over WiFi or use with an Apple Ethernet to Lightning adapter for wired data.
Place your touch screen display where you want, not where the charging adapter can reach. Normal 5 volt charging cables for tablets wont work efficiently for more than a few feet, but our 5 volt PoE splitters and PoE kits can run for hundreds of feet.

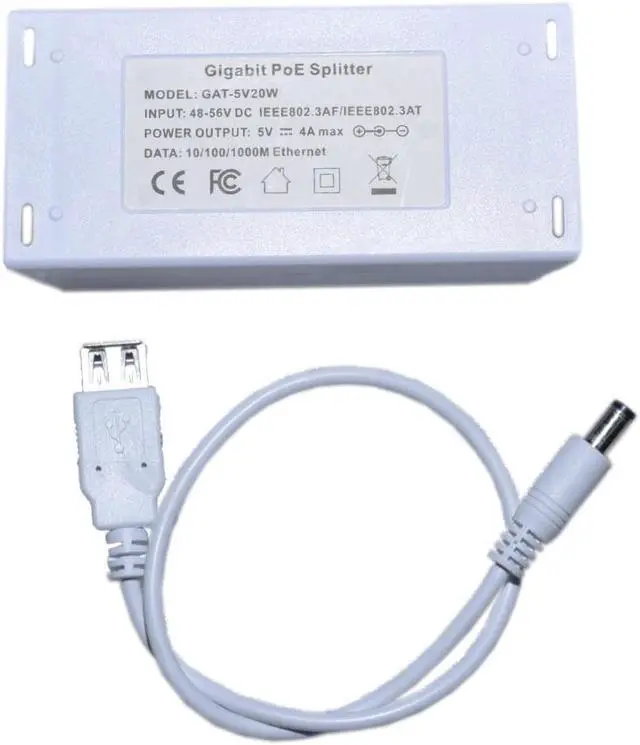

Package
:
1*5V 20W PoE Splitter
1* 2.1*5.5 Male-Female cable

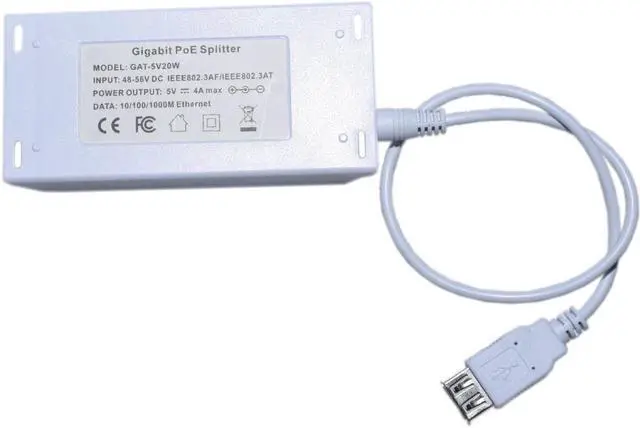

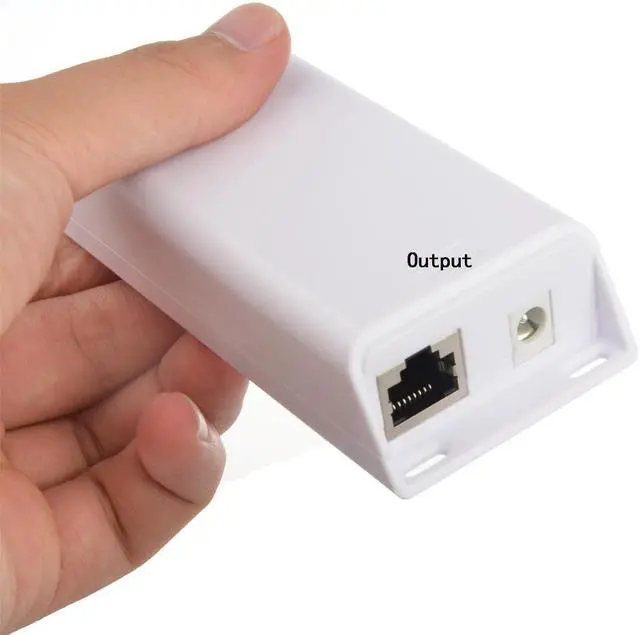

Product Display
