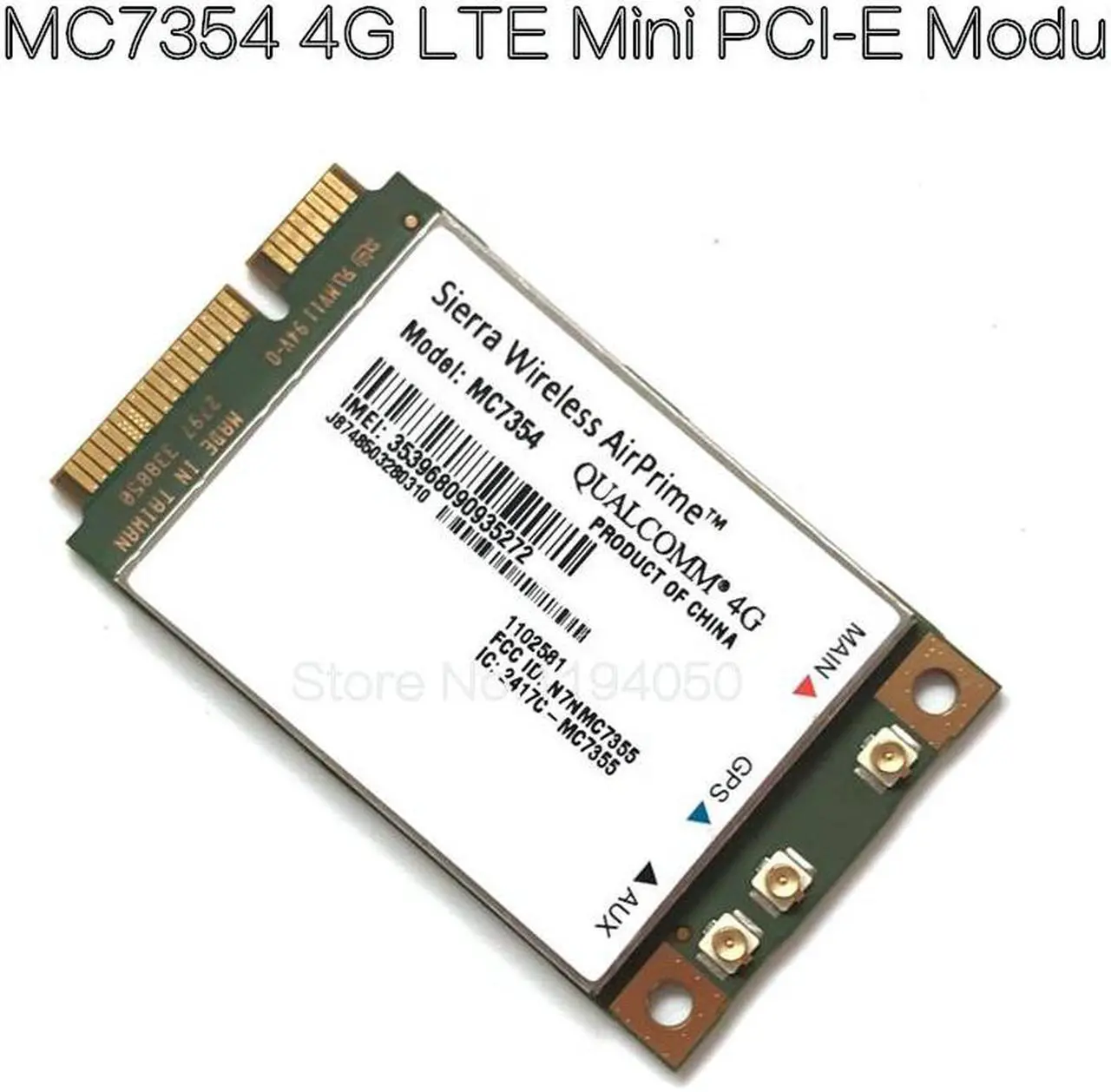

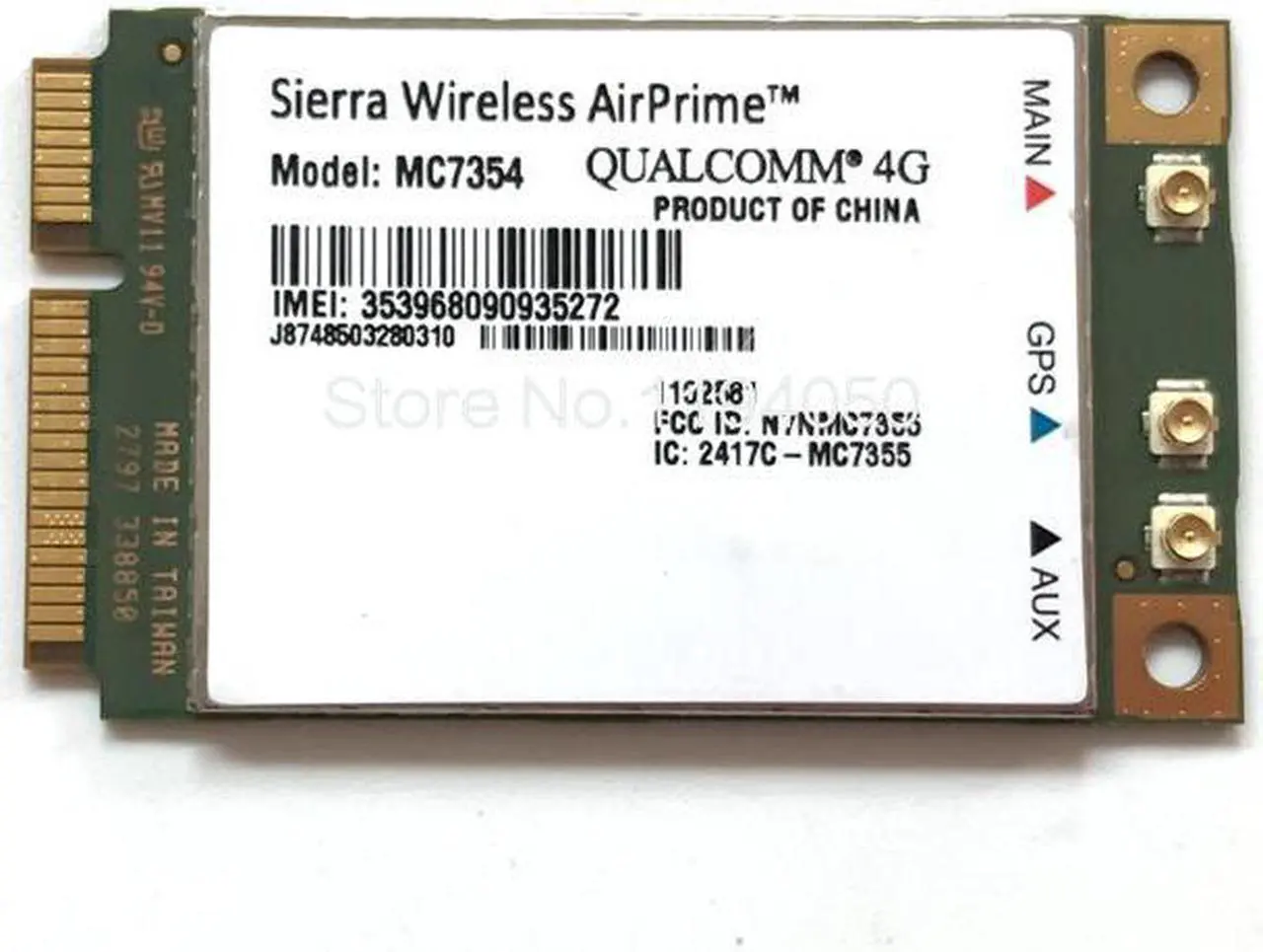

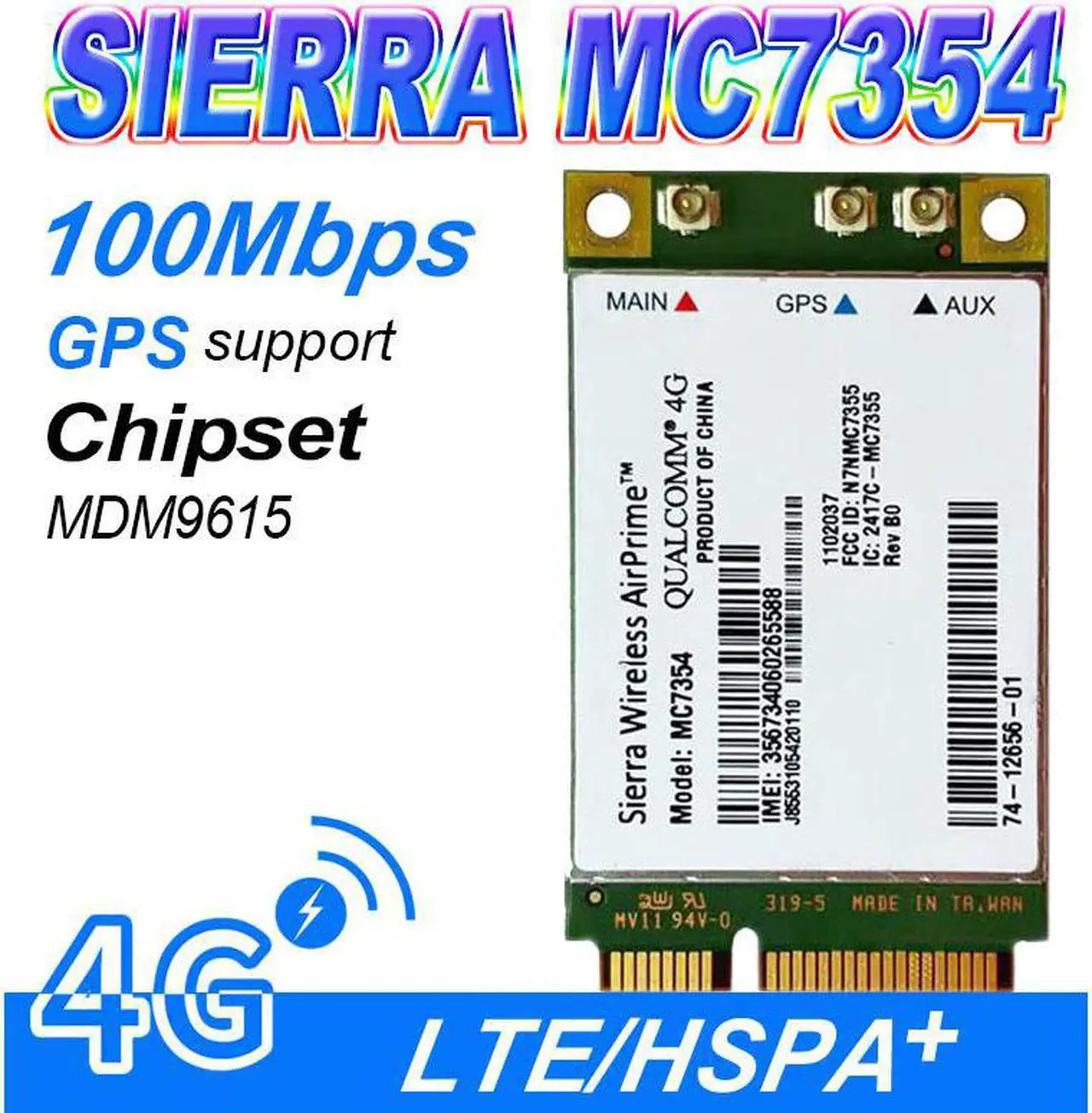

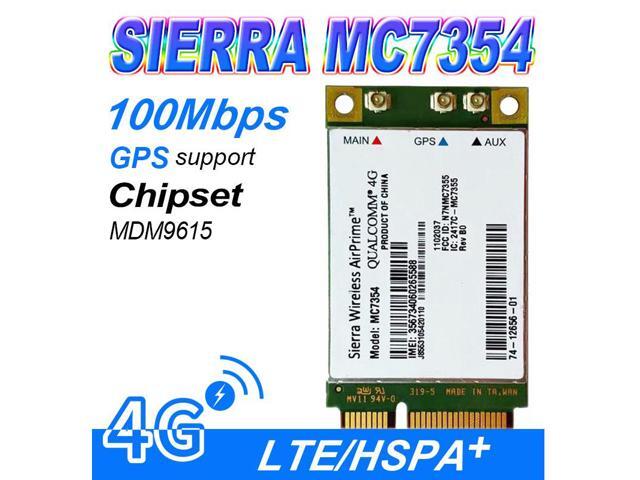

MC7354 Sierra Wireless Mini PCIE LTE 4G QUALCOMM WCDMA GSM GPRS GNSS UMTS Support Gobi API 4G module

Type:Wireless
Certification:CE,FCC
Style:Internal
Origin:Mainland China
Products Status:STOCK
Model Number:MC7354

MC7354 4G module supports 4G LTE FDD Band 2/4/5/13/17/25. The MC7354 4G Cell Module provides LTE, DC-HSPA +, HSPA +, HSDPA, HSUPA, WCDMA, CDMA, EVDO, GSM, GPRS and EDGE for laptops, ultrabooks, and tablet computers over multiple radio frequency bands. The MC7354 supports almost all LTE frequency bands on The North American market for carriers at & T, Sprint, Verizon, etc. Airprime MC7354 is very similar to the MC7355.
MC7354 Specifications:
* Model No: MC7354
* Category: 4G LTE category 3 module
* Chipset: MDM 9615
* Form Factor: PCIe M.2
* Pins: 52-pin
* Technologies: LTE, HSPA +, UMTS, HSDPA, EVDO Rev A, GPRS (class 12), GSM, EDGE
* Frequency ranges
-LTE: Band 2 (1900 MHz), Band 4 (1700/2100 MHz), Band 5 (850 MHz), Band 13 (700 MHz), Band 17 (700 MHz), band 25 (Block G 1900 MHz)
-WCDMA / UMTS networks: 850/900 / AWS / 1900/2100 MHz
-CDMA / EVDO Release B and Release A: BC0 (800 MHz Cellular), BC1 (1900 MHz PCs), BC10 (1700 MHz)
-GPRS / EDGE: 850/900/1800/1900 MHz
GPS: 1575.42 MHz
GLONASS: 1602 MHz
Zh
Data transfer rate:
-LTE Downlink 100 Mbps (20 MHz bandwidth), 50 Mbps (10 MHz bandwidth)
-LTE uplink 50 Mbps (20 MHz bandwidth), 25 Mbps (10 MHz bandwidth)
-HSPA + downlink up to 42 Mbps (bandwidth 20 MHz), connection up to 5.76 Mbps
-CDMA Downlink up to 3.1 Mbps forward link, up to 1.8 Mbps reverse cahnnel
* MIMO Support
* Temperature: -25 o C to 60 o C
* Certificates: PTCRB, NCC (Taiwan), FCC
* Carriers Approved: Sprint, AT & T, Verizon Wireless
Interface: USB
* Voice support: no
* GPS Support: Yes
* Dimensions: 51x30x2.7 mm
