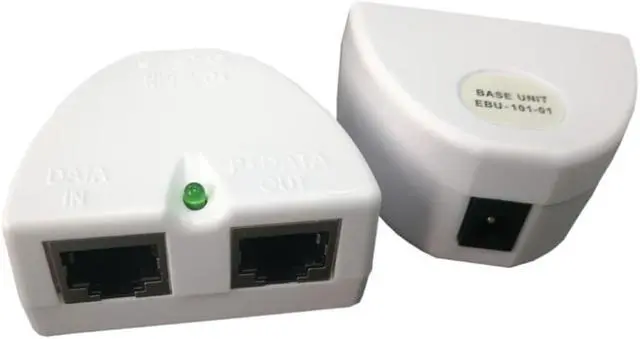

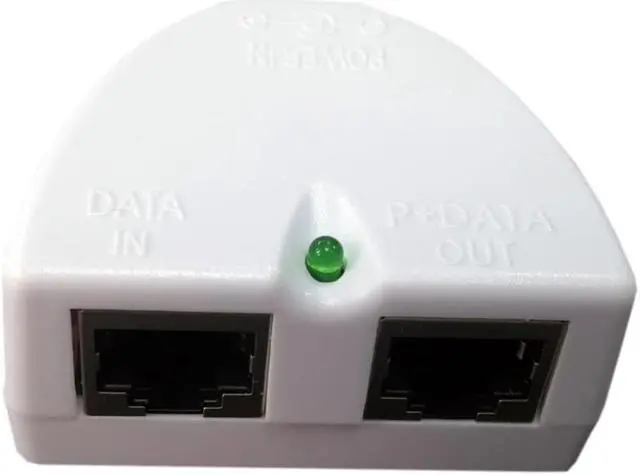

White poe connector 802.3af poe splitter 100mbps passive Power over Ethernet RJ45 adapter 12V-56V for IP Camera

Certification:CE,FCC
Origin:Mainland China
Model Number:POE-1-WM
Item Type:POE Injector
Type:Wall mount 1 port POE Injector
Data speed:10/100mbps
Power connector:2.1mm*5.5mm
Operating Temperature:0 to 65 deg C
Power input:12-56V
Mode B operation:45+/78-
Application:IP Camera/ VOIP/Wireless AP

Wall mount megabit poe injector Passive Power over Ethernet RJ45 connector PoE splitter for IP Camera
10/100 fast Ethernet PoE injector
1 Port 10/100 Ethernet
1 Shielded RJ-45 LAN
1 Shielded RJ-45 LAN+POE
Wall mount
Use with any Ethernet switch
PoE or non-PoE switches
Mode B operation
- pins 4-5 (+) - pins 7-8 (-)
Ideal for IP Cameras, VOIP phone, WiFi Access Points
Power is always on
- no auto-negotiation
- powers 802.3af / 802.3at
devices passively
Overview
These single port passive Power over Ethernet (POE) injectors provide power to your device from up to 328 ft (100 meters) away.
Use to inject power into the CAT-5, CAT-6 or CAT-7 cable and power devices such as cameras, VOIP phones, and WiFi access points.
Package: 1pcs*POE-1-WM (The power supply was sold separately)
