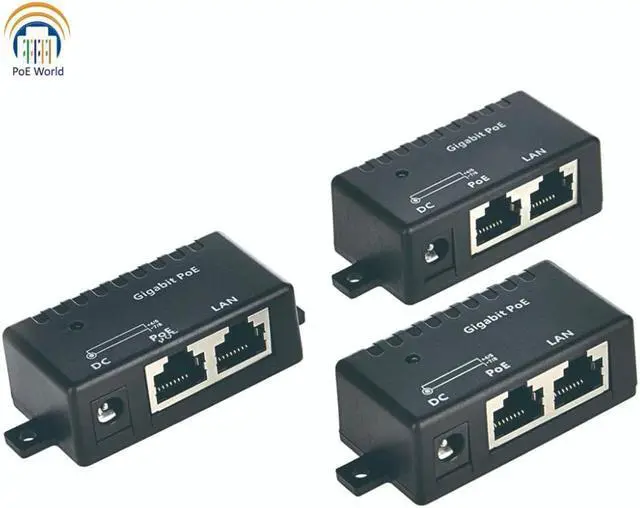

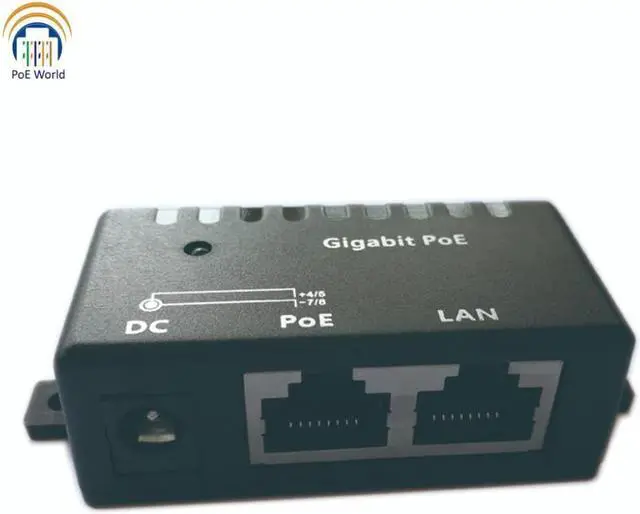

PoE World Gigabit Passive PoE injector PoE splitter Wall Mount Network PoE Patch Panel with 2.1*5.5mm DC connector

Certification:CE,FCC
Origin:Mainland China
Size:76*29*22 mm
Model Number:POEGI001
Item Type:POE Injector
Color:Black PoE
Data Rate:10/100/1000Mbps
Type:Wall Mount PoE Injector
Power connector:2.1*5.5 mm
Application:IP Camera/ VOIP/Wireless AP
Warranty:1 Year

PoE World Gigabit Passive PoE injector PoE splitter
Wall Mount Network PoE Patch Panel with 2.1*5.5mm DC connector
Overview
This Gigabit Power over Ethernet injector allows you to power Phones, Cameras, Access points and other devices remotely and eliminates the need for 110vac transformers at the far end.
This injector uses 802.3af mode B - pins 4/5 for plus power, and 7/8 for ground shared with data.
Many popular devices like Ubiquiti and Mikrotik use this method to centralize the power source - you can go for 328 ft with a 24v supply to a typical Access Point.
Connect the power supply you need (24v for Ubiquiti or Mikrotik, 48v for others) and reduce the mess of cables. Reboot devices from one central location. We use these in our own installations and are making them available for others.
Cables and Power supply not included - see our other auctions for kits including 12v to 48v power supplies.
Specification
1 Port 10/100/1000 Ethernet
Injector or Splitter

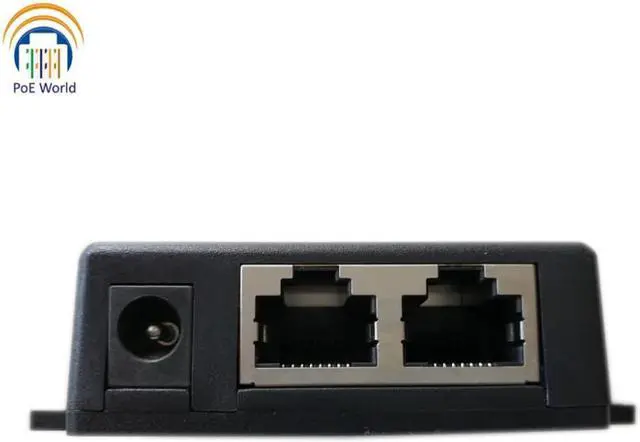

1 Shielded RJ-45 LAN
1 Shielded RJ-45 LAN+POE

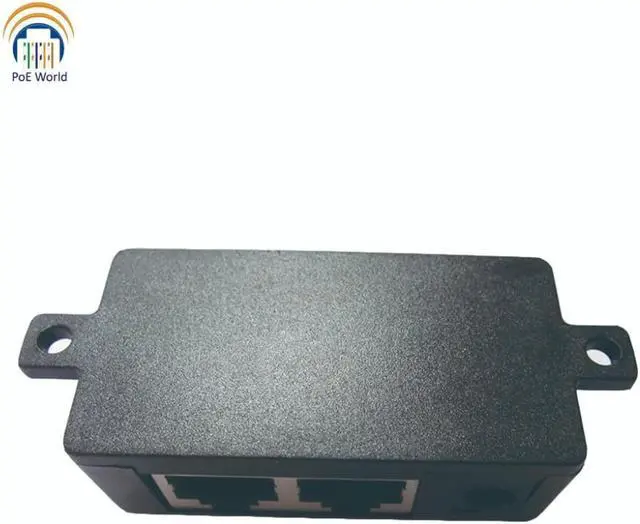

Wall mount
Use with any Ethernet switch
PoE or non-PoE switches
Standard power connector
- 2.1mm x 5.5mm
Operating Temperature
0 to 65 deg C
Mode B operation
- pins 4-5 (+) - pins 7-8 (-)
Ideal for IP Cameras, VOIP phone, WiFi Access Points
Select the power supply you need  12 to 56 volts
Power is always on
This item did not include the power supply. If you want to buy the power supply, please select the one you need and click the picture.
