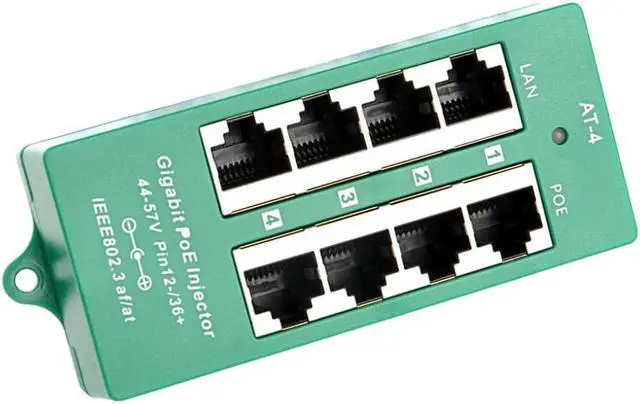

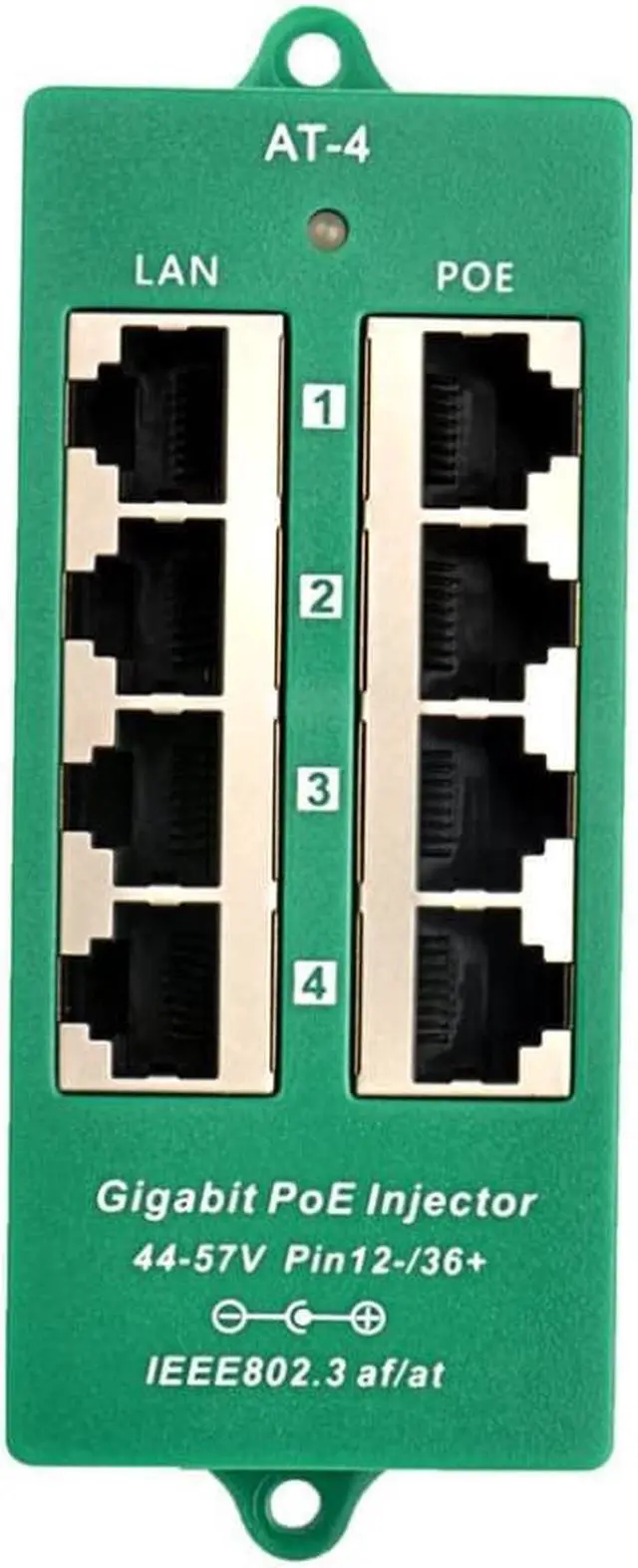

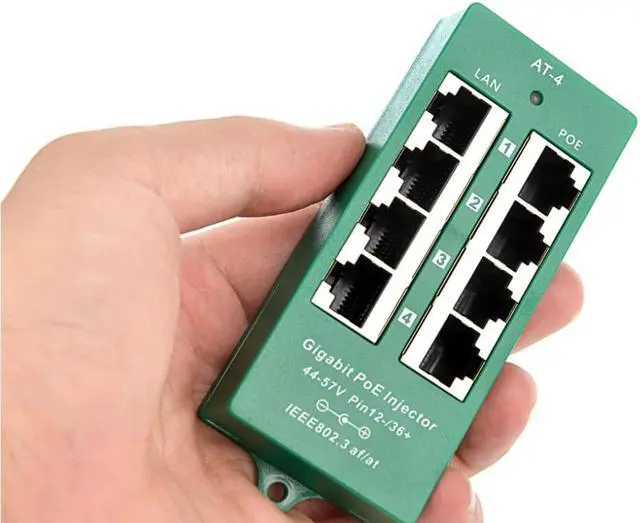

PoE World 4 Port Active Gigabit Mode A PoE Injector IEEE802.3af/at Power Over Ethernet Connector For IP Camera VOIP Phone

Certification:CE,FCC
Origin:Mainland China
Model Number:AT-4
Product:Active PoE Injector
Data Rate:10/100/1000Mbps
Connector:RJ-45
Data In:Connects PC/HUB/Switch
Warranty:1 Year
Application:IP Camera/ VOIP/Wireless AP
Operating Humidity:10%-80%
Type:4 Port 802.3af and 802.3at compliant gigabit Ethernet Injector

AT-4 802.3at negotiating Gigabit PoE 4 Port Power over Ethernet
Injector for 4 PoE Cameras like Hikvision, MikroTik, Aruba, UBNT
4 Port 802.3af and 802.3at compliant gigabit Ethernet Injector
  no power unless a PoE device is attached
4  Shielded RJ-45 LAN    4  Shielded RJ-45 LAN+POE
  all 4 data pairs active for gigabit data rates
shared data and power
supports 802.3at class 0, 1, 2, 3, 4
550 ma current limiter per port per 802.3at specifications
No power is supplied to non-PoE devices
Same voltage to all ports after negotiation
Use with any Ethernet switch
passes all management info transparently
Ideal for IP Cameras, VOIP phone, WiFi Access Points with 802.3af or 802.3at
Mode A power output via isolated transformer         - pins 1-2 (-)    - pins 3-6 (+)
Environmental
Operating temperature range
  0 to 50 deg C
  Storage temperature range
  0 to 50 deg C
  Relative humidity range
  5 to 90% non condensing
The device is PELV per NFPA standard 79
  protected extra low voltage
  No cooling is required, no fans.  Quiet operation
This item did not include the power supply. If you want to buy the power supply, please select the one you need and click the picture.
