Ship 10pcs Raspberry Pi Hat Passive Power Over Ethernet PoE HAT 5V2.5A Output Gigabit Data speed

Certification:CE,FCC
Origin:Mainland China
Item Type:Communication Converter
Power and data source input:RJ45 female connector on Pi 3B+/Pi4
Input Voltage Range:From 12 to 56 volts
Input Current at 48v:265 ma input delivers 2 amps out
Output Voltage:5V 11-13W
Operating Temperature:0°C ~ 50°C
Size:65 x 39 x 11 mm
Warranty:1 Year

GPoE-PiHat 11-13W Watt passive PoE for Raspberry Pi 3B+ or Raspberry Pi4
This PoE-World device provides a very low profile and efficient solution for delivering power to a Raspberry Pi 3B+ or 4 over 328ft of network cable.
This device allows power to be carried on 10/100/1000 networks with passive injectors and switches with a CAT5e, CAT6 or CAT7 Ethernet network cable.
This device adds no height to the Pi itself.
Intended for use with Mode A and B passive injectors and passive PoE switches ( like Ubiquiti, Mikrotik, and PoE-World )
this simple PoE solution requires no negotiation with the switch.
Specifications
Power and data source input :
RJ 45 female connector  on Pi  3 B+ or Pi  4
Data to powered device :
All 4 pairs are active for data at 10/100/1000
PoE  - mode B :
4&5 + plus; 7&8-  minus
PoE -  mode A :
1&2 and 3&6 auto polarity
Input Voltage Range :
From 12 to 56 volts
This is the Passive PoE Pihat, the PoE Power is "Always On".
If your PoE Switch/ PoE Injector is Active PoE Standard, please take our GAF-Pihat
.
Please see our
GAF-Pihat
if the input is Active POE (44V-56V )
Input Current at 48v :
265 ma input delivers 2 amps out
Output Voltage Max load  (5v10w) :
5v +- 2%
Output Current @ 12 volts input  :
2.5 Amps, 12.5 Watts
Output Current @ 24 volts input or higher :
3.0 Amps, 15 Watts
Operating Temperature :
0°C ~ 50°C
Size :
65 x 39 x 11 mm (height from top of Pi pins)
Isolation :
Not isolated
Note: The Raspberry Pi was not included.

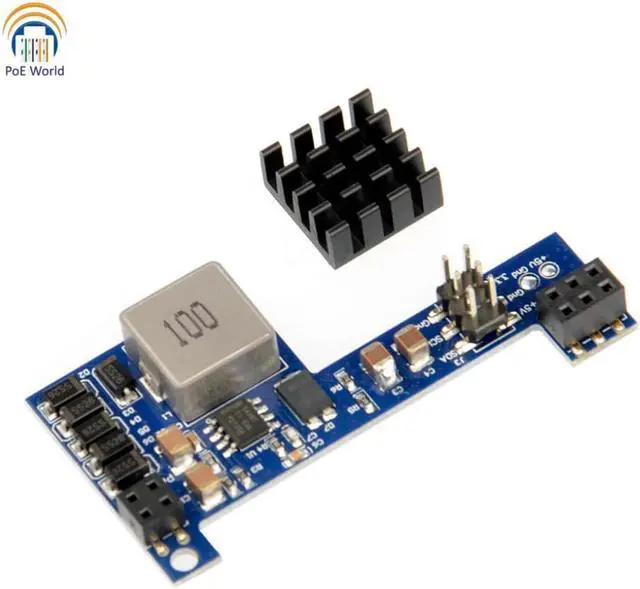

Package: POE Pi Hat *10pcs + Heat Sink*10pcs
It is a compact and cost effective power solution.The PoE source supplies 12 to 56 volts DC at the central location.
The higher DC voltage means the current is reduced by a factor of up to 11, and then carried with less loss over the cable.
This PoE to 5 volt converter allows you to operate the Pi up to 328ft or 100 meters from a power source.

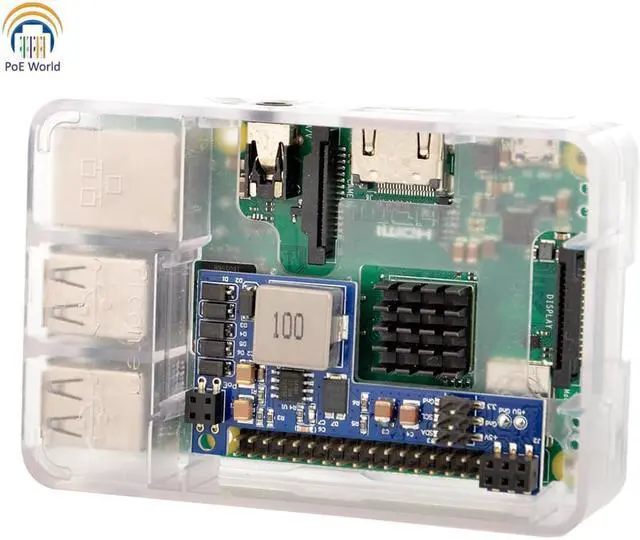

The form factor is ideal for any Pi case since it does not add any height or width to the PI.
It is much smaller than 802.3af type adapters because with Passive PoE there is no need for isolation.
The connector pins are available for GPIO and serial use.
There is room for a large heat sink, and the output power is completely regulated and stable, with much less noise than the Raspberry Pi hat.
The 12.5 to 15 watts output is plenty of power for your applications, higher than possible with 802.3af.
Note, the ground of the Pi will be about 600 mV higher than the PoE ground to allow for 568A to 568B crossover Ethernet cables in mode A.
You can connect any HDMI or USB or RJ45 shield to the power supply ground without any risk, note 300 mA will flow thru that connection.
