WAVGAT KIS3R33S DC-DC Adjustable Step Down Module Highest Efficiency of 95% Kis-3r33S Super LM2596 Power Supply Buck Module

Origin:Mainland China
Condition:
Type:electronic module
Model Number:KIS3R33S
Application:experimental modules
Operating Temperature:-40-+85
Supply Voltage:.
Dissipation Power:.
Package:Module
is_customized:Yes

5V USB Output Converter DC 7V-24V To 5V 3A Step-Down Buck KIS3R33S Module KIS-3R33S
USD 2.8
/piece
XL6019 DC-DC Booster module Power supply module output adjustable Super LM2577 XL6009 step-up module output 5V 12V 24V adjustabl
USD 1.5
/piece
LM2596 LM2596S power module + LED Voltmeter DC-DC adjustable step-down power supply module with digital display
USD 1.84
/piece
MT3608 2A Max DC-DC Step Up Power Module Booster Power Module For Arduino 3-5V to 5V/9V/12V/24V 5PCS
USD 2.16
/piece
LM317 DC-DC Linear Converter Buck Step Down Low Ripple Module Power Supply
USD 0.87
/piece
DC-DC USB Output charger step up Power Boost Module 0.9V ~ 5V to 5V 600MA USB Mobile Power Boost Board
USD 0.44
/piece
3.3V 5V 12V Multi Output Voltage Conversion DC-DC 12V to 3.3V 5V 12V Power Module
USD 1.45
/piece
10PCS RC Airplane Module Mini 360 DC-DC Buck Converter Step Down Module 4.75V-23V to 1V-17V 17x11x3.8mm Mini360 LM2596
USD 3.5
/piece
LM2587 DC-DC power modules boost module over lm2577 (Peak 5A) DC Step-Up Converter Module
USD 3.19
/piece
5A 75W XL4015 DC-DC Converter Adjustable Step-Down Module 4.0-38V to 1.25V-36V DIY Adjustable Power Supply
USD 2.85
/piece
DC-DC Buck Step-down Power Supply Module 5V-12V 24V to 3.3V Fixed Output High-Current
USD 1.2
/piece
1pcs LM2596 LM2596S DC-DC 4.5-40V adjustable step-down power Supply module ,
USD 1.84
/piece

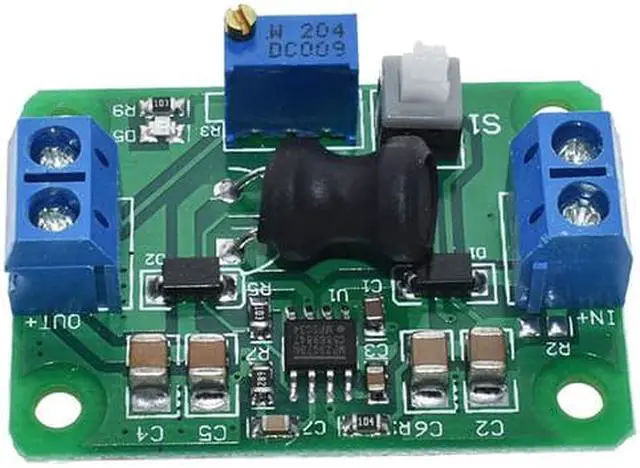

Features
1. In+
:
Input positive
2. In-
:
Input negative
3. Out+
:
Output positive
4. Out-
:
Output negative
5. Dimensions
:
44 *30.5 *12mm(length*width*height)
6. Button switch
:
Control the module work or not
7. Input voltage
:
5-24V(Maximum limit voltage is 24 v, please leave some leeway to use ,otherwise be damaged)
8. Output voltage
:
0.93v-18v (step-down mode, Inputs must be higher than the output above 2V)
9. Output current
:
Continuous output 2.5A
10. Ripple frequency
:
About 330KHZ
11. Ripple peak to peak value
:
50mv
12. Static power consumption
:
Typical about 15mA
NOTE:
The highest efficiency is about 95%. The module has the reverse protection!
