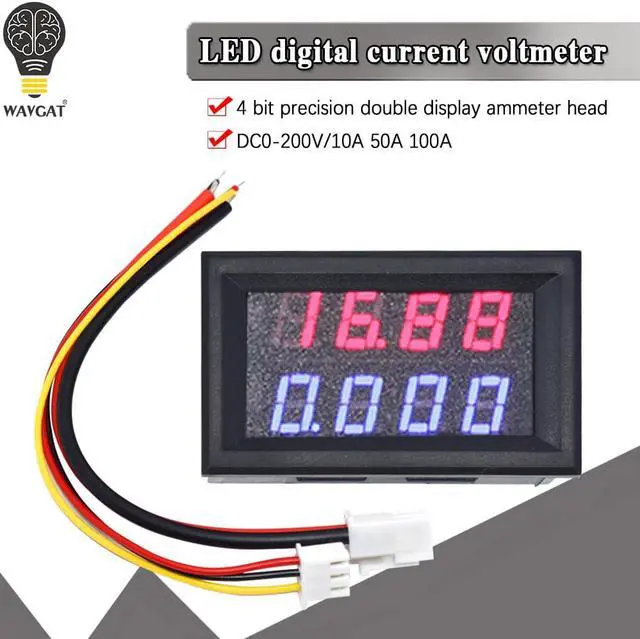

WAVGAT 0.28 Inch Digital DC Voltmeter Ammeter 4 Bit 5 Wires DC 200V 10A Voltage Current Meter Power Supply Red Blue Dual Display
- WAVGAT 0.28 Inch Digital DC Voltmeter Ammeter 4 Bit 5 Wires DC 200V 10A Voltage Current Meter Power Supply Red Blue Dual Display
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Origin:Mainland China
Condition:
Type:DC Voltmeter Ammeter
Model Number:10A 200V
Application:DC Voltmeter Ammeter
Operating Temperature:-40°-+85°
Supply Voltage:200V
Dissipation Power:10A
Package:Module
is_customized:Yes
27937
If you can't find the products you need, please contact me
High precision, four digital display
Working voltage:
DC4V-28V
Working current:
Display: 0.28" Two color blue and red
Measuring range:DC 0-200V 0-10A Built-in shunt
Refresh rate: about 1S / 3times
Measure accuracy:
Operating temperature: -10 to 65° c
Working pressure: 80 to 106 kPa
size :48×29×20 mm
Current: Range x 0.08%+Two digits
Voltage:Range x 0.08%+Two digits
About wiring:
Red line thin: power supply+
Red line (thick): IN+, current input
Yellow line (thick):PW+, measuring terminal voltage input positiv
Black line thick: COM, common measurin
