Hdi control board with 40 pin lcd screen, AT043TN24 V.1 480 (rgb) x 272
- Hdi control board with 40 pin lcd screen, AT043TN24 V.1 480 (rgb) x 272
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product Type:Tablet LCD
Origin:Mainland China
Product description:

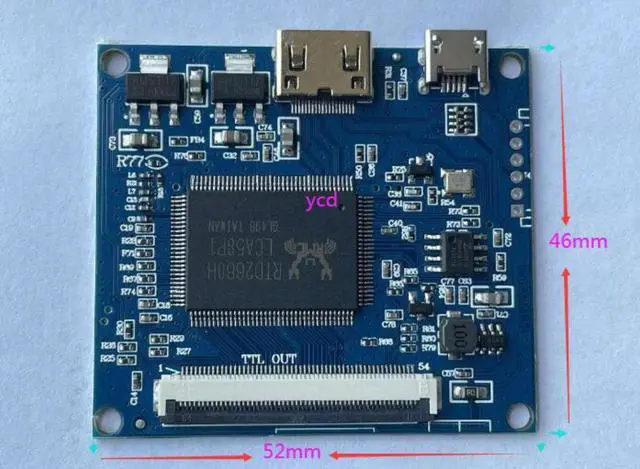

The appearance dimension of this product is 5.2CMx4.6CMx6mm
This drive board can
1. MIRCO USB power supply interface, 5V standard power supply, greater than 1.5A
2. No button, no remote control, automatically switch to HDI channel after inserting HD-I
3. One HD-I signal input, and the IC supports HDI1.2
4. HDI is a high-quality MINI gold plated seat
5. The screen interface is defined by high-quality gold-plated connector - 40PIN-AT043TN24. V.1
6. USB -- DM+DP signals can be extended externally
7. The driver board adopts a special circuit design, which can drive the LED backlight within 10V and support the current output of 180MA at most,
9. Support TTL signal output,
It can support 40PIN4.3 inch and 5-inch LCD screens such as AT043TN24.V1,
10. This drive board adopts a special double-sided gold-plated FPC seat, FPC, which is not connected up and down at the regional meeting
Origin:Mainland China
Product description:
The appearance dimension of this product is 5.2CMx4.6CMx6mm
This drive board can
1. MIRCO USB power supply interface, 5V standard power supply, greater than 1.5A
2. No button, no remote control, automatically switch to HDI channel after inserting HD-I
3. One HD-I signal input, and the IC supports HDI1.2
4. HDI is a high-quality MINI gold plated seat
5. The screen interface is defined by high-quality gold-plated connector - 40PIN-AT043TN24. V.1
6. USB -- DM+DP signals can be extended externally
7. The driver board adopts a special circuit design, which can drive the LED backlight within 10V and support the current output of 180MA at most,
9. Support TTL signal output,
It can support 40PIN4.3 inch and 5-inch LCD screens such as AT043TN24.V1,
10. This drive board adopts a special double-sided gold-plated FPC seat, FPC, which is not connected up and down at the regional meeting
