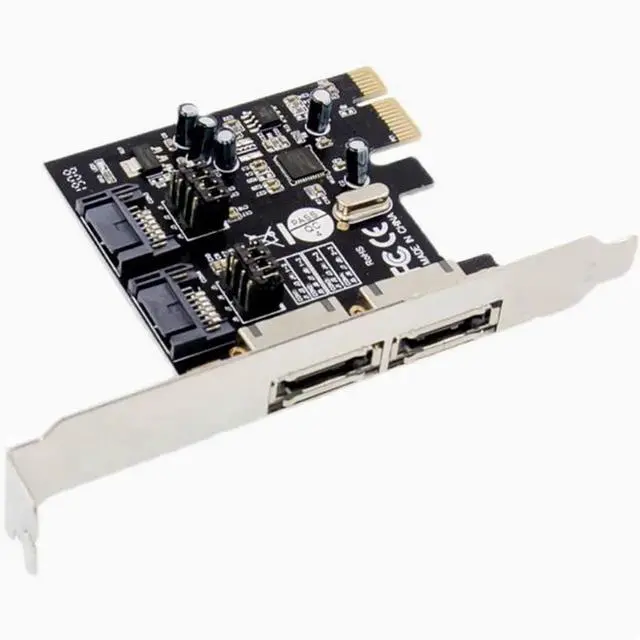

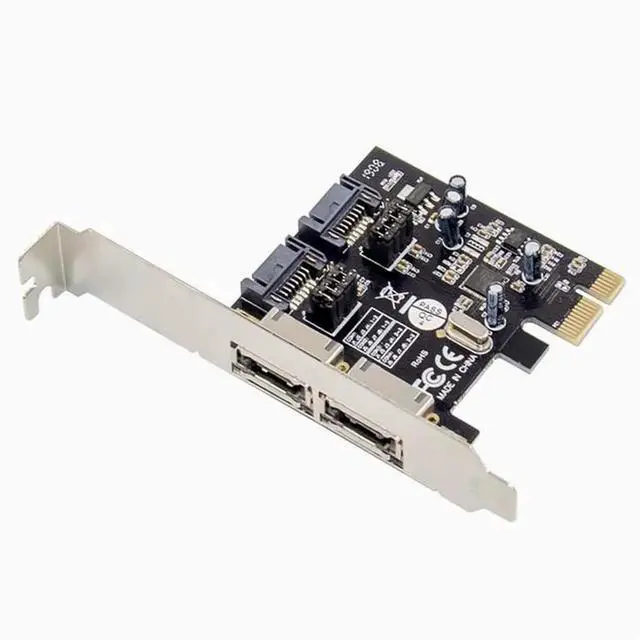

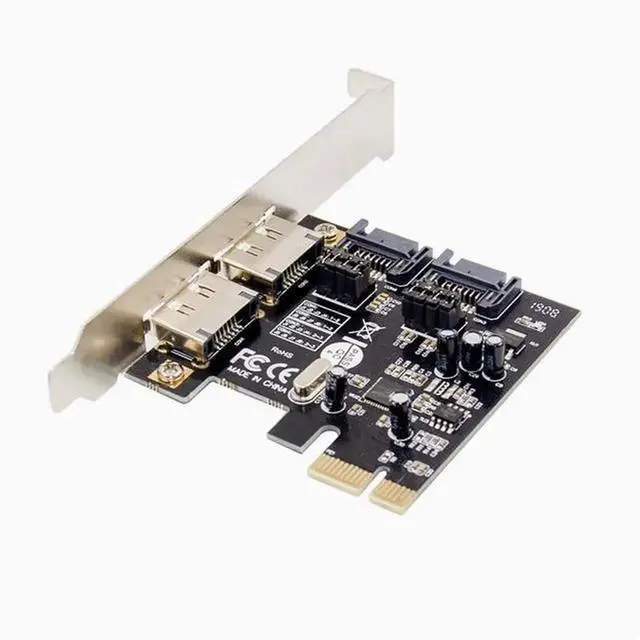

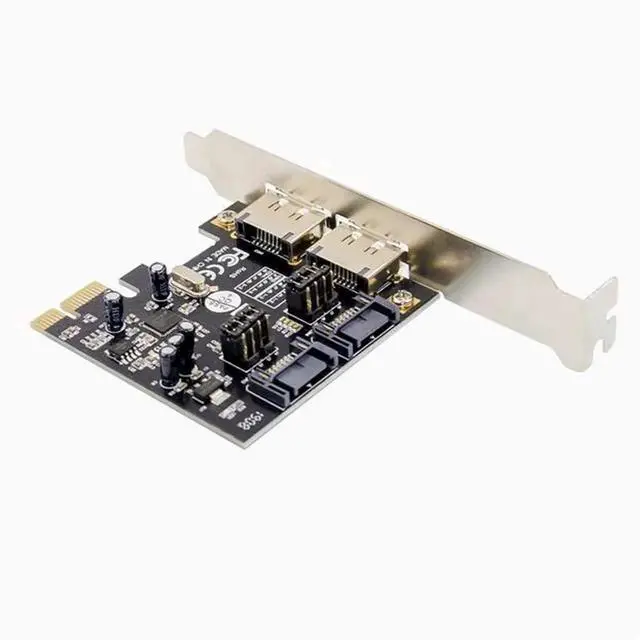

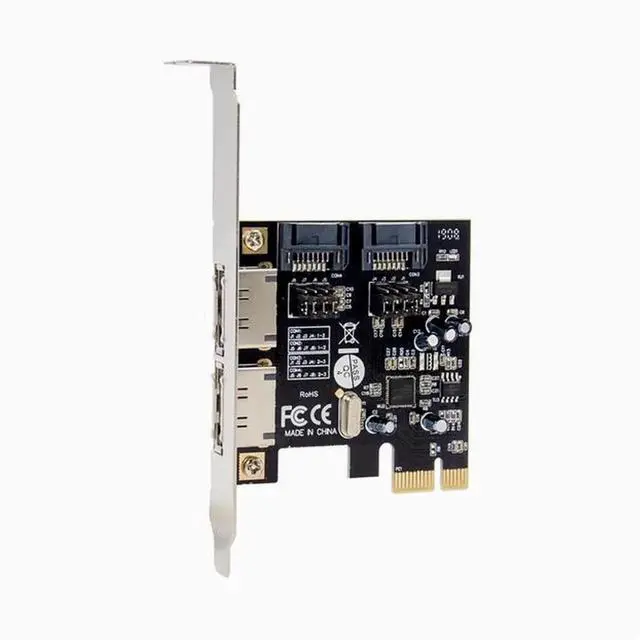

PCI-E to SATA ESATA adapter PCIE to 3.0 SATA expansion card 4-port array card
- Chip: ASM1061 chip
- Support hard disk startup, support CD-ROM expansion, support SSD, WIN7 drive free, Apple system drive free
- * Conforms to the PCI-Experss v2.0 specification and Serial ATA 3.0 specification
- * Supported data transmission speeds up to 6.0Gbps, 3.0Gbps, 1.5Gbps
- * Bus interface: PCI-Express x1
- * Expansion interface: 2 SATAIII interface +2 ESATA (switch by jumper)
- * Compatible with SATA (III, II, I) Hard Drives, SSDS, etc
- * Supports 4TB hard drives
- System requirements:
- * One available PCI-Express slot
- * Supported operating systems Windows(R) XP/Server 2003/Vista/ 7/8 (32/64 bit)/MAC 10.8 10.9 (no drive)
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
In addition to compatibility issues, the following three conditions are met to achieve SATA3 speed
1. Must be paired with SATA3 data cable to achieve the best results
2. PCI-E must be more than V 2.0 slot, V 1.0 speed will not exceed 250M, PCI-E whether X1 or X16 as long as the V 2.0 version can be, there is a spare X16 slot directly inserted into the X16 slot, refer to the above figure, after inserting the card, you can see. gen1 is working in 1.0 mode. gen2 is working in 2.0 mode
3.
BOIS Settings of the motherboard: the SATA mode should be changed to AHCI, although some mainboard PCIE is 2.0 version, but the BOIS does not open the high-speed transmission mode by default (gen2 high speed mode), which needs to be opened manually
