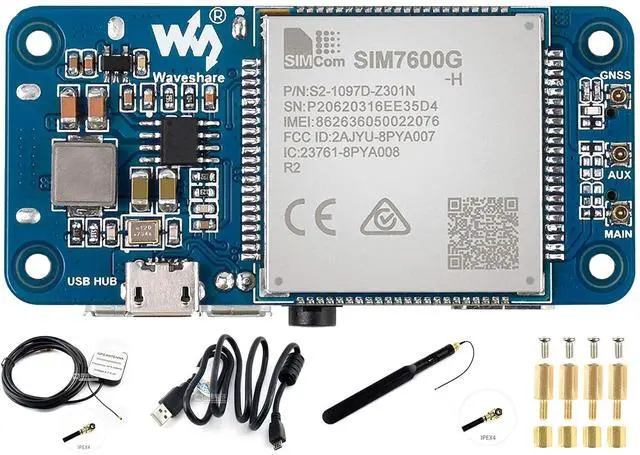

    SIM7600G-H 4G HAT Module for Raspberry Pi and PC,Support LTE Cat-4 4G 3G 2G Communication and GNSS Positioning,Global Band,up to 50Mbps Uplink, 150Mbps Downlink

    Be the first to review this product...

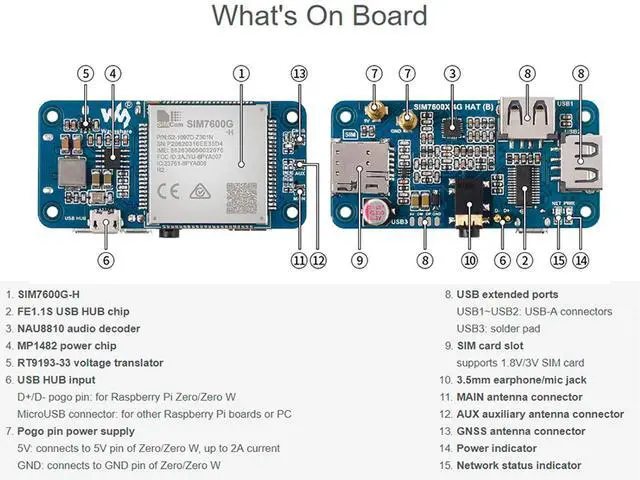

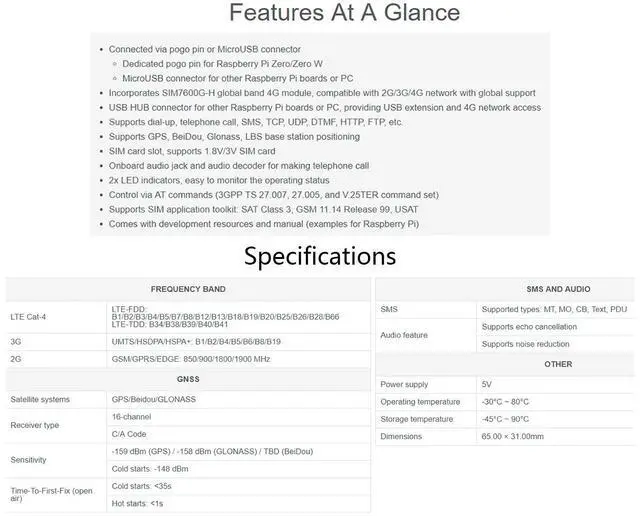

    • Connected via pogo pin or MicroUSB connector: 1)Dedicated pogo pin for Raspberry Pi Zero/Zero W. 2)MicroUSB connector for other Raspberry Pi boards or PC.; Incorporates SIM7600G-H global band 4G module, compatible with 2G/3G/4G network with global support. USB HUB connector for other Raspberry Pi boards or PC, providing USB extension and 4G network access.; Supports dial-up, telephone call, SMS, TCP, UDP, DTMF, HTTP, FTP, etc. Supports GPS, BeiDou, Glonass, LBS base station positioning.; SIM card slot, supports 1.8V/3V SIM card. Onboard audio jack and audio decoder for making telephone call. Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 99, USAT.; 2x LED indicators, easy to monitor the operating status. Control via AT commands (3GPP TS 27.007, 27.005, and V.25TER command set). Comes with development resources and manual (examples for Raspberry Pi)
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now

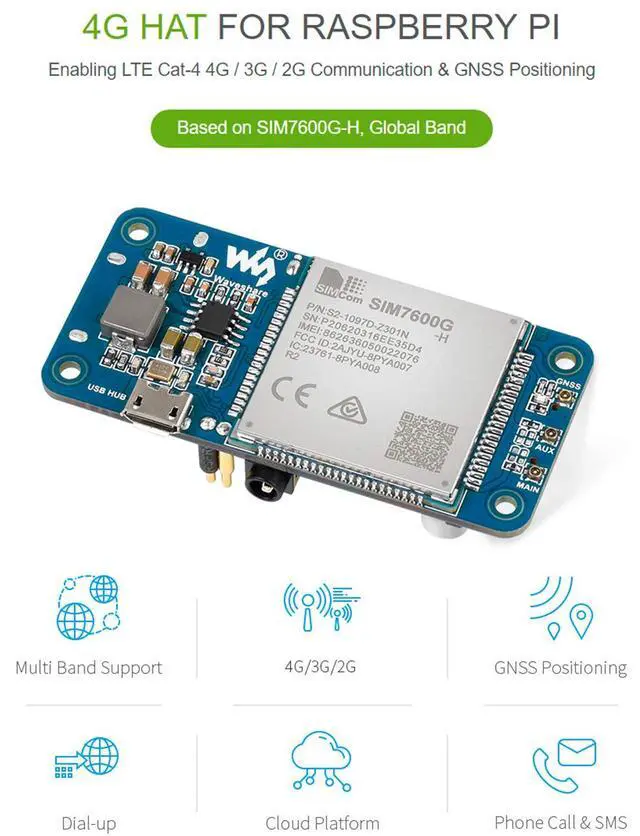

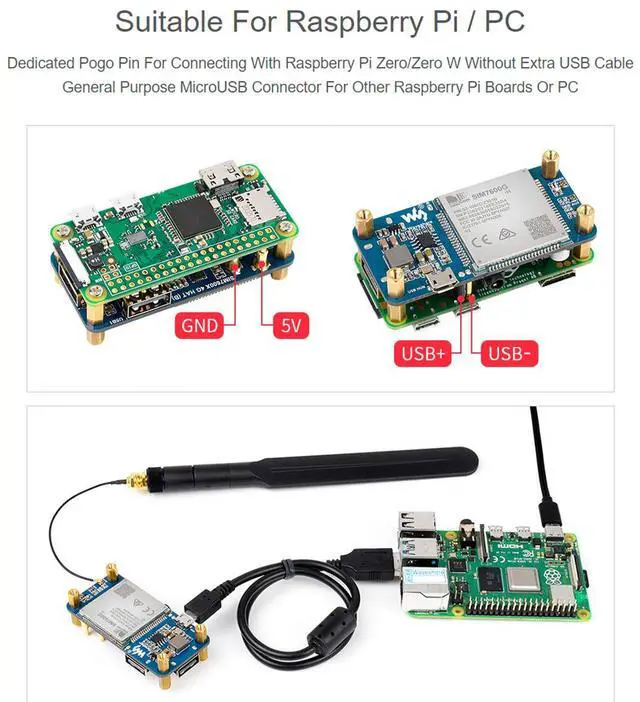

    SIM7600G-H 4G HAT (B) For Raspberry Pi, LTE Cat-4 4G / 3G / 2G Support, GNSS Positioning, Global Band 1.4G HAT FOR RASPBERRY PI Enabling LTE Cat-4 4G / 3G / 2G Communication & GNSS Positioning Based on SIM7600G-H, Global Band 2. Suitable For Raspberry Pi / PC Dedicated Pogo Pin For Connecting With Raspberry Pi Zero/Zero W Without Extra USB Cable General Purpose MicroUSB Connector For Other Raspberry Pi Boards Or PC 3. Global Band 4G / 3G / 2G Support Up To 50Mbps Uplink And 150Mbps Downlink For 4G Network * 4.

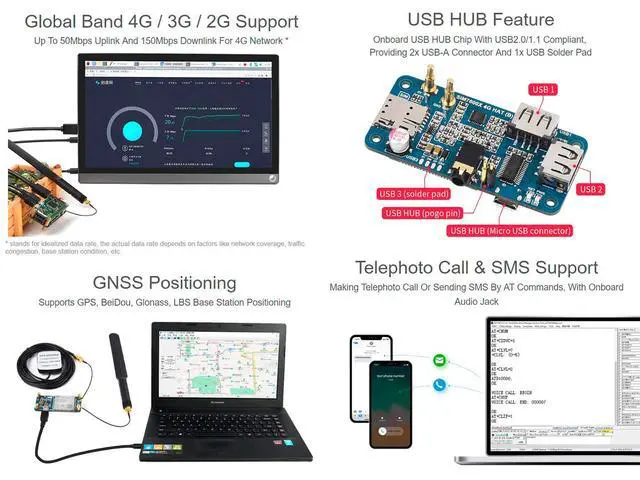

    USB HUB Feature Onboard USB HUB Chip With USB 2.0 / 1.1 Compliant, Providing 2x USB-A Connector And 1x USB Solder Pad 5. GNSS Positioning Supports GPS, BeiDou, Glonass, LBS Base Station Positioning6. Telephoto Call & SMS Support Making Telephoto Call Or Sending SMS By AT Commands, With Onboard Audio Jack Package Content SIM7600G-H 4G HAT (B) x1 LTE Antenna x1 GPS Antenna x1 USB-A to micro-B cable x1 Screws pack x1 Note Raspberry Pi Pico and expansion modules are NOT included. Development Resources are provided, please contact us to get
