Vszerda 2x1 4K 120Hz Switch eARC Audio Extractor ARC Optical Toslink 2.0 Switch 4K 60Hz Switcher Remote for Apple TV PS4

(Kind reminder: 3.5 mm audio does not support ARC/eARC function)

Features:

1. The 2x1 4K 120Hz HDMI 2.0 Switch eARC audio extractor is a high-performance 2 HDMI input and 1 HDMI output switch with audio output. HDMI/Theslink/ 3.5 mm jack audio output supports audio extraction function, only audio HDMI/Theslink/coaxial supports ARC (audio return channel), only audio HDMI supports eARC (enhanced audio return channel). Except for Gao Da 4Kx2K@60 /120Hz

RGB 8:8: 8.

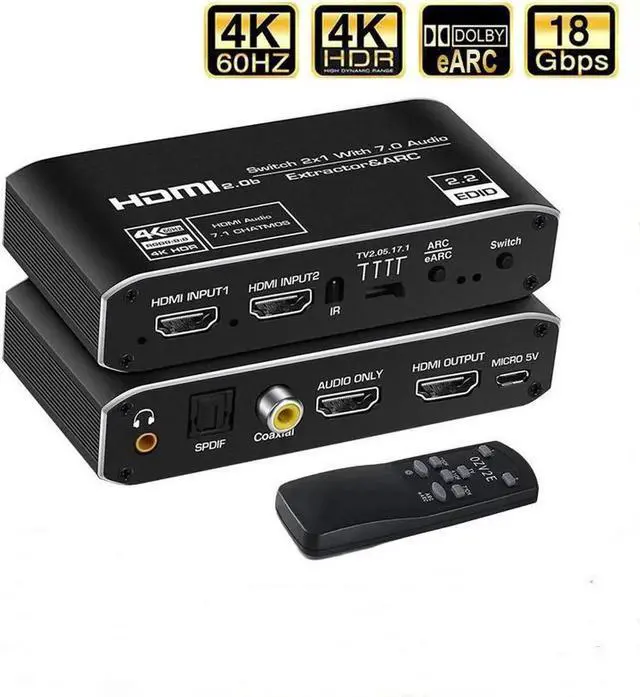

2. Excellent quality, metal shell, sturdy and durable.

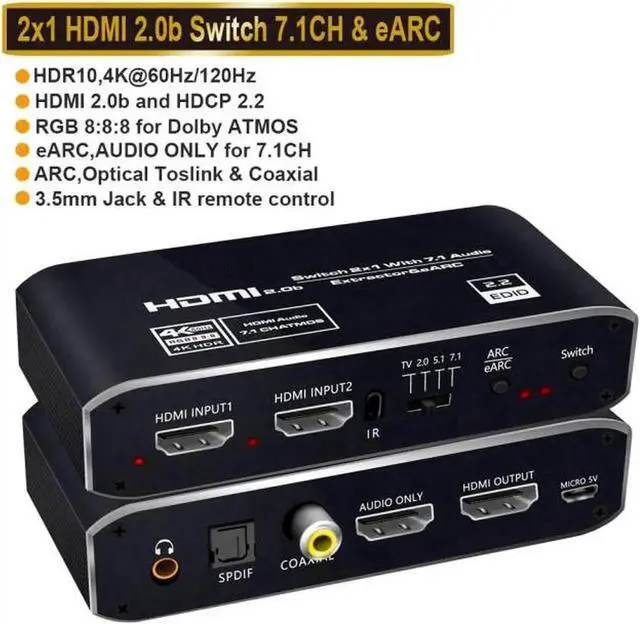

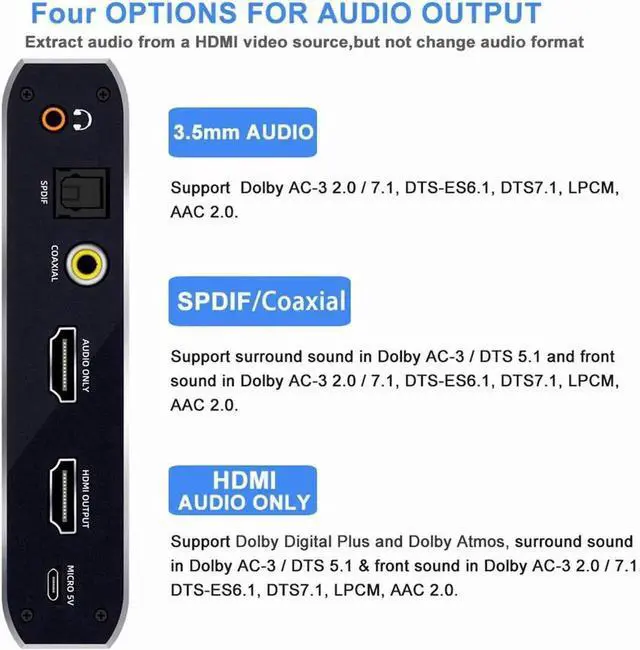

3. There are 2 HDMI inputs, 1 HDMI output, 1 Toslink audio output, 1 port coaxial audio output, 1 3.5 mm audio jack, and 1 port HDMI audio output.

4. HDMI (audio only) /coaxial/optical link SPDIF audio output supports audio return channel function (ARC)

5. Only audio HDMI supports eARC (Enhanced Audio Return Channel)

6. 3.5 mm jack output supports audio extraction function, does not support ARC/eARC

Supports 480i/480p/576i/576p/ 720p@50 /60 Hz/ 1080p@50 /60 Hz/ 4Kx2K@30 /60/120Hz with 24 bit

RGB 8:8: 8/YcbCR

4:4: 4(

4k@60hzYUV 4:4: 4).

7.

Maximum bandwidth per channel: 600MHz.

Maximum baud rate per monitor: 18.5G bps

8. Compatible with HDR 10, HDMI 2.0 b, and HDCP 2.3 / 2.2 / 1.4 / 1.3 / 1.2 / 1.1.

9. HDMI Switch supports LPCM 7.1CH, Dolby True-HD, DTS-HD, AC 3, DTS, DSD, Dolby Digital Plus, and Dolby Atmos audio formats, but cannot decode these audio formats. If your amplifier or speaker does not support these audio formats, the speaker or amplifier will not output audio. In this case, please set the audio format to PCM/LPCM on the HDMI source.

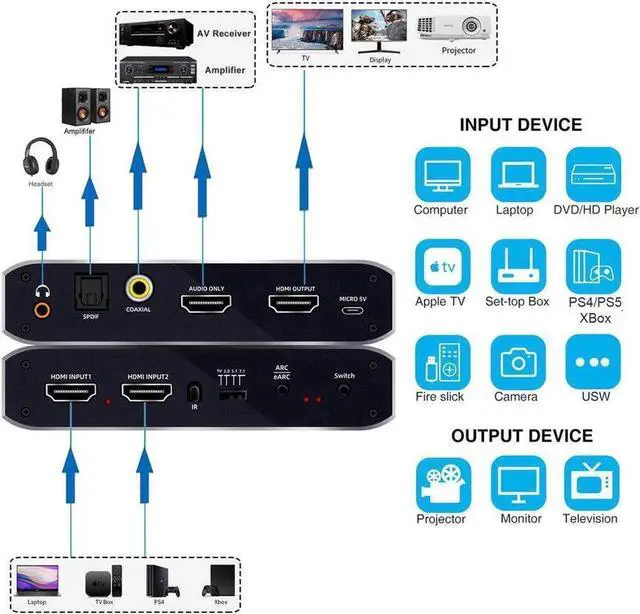

10. HDMI audio extractor - With optical TOSLINK SPDIF+coaxial+ 3.5 mm+HDMI audio output, it can extract the sound from HDMI input sources (such as PS5/4, Xbox one, etc. ) to the speaker or amplifier without connecting to a TV or monitor.

11. HDMI ARC/eARC switch adapter - extracts audio from the IV to the speaker or amplifier. Connect the TV HDMI (ARC/eARC) port to this switch's HDMI o
