AJMRTC PE4302 Digital RF Step Attenuator Module, HighLinearity 6Bit 0.5dB Step 031.5dB DC4GHz 50Ohm SMA RF Board for Radio Test, Wireless Device Debug & Lab Experimental Development
- 1. This digital RF attenuator breakout board uses PE4302 chip, offering 6bit control with precise 0.5dB step, adjustable attenuation coverage from 0dB to 31.5dB for accurate RF signal amplitude tuning.
- 2. Wide operating frequency range DC4GHz with standard 50ohm impedance; SMA female ports for RF input and output, easy to link with signal generators and other RF test equipment.
- 3. Supports serial and parallel CMOS control interfaces, can be driven directly by MCU; configurable poweron default attenuation state for convenient embedded system integration.
- 4. Excellent highlinearity performance, low insertion loss and low power consumption; maximum safe input power up to +24dBm, suitable for general laboratorylevel RF signal processing.
- 5. Compact module with clearlydefined control pin headers, widely applied for RF lab testing, wireless equipment calibration, signal simulation and electronic secondarydevelopment projects.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

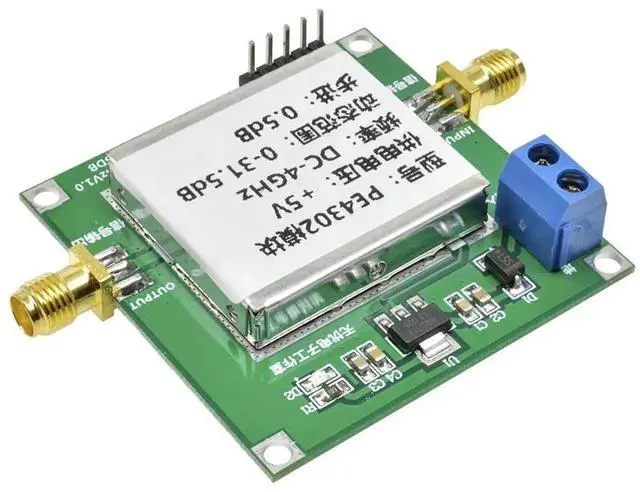

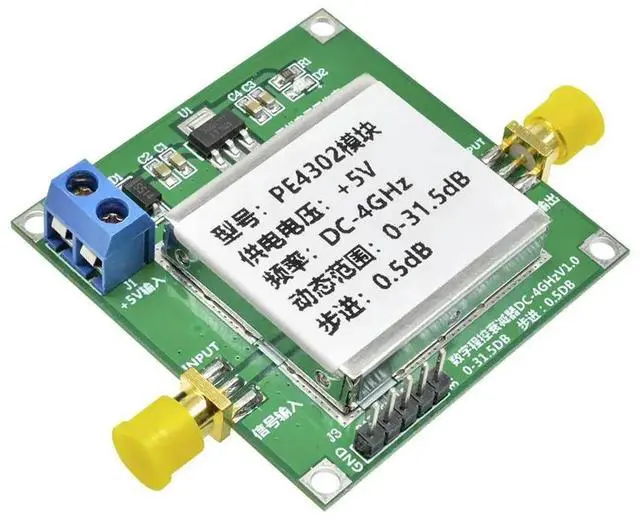

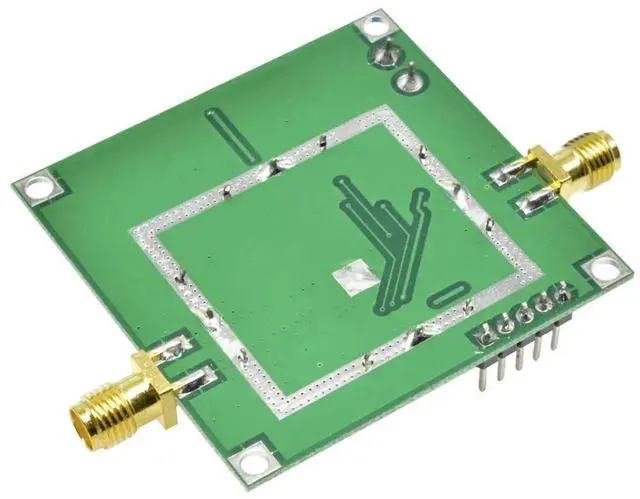

AJMRTC PE4302 digital RF step attenuator module is built around the PE4302 UltraCMOS RF attenuator chip. It achieves fine 0.5 dB resolution across full 031.5 dB attenuation range over DC4 GHz bandwidth while maintaining outstanding signal linearity.
Designed with standard 50ohm radiofrequency impedance, SMAfemale connectors are fitted for RFIN and RFOUT. Both serial and parallel control modes are supported, allowing microcontrollerbased automatic adjustment. Users can set default attenuation value on powerup to fit project requirements. Low insertion loss helps preserve signal integrity during attenuation operation.
It is commonly used in RF laboratory measurement, wireless device debugging, signal simulation and prototype development. Signal source, host controller and test instruments are not included. Do not feed input power higher than +24 dBm to prevent chip burnout.
Specifications- Brand: AJMRTC
- Product: PE4302 Digital RF Attenuator Module
- Core Chip: PE4302
- Attenuation Step: 0.5 dB
- Attenuation Range: 031.5 dB (6Bit)
- Frequency Band: DC4 GHz
- Characteristic Impedance: 50 Ohm
- RF Connector: SMA Female (Input / Output)
- Max Input Power: +24 dBm
- Control Interface: Serial / Parallel CMOS
- Application: RF Test, Wireless Equipment Debugging, Lab Experiment, Secondary Development
- Package Content: 1 × PE4302 RF Attenuator Module
- Note: Signal source and control mainboard not included; avoid exceeding maximum input power rating
