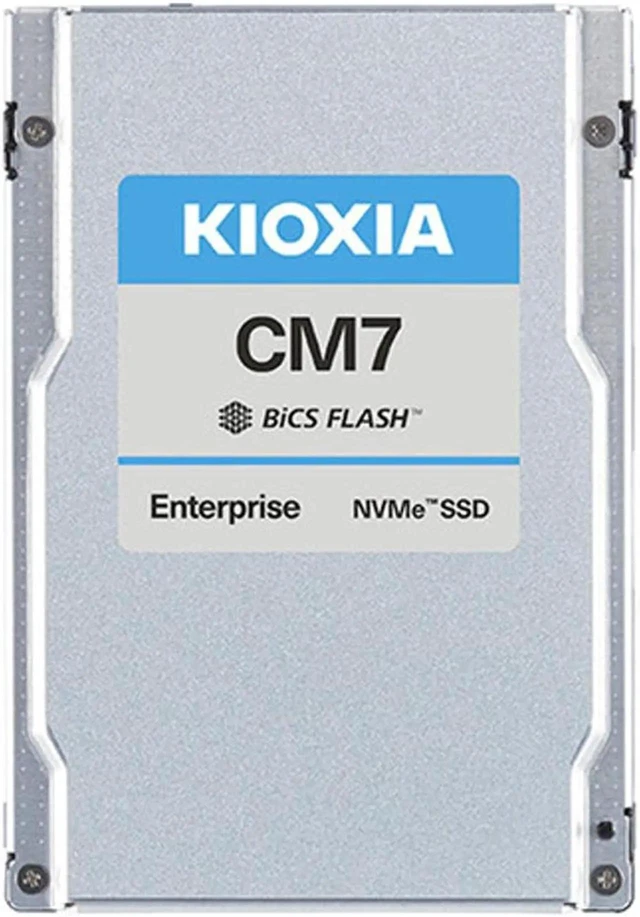

KIOXIA CM7-R Series 1.92TB KCMYDRUG1T92 1920 GB 2.5-inch PCIe 5.0 NVMe 2.0 SSD
- Capacity: 1,920 GB
- Basic Specifications
- Form Factor: 2.5-inch, 15mm thickness
- lnterface: PCIe 5.0, NVMe 2.0
- Maximum Interface Speed: 128 GT/s (PCIe Gen5 single x4, dual x2)
- Flash Memory Type: BiCS FLASH TLC
- Performance in single port (1x4) mode (Up to)
- Sustained 128 KiB Sequential Read: 14,000 MB/s
- Sustained 128 KiB Sequential Write: 3,500 MB/s
- Sustained 4 KiB Random Read: 2,000K IOPS
- Sustained 4 KiB Random Write: 155K IOPS
- Power Requirements
- Supply Voltage: 12 V +/- 10 %, 3.3 V +/- 15 %
- Power Consumption (Active): 22 W typ.
- Power Consumption (Ready): 5 W typ.
- Reliability
- MTTF: 2,500,000 hours
- DWPD: 1
- Dimensions
- Thickness: 15.0 mm +0 / -0.5 mm
- Width: 69.85 mm +/- 0.25 mm
- Length: 100.45 mm Max
- Weight: 130 g Max
- Environmental
- Temperature (Operating): 0 °C to 76 °C
- Temperature (Non-operating): -40 °C to 85 °C
- Humidity (Operating): 5 % to 95 % R.H.
- Vibration (Operating): 21.27 m/s^2 { 2.17 Grms } ( 5 to 800 Hz )
- Shock (Operating): 9.8 km/s^2 { 1,000 G } ( 0.5 ms )
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
- Capacity: 1,920 GB
- Basic Specifications
- Form Factor: 2.5-inch, 15mm thickness
- lnterface: PCIe 5.0, NVMe 2.0
- Maximum Interface Speed: 128 GT/s (PCIe Gen5 single x4, dual x2)
- Flash Memory Type: BiCS FLASH TLC
- Performance in single port (1x4) mode (Up to)
- Sustained 128 KiB Sequential Read: 14,000 MB/s
- Sustained 128 KiB Sequential Write: 3,500 MB/s
- Sustained 4 KiB Random Read: 2,000K IOPS
- Sustained 4 KiB Random Write: 155K IOPS
- Power Requirements
- Supply Voltage: 12 V +/- 10 %, 3.3 V +/- 15 %
- Power Consumption (Active): 22 W typ.
- Power Consumption (Ready): 5 W typ.
- Reliability
- MTTF: 2,500,000 hours
- DWPD: 1
- Dimensions
- Thickness: 15.0 mm +0 / -0.5 mm
- Width: 69.85 mm +/- 0.25 mm
- Length: 100.45 mm Max
- Weight: 130 g Max
- Environmental
- Temperature (Operating): 0 °C to 76 °C
- Temperature (Non-operating): -40 °C to 85 °C
- Humidity (Operating): 5 % to 95 % R.H.
- Vibration (Operating): 21.27 m/s^2 { 2.17 Grms } ( 5 to 800 Hz )
- Shock (Operating): 9.8 km/s^2 { 1,000 G } ( 0.5 ms )
