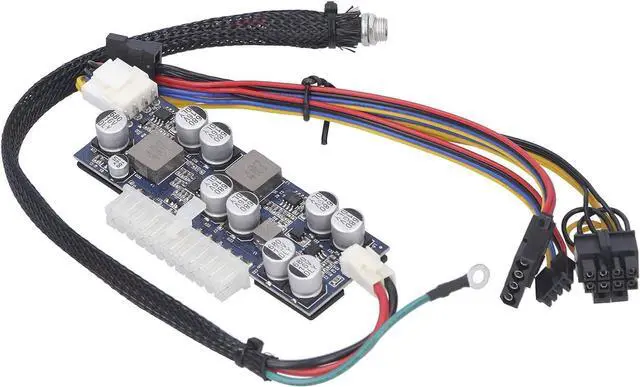

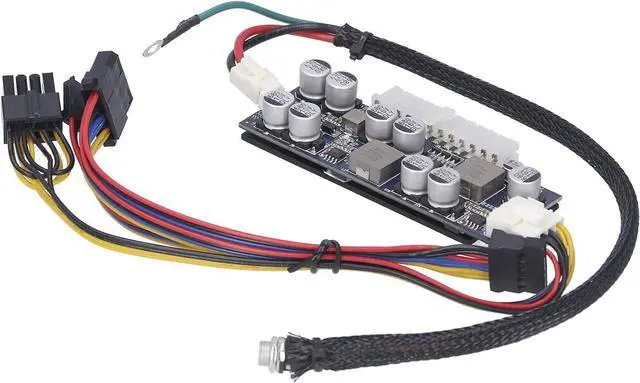

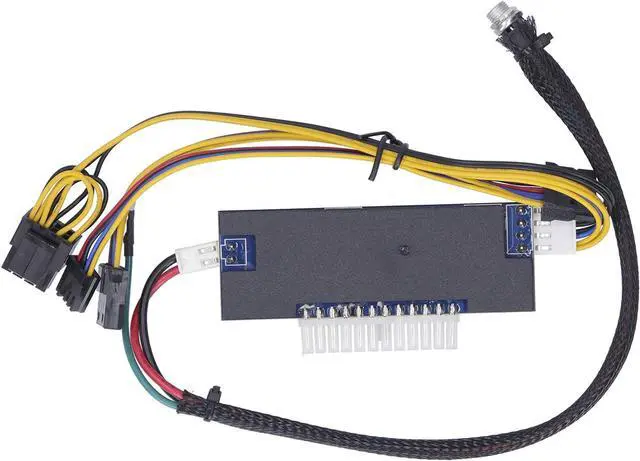

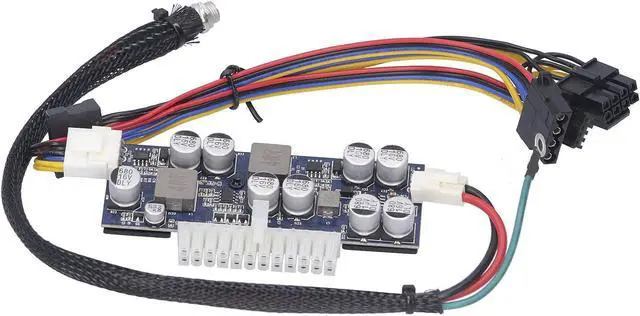

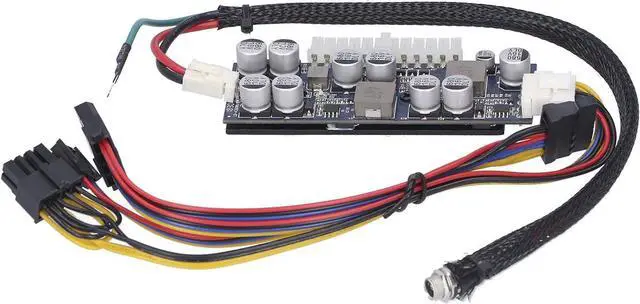

Power Supply Adapter Board, 12V/300W Straight Plug Desktop Computer Adapter with Short Circuit Protection
Limited time offer, ends 01/15 By LMSshop
- With high heat resistance, strong and durable, the performance of the product is more reliable.
- Suitable for small ATX boards, by directly plugging into the motherboard ATX connector to eliminate 24 unnecessary wires.
- This product can save space in the case without affecting power requirements.
- When the output current reaches the peak current, the output is turned off.
- With short-circuit protection, when the output is short-circuited, the output is turned off.
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specification:
Item Type: Power Supply Adapter Board
Model: LD-A300WL
Material: PCB
Power: 300W
Input Voltage: 12V
Output Voltage/maximum Load: +5VSB/2A+5VDC/8A+3.3VDC/8A+12VDC/16A-12VDC/0.05A
Operating Frequency: IC built-in oscillator (250-350) kHz at Vcc-12V
Feedback Reference Voltage: 0.8V±2% at 12VDC
Interface: 1 x ATX24Pin, 1 x CPU8Pin, 1 x , 1 x IDE, 1 x small 4pin, 1 x DC5525
Cable Length: DC Cable Length: Approx. 320mm / 12.6in
CPU Cable Length: Approx. 230mm / 9.1in
IDE Cable Length: Approx. 195mm / 7.7in
Cable Length: Approx. 155mm / 6.1in
Small 4Pin Cable Length: Approx. 150mm / 5.9in
Protection Function: (for +3.3V, +12V, +5.00V and +5.00VSB power output)
Overcurrent Protection: When the output current reaches the peak current, the output is turned off
Short Circuit Protection: When the output is short circuited, the output is closed
Working Temperature/humidity: -5 ~ 55/45%~75%
Storage Temperature/humidity: -40 ~ 70/10%~90%
Applications: MINI computers, HTPC computers, POS machines, ITX cases, web servers, advertising machines, bank terminals, low-power systems, industrial control systems, etc.
Package List:
1 x Power Supply Adapter Board
Item Type: Power Supply Adapter Board
Model: LD-A300WL
Material: PCB
Power: 300W
Input Voltage: 12V
Output Voltage/maximum Load: +5VSB/2A+5VDC/8A+3.3VDC/8A+12VDC/16A-12VDC/0.05A
Operating Frequency: IC built-in oscillator (250-350) kHz at Vcc-12V
Feedback Reference Voltage: 0.8V±2% at 12VDC
Interface: 1 x ATX24Pin, 1 x CPU8Pin, 1 x , 1 x IDE, 1 x small 4pin, 1 x DC5525
Cable Length: DC Cable Length: Approx. 320mm / 12.6in
CPU Cable Length: Approx. 230mm / 9.1in
IDE Cable Length: Approx. 195mm / 7.7in
Cable Length: Approx. 155mm / 6.1in
Small 4Pin Cable Length: Approx. 150mm / 5.9in
Protection Function: (for +3.3V, +12V, +5.00V and +5.00VSB power output)
Overcurrent Protection: When the output current reaches the peak current, the output is turned off
Short Circuit Protection: When the output is short circuited, the output is closed
Working Temperature/humidity: -5 ~ 55/45%~75%
Storage Temperature/humidity: -40 ~ 70/10%~90%
Applications: MINI computers, HTPC computers, POS machines, ITX cases, web servers, advertising machines, bank terminals, low-power systems, industrial control systems, etc.
Package List:
1 x Power Supply Adapter Board
