BTF-LIGHTING 24VDC ETL Listed Dimmable Power Supply,100W Triac/ELV/MLV/0-10V/1-10V/10V PWM/Potentiometer LED Driver,Input AC110V-277V Constant Voltage for LED Strip,Flicker-Free,Type HL,Class P,FCC

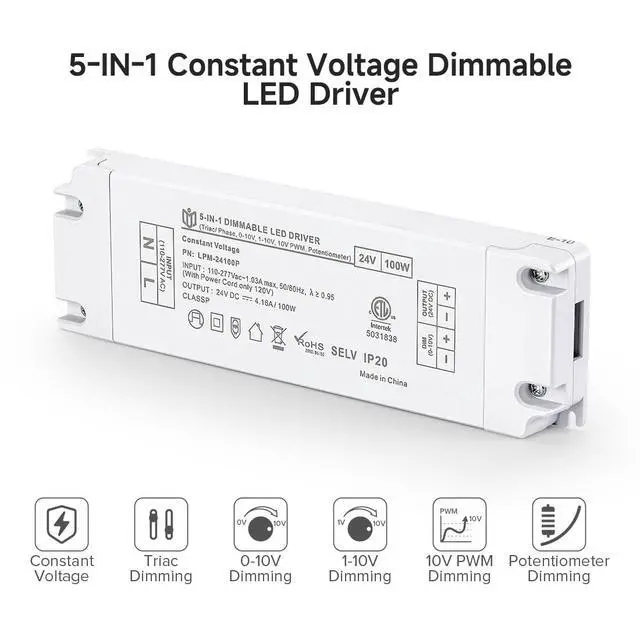

5-in-1 Dimming Power SupplyConstant Voltage Dimmable LED Driver.5-IN-1 Dimming Triac/MLV/ELV/0-10V/1-10V/10V PWM/Potentiometer .TRIAC/MLV (Leading Edge) Dimming,Electronic Low Voltage (ELV) Dimming.0-10V/1-10V Dimmng.Compatible with Lutron Leviton switches ,receivers and controls for secondary side dimming.
ProtectionShort Circuit:Hiccup mode, recovers automatically after fault condition is removed. Over Load:120% Hiccup mode,recovers automatically after fault condition is removed.Over Temperature:100 ±10 shut down o/p voltage, automatically recover after cooling.
5-way universal dimmingSmooth flicker-free dimming, down to 0.1% .Dimming range: 0.1-100%, flicker-free.PWM Output: 4000Hz constant frequency. Super low loading request, works perfect at 10-100% load. Ultra thin plastic housing for dry and damp location, IP20. Build in active PFC, typical power factor >0.65, THD<10%@120V Max. Load.Dimming curve can be customized.

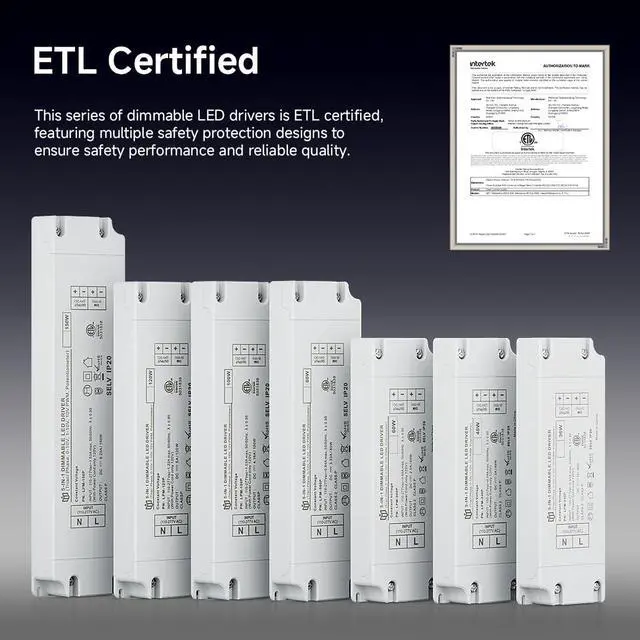

Safety is engineered into every detailOur 5-in-1 dimmable driver has passed rigorous tests to earn ETL Listed, Class 2,CLass P,Type HL,FCC,Title 24/JA8 Qualified ,UL8750 Safety Standards and RoHS certifications, effectively guarding against short circuits, overheating and overloads for reliable, hazard-free performance.
Versatile Indoor ApplicationlSuitable for a range of low-voltage LED installations, including LED tape lights, and commercial or domestic lighting projects such as in offices, hotels, and retail displays.

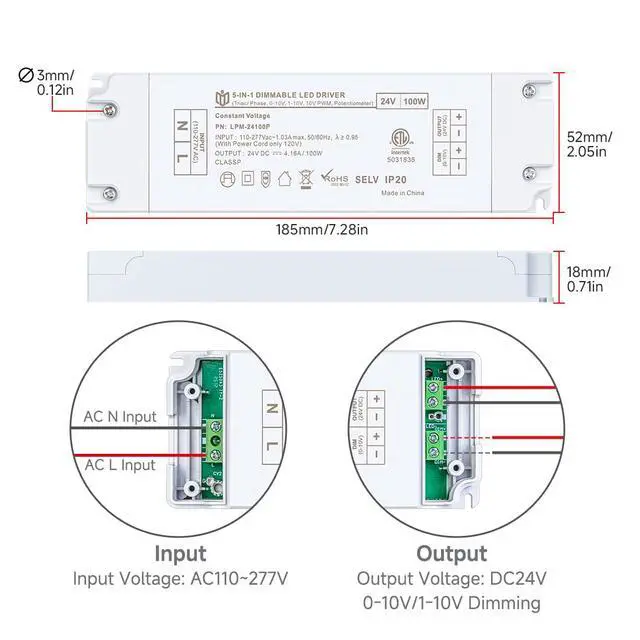

AC110V-277V InputInput 110-277V,Frequency Range 47-63Hz,THD<10% ,AC Current (Typ.) 0.35A . Output 24VDC 100W
Package Contents: 1 x Power Supply. Power cord is not included.Note :Different input AC voltage standards apply to AC input power cord selection. Never use a AC120V-rated input power cord to connect to AC277V.
