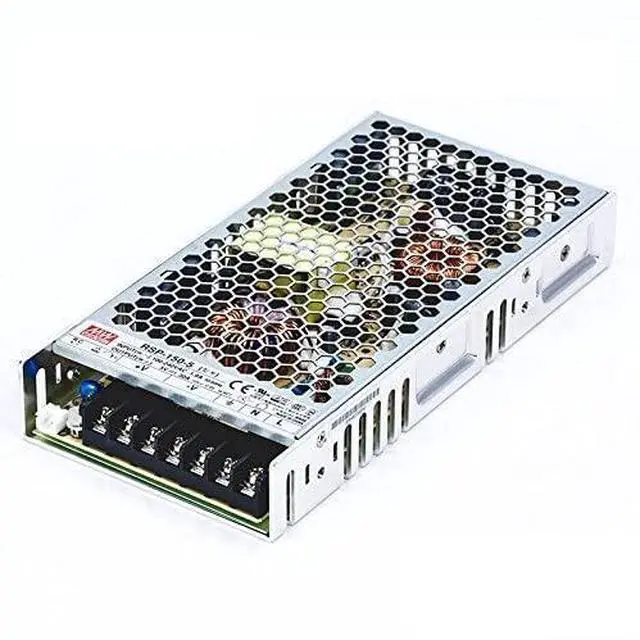

RSP-150-5 Power Supply - 150W 5V 30A - Low Profile
Limited time offer, ends 07/07 By NaisTechnology
- Output Voltage: 5V; Approx. Wattage: 150W; Protections: Short circuit / Overload / Over voltage / Over temperature; Warranty: 3 Years Warranty
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Features: Universal AC input / Full range Built-in active PFC function Built-in constant current limiting circuit
Protections: Short circuit/ Overload / Over voltage / Over temperature Cooling by free air convection 1U low profile 30mm Remote ON-OFF control LED indicator for power on 100% full load burn-in test 3 years warranty General Specification (Please refer to images below for detailed datasheet)
C input voltage range: 85~264VAC; 120~370VDC AC inrush current (max. ): Cold start, 45A at 230VAC
Overload protection: 105%~135% Constant current limiting, auto-recovery
Over temperature protection: Shut down o/p voltage, re-power on to recover Setup, rise, hold
up time: 600ms, 30ms, 16ms at full load
Withstand voltage:
I/P-O/P: 3.75 kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5 kVAC
Working temperature: -30~+70ºC (refer to output derating curve)
Safety standards: UL60950-1, TUV EN60950-1, EN61558-1, EN61558-2-16, CCC GB4943 approved
EMC standards: EN55022 (CISPR22) Class B, EN61000-3-2, -3, GB9254 class B, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN55024
Connection: 7P/ 9.5 mm pitch terminal block
Dimension (LxWxH) (mm): 199x99x 30mm
Packing: 24pcs / 15.4 kg
Protections: Short circuit/ Overload / Over voltage / Over temperature Cooling by free air convection 1U low profile 30mm Remote ON-OFF control LED indicator for power on 100% full load burn-in test 3 years warranty General Specification (Please refer to images below for detailed datasheet)
C input voltage range: 85~264VAC; 120~370VDC AC inrush current (max. ): Cold start, 45A at 230VAC
Overload protection: 105%~135% Constant current limiting, auto-recovery
Over temperature protection: Shut down o/p voltage, re-power on to recover Setup, rise, hold
up time: 600ms, 30ms, 16ms at full load
Withstand voltage:
I/P-O/P: 3.75 kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5 kVAC
Working temperature: -30~+70ºC (refer to output derating curve)
Safety standards: UL60950-1, TUV EN60950-1, EN61558-1, EN61558-2-16, CCC GB4943 approved
EMC standards: EN55022 (CISPR22) Class B, EN61000-3-2, -3, GB9254 class B, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN55024
Connection: 7P/ 9.5 mm pitch terminal block
Dimension (LxWxH) (mm): 199x99x 30mm
Packing: 24pcs / 15.4 kg
