1PCS Adjustable Power Supply 30V 10A Lab Bench Power Stabilized Switch Power Supply Voltage Regulator 60V 5A for PC(WPS605B)

Power Supplies
Four-digit display 0.01 V/0.001 A

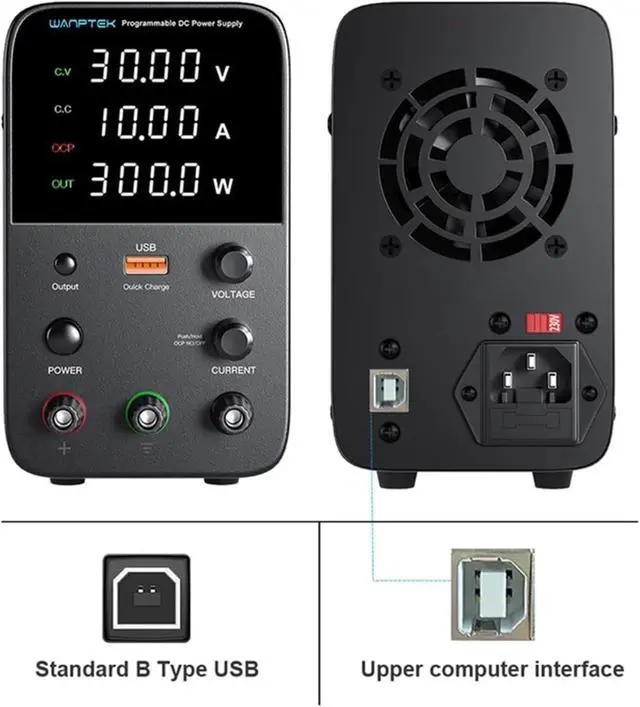

1.WPS3010H/WPS605H/WPS305H Encoder adjustment power supply,Can connect to the computer and use the computer to control the power supply
2.APS1602H/APS1203H/APS3010H/APS605H/APS305H Encoder adjustment (With memory storage function) power supply,Can connect to the computer and use the computer to control the power supply
After receiving the power supply, please remember to contact me and give you the program software, otherwise the computer cannot control the power supply!!!
This model is a miniature switching power supply. The output voltage and current can be controlled and adjusted by variable resistors respectively, so it provides more convenience and accuracy in the adjustment of voltage and current. The panel also provides high-precision two/three-window digital tube display of voltage, current and power, so that users can intuitively see the current use status and various parameters of the machine

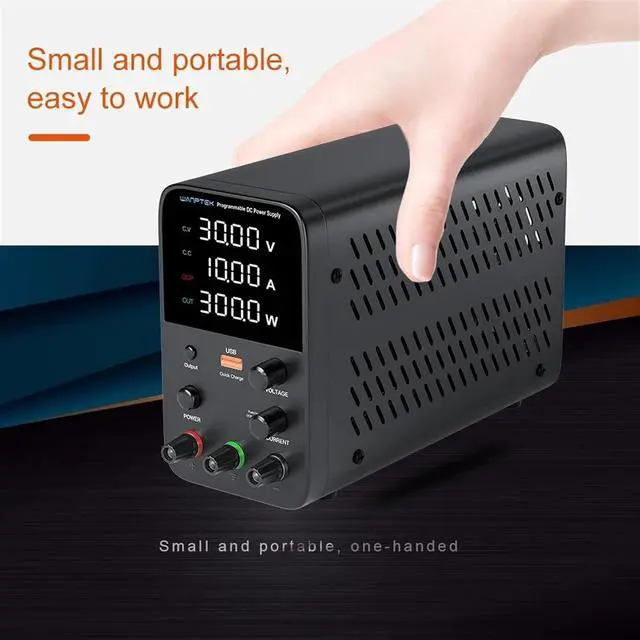

1.Small size, light weight and high power density.
2.Constant pressure and constant current switch automatically.
3.LED display of voltage, current and power, high precision and features of voltage stabilization, current limiting, and simple operation.
4.Adjustable Output Voltage & Current output voltage and output current can be 5adjusted between 0 and nominal value with fine regulating and coarse regulating
6it has over voltage protectionOVP over current protectionOCP), over temperature protection
7.Temperature controlled fan cooling, low noise, long life.
8.Dual voltage input and convenient choice.
9.Output Voltage ranges from 0 to rating voltage with continuous adjustment .
10.Output current ranges from 0 to rating current with continuous adjustment
11.
AC 110v and 220v
can work
, rest assured to choose.
12.
Encoder adjustment (With memory storage function)
(Optional)
power supply
FCC & certified product
STORAGE AND RECALL MEMORY FUNCTION
Features 3 buttons with Storage and recall memory function Easily storage or recall the commonly used currentvoltage only by pressing the button Support Constant Current (C.C.) and Constant Voltage (C.V.) modes.
Memory Function
1) Rotate the Knob to set the value you want to save.
2) Long press the "M1" button until the indicator is on, which means the value saved in the "M1" button successfully.
3) Press the "M1" button to light the button. The saved value will be read when the indicator is on. (M1/ M2/ M3 button works essentially the same way).
Output Power
150W/300W/320W/360W
Output voltage
0~30V/60V/120V/160V
Output current
0~2A/3A/5A/10A
working environment
input voltage:AC 230V/115V±10%;50Hz/60Hz
<;80%RH
<;70%RH
Constant voltage CV
Voltage stability:0.1%±3mV
Load stability: 0.2%±3mV
Ripple voltage:0.5% Vp-p
0 to rated voltage adjustable
constant current CC
Current stability:0.1%±3mA
Load stability: 0.2%±3mA
Ripple current:0.5% Vp-p
Recovery time:500S
Temperature coefficient:100ppm/
0 to rated current adjustable
display
LED digit display
Display accuracy:0.5%±digits
Display resolution: voltage 0.01V, current 0.001A
1. Production line test.
2. Mobile phonemaintenance, computermaintenance, electrical appliance maintenance,Car DVD, car audio.
3. Product aging, electroplating,such as resistors, capacitors, relays, motors, LEDs, etc.
4. Charge the battery.
5. Laboratory, scientific research teaching, maintenance power supply.school laboratories scientific research and production line use
6. All other occasions requiring power supply.

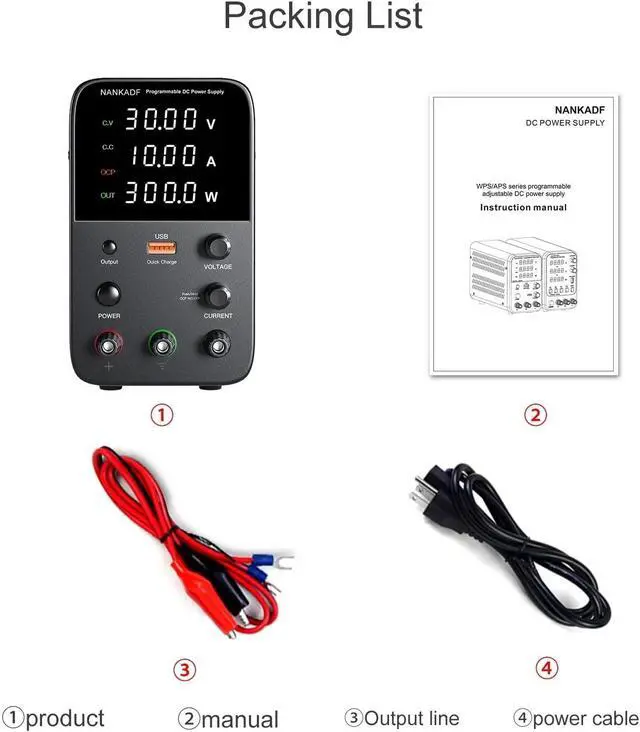

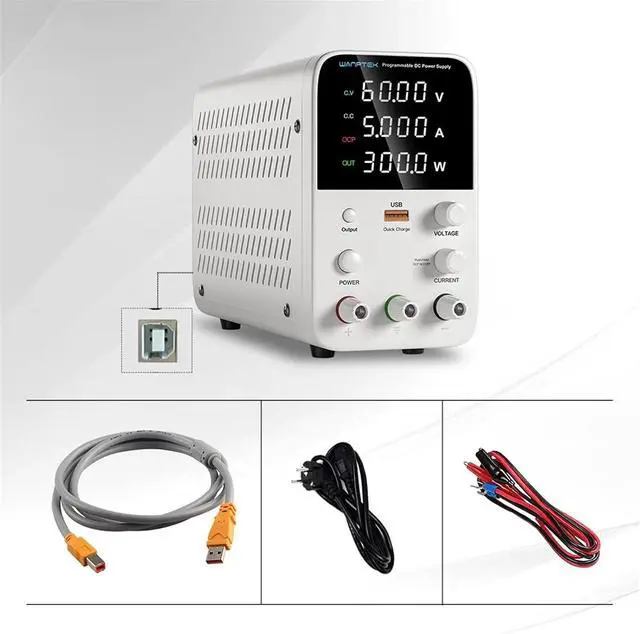

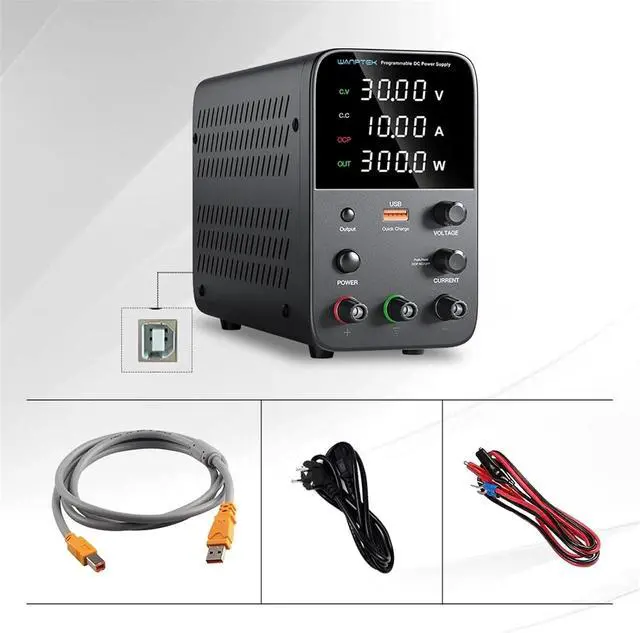

1x power supply
1x power cord (EU,US,UK,AU)
1x Test line
1x Instructions
==========
Output Power : 201 - 300W
is_customized : no
Output Current : 0-10A
Model Number : WPS3010H
Output Frequency : 50HZ 60HZ
Output Type : SINGLE
Features1 : pc upper interface
Features2 :
