RGBlink mini-edge 10-Ch 4K HDMI/SDI/NDI Live Streaming Video Mixer Switcher

mini-edge SDI features four 4K HDMI 2.0 inputs and four 3G-SDI inputs, one UVC and one NDI bi-direction input & output, supporting digital embedded audio and video signals from PC, Camera and more. Also analog audio by 1 x Phantom, 1 x Line in and 1 x Mic, and a Bluetooth audio.

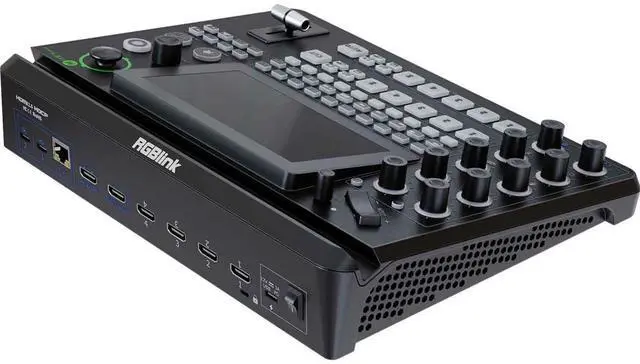

There are two separate HDMI outputs for multi-viewer Preview, Program or Test Pattern. One USB 3.0 output supports YUY2 and MJPEG capture formats, which can be recognized as a webcam for streaming to Facebook, YouTube, ZOOM, etc.

The UVC can be used bidirectionally for USB disk recording, wireless speaker and wireless microphone. This function can be applied to devices such as RGBlink AI mini. The Ethernet port with NDI license enable is bi-direction too, which ensures that the NDI encoder and decoder can work at the same time.

mini-edge SDI is built in with 5.5-inch TFT panel for menu operation and multiviewer video display. Compared with mini-edge, mini-edge SDI has 4 more 3G SDI inputs, a ready-to-be-licensed bidirectional NDI, and also noise reduction for audio inputs. Else it features dynamic output control, multi-view preview, picture in picture, chroma key, transitions, on board PTZ camera controls and much more.

mini-edge SDI is webAPP ready. It is also integrated with TAO Cloud for remote control and can stream to at least 4 content platforms at the same time.

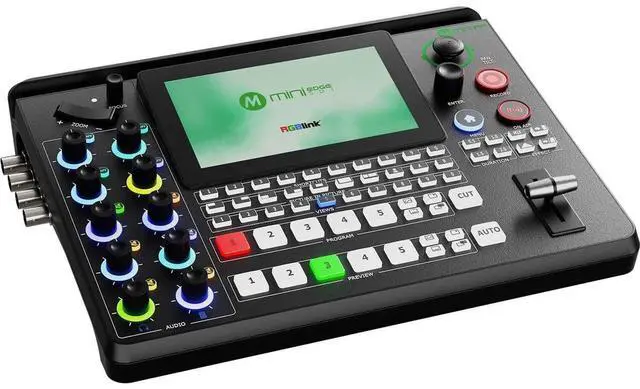

Full-Featured Keyboard Controls at a Glance

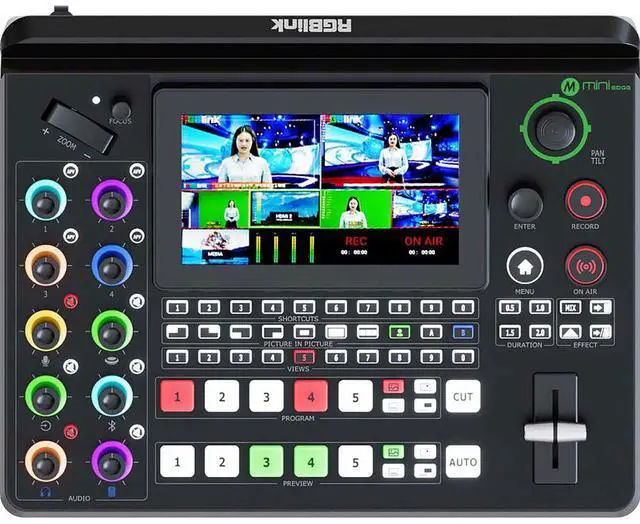

The onboard 5.5-inch HD full-color screen monitors all input channels and output images in real time. Full-featured keyboard, fast control of any function.

Integrated PTZ Camera Control
Forget about having multiple separate control panels for video and camera control. mini-edge SDI brings it all together, supporting industry standard VISCA or NDI protocol for PTZ control directly from the mixer. Control up to four separate cameras with pan, tilt, zoom and focus.

Precise Fingertip Control
Integrated joystick provides tactile control for each PTZ camera. Together with the toggle on the front panel, they can control the pan, tilt, zoom and focus of the PTZ camera. Joystick and toggle are additionally dynamically assigned to settings including scale, position and crop for enhanced usability when a layer being controlled.

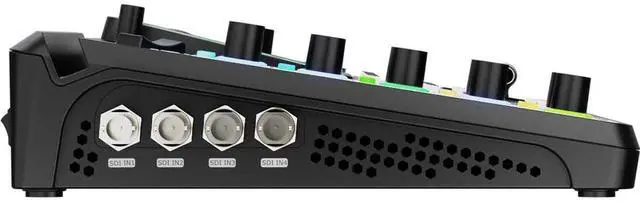

Professional broadcast SDI input
Longer transmission distance and more professional broadcast SDI camera input.

Pro Color Rendering and Layers: One-Click Chroma Key
Enable presenters to be in virtual studios and environments with Chroma Key. Select from standard key colors and enable Chroma Key directly on mini-edge SDI without the need for an app. Refine color selection and tolerances from the touch screen to optimize.

Pro Level Audio

Capture Every Sound

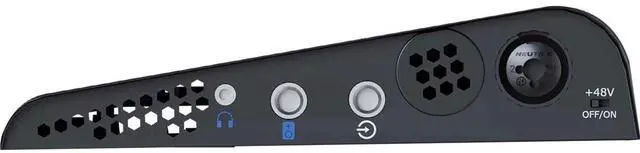

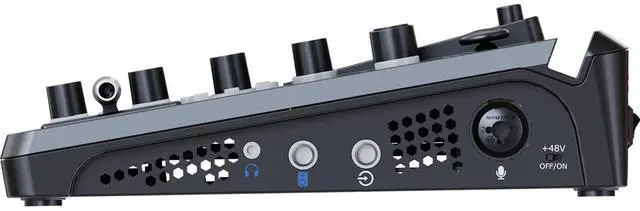

With two separate insert audio ports, mini-edge SDI has got external balanced mic and line level audio covered. All two ports accept TRS 1/4 in jacks, with MIC supporting direct XLR connection too. Plus there is 48V phantom power directly from mini-edge SDI available too on MIC, negating the need for a separate DI, and instantly making studio mics native connections as they should be.

Follow the Action & Always be In Sync

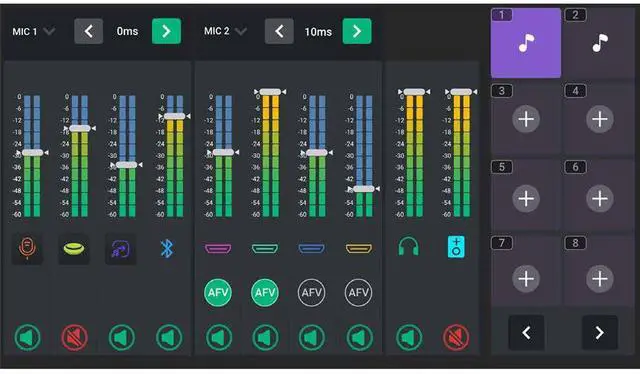

Set AFV for any HDMI embedded audio so the audio switches with the video source to PVW and PGM automatically. Configure audio delay for MIC inputs or a camera input to keep audio in sync with the video.

Monitor & Set Live
The professional audio console with dynamic button operation is both eye -catching and convenient. It provides precise control, allowing for easy volume adjustment and enabling one - key mute and monitoring, which brings the user an excellent live-streaming experience.

Pro Level Video

Sophisticated Multi-Layer Presentation
