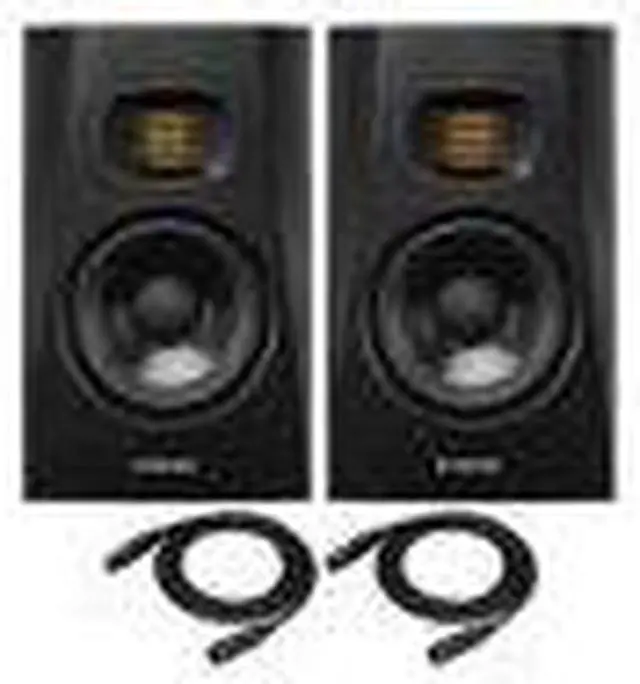

Adam Audio T5V Active Nearfield Monitor (2-Pack) Bundle

Adam Audio T5V Active Nearfield Monitor

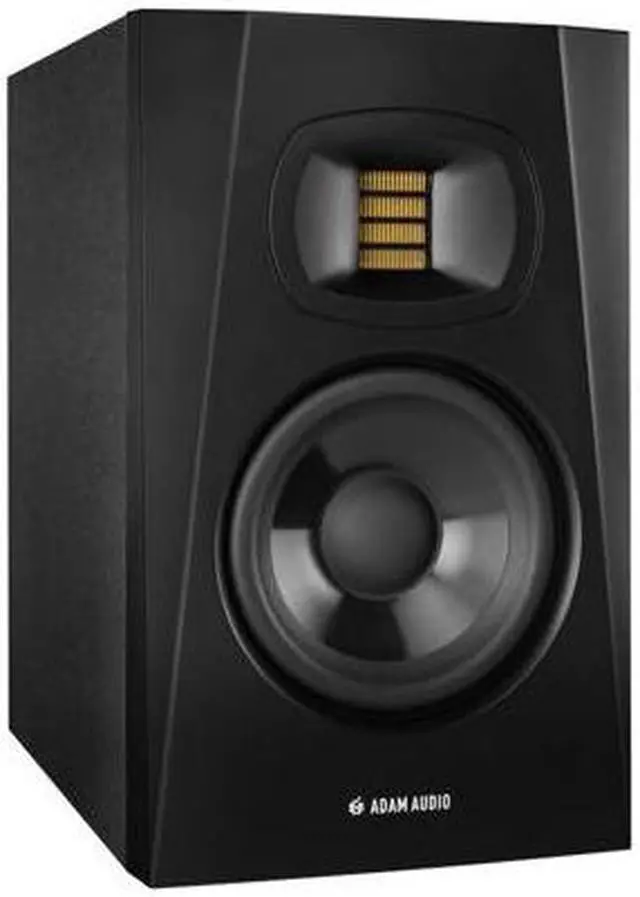

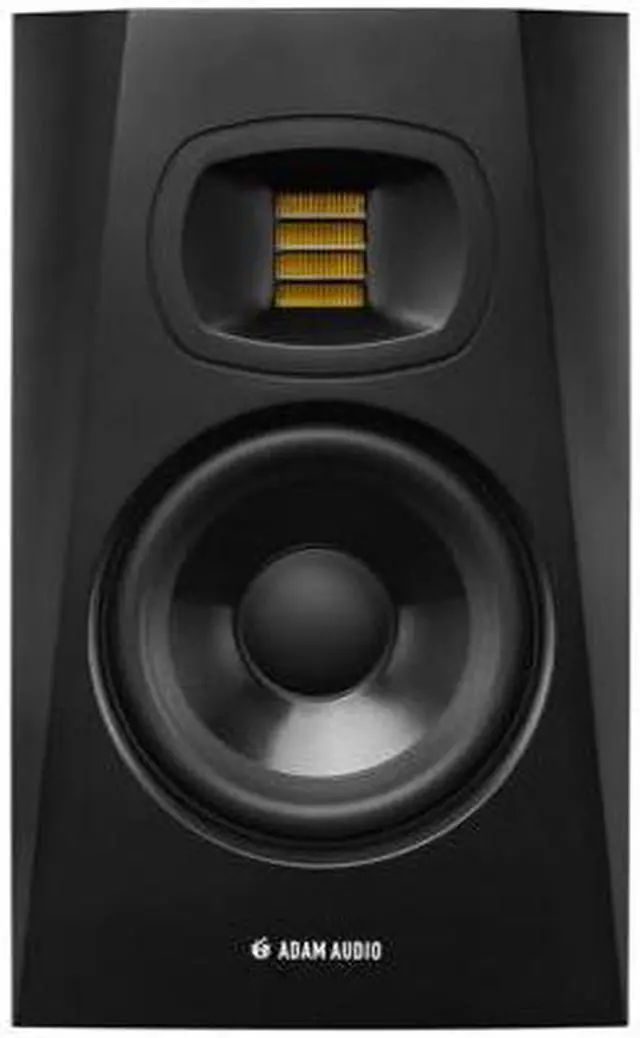

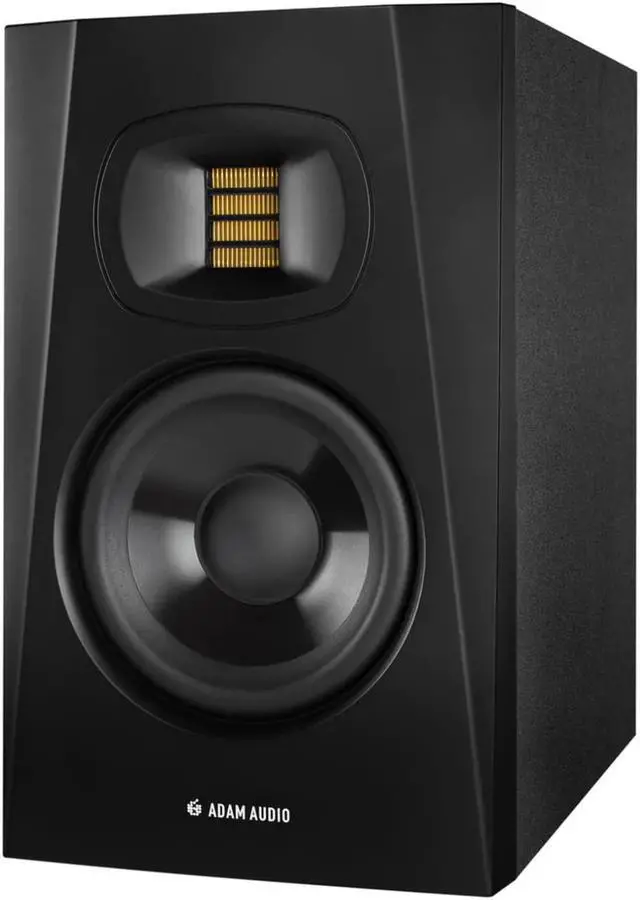

The Adam Audio T5V Active Nearfield Monitor is a highly affordable two-way nearfield monitor optimized for small control rooms.

Ergonomics

With its 5-inch woofer, the bass frequency response of the T5V extends to 45 Hz. The new U-ART tweeter, a breakthrough solution for use in high-resolution recording and mixing on a budget, goes up to 25 kHz and is mated to a precision waveguide with the same dispersion-control attributes as the high-frequency propagation (HPS) waveguide used in Adam Audios flagship S Series monitors. The waveguides highly uniform dispersion of high frequencies provides an incredibly wide sweet spot that frees you from being glued to a rigid mix position while working.

Mechanism

A beveled cabinet with a rear-firing bass reflex port and a small footprint allows placement anywhere in your room, no matter how small, and contains built-in DSP-controlled driver crossovers and equalization as well as multi-way analog connections. Powered with a 50 W Class D amplifier for the woofer and a 20 W Class D amplifier for the U-ART tweeter, the T5V produces SPLs of up to 106 dB per pair. Excellent acoustic characteristics, small dimensions, and an outstanding cost/performance ratio make this studio monitor perfectly suited for use in small control rooms in music, video, and broadcast production.

U-ART 1.9-Inch Accelerated Ribbon Tweeter

The new U-ART 1.9-inch accelerated ribbon tweeter, as used in the T Series, is made of a high-tech polyimide film and provides pristine and extended high-frequency response up to 25 kHz,virtually unheard of in monitors in this price range, and a breakthrough solution for use in high-resolution recording and mixing on a budget. Unlike a conventional dome or cone tweeter that uses a piston action to move air and reproduce sound, the U-ART tweeter uses a pleated ribbon that alternately draws air into its folds and squeezes it out like the folds respectively expand apart and press together in response to the inputted audio signal. This design produces four times as much air movement as does a piston-based design, creating higher sound pressure levels (SPLs) with lower distortion.

High-Frequency Propagation System

The HPS (High-frequency Propagation System) waveguide was initially designed at ADAM Audio for the S-Art of the S series range with the aid of the latest computer modeling techniques. It hones the dispersion of the speakers to an even, uniform consistency, broad in the horizontal axis but tightly focused in the vertical plane. This minimizes potentially distracting reflections from the horizontal surfaces of significant studio furniture (for example mixing consoles), ensures that imaging remains constant, and creates a large, well-controlled, and stable sweet spot, even at high output levels.

Pulse Width Modulation

The PWM (Pulse Width Modulation) sometimes referred to as Class D amplification, sometimes called Switching Amp Technology converts the incoming signal to a series of rectangular waveforms of equal height. The width of the rectangles varies in time and the relation of the width of the rectangles represents the musical signal.

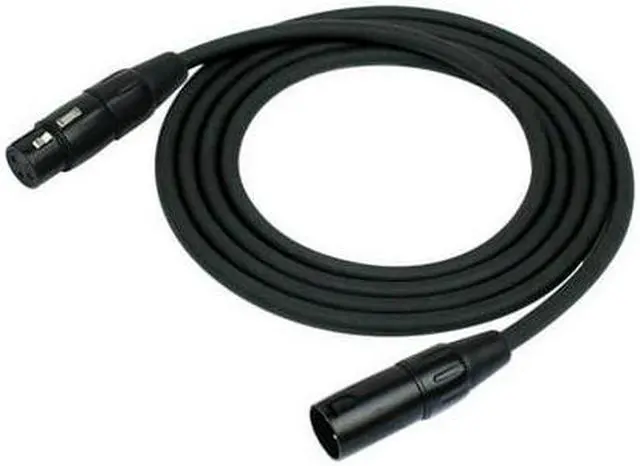

Knox Gear 25-Feet XLR Male to XLR Female Microphone Cable

Knox Gear 25FT XLR Male - XLR Female Microphone Cable,KEY_TAB is professionally designed to prevent external interference and ensure signals travel rapidly and smoothly with minimum distortion, delay, or loss. These cables feature two 20-gauge CCAM conductors, which are twisted pair with cotton yarn fillers, conductive PVC shield with 100% coverage, and CCAMKEY_TAB spiral shieldingKEY_TAB with 90% coverage.
