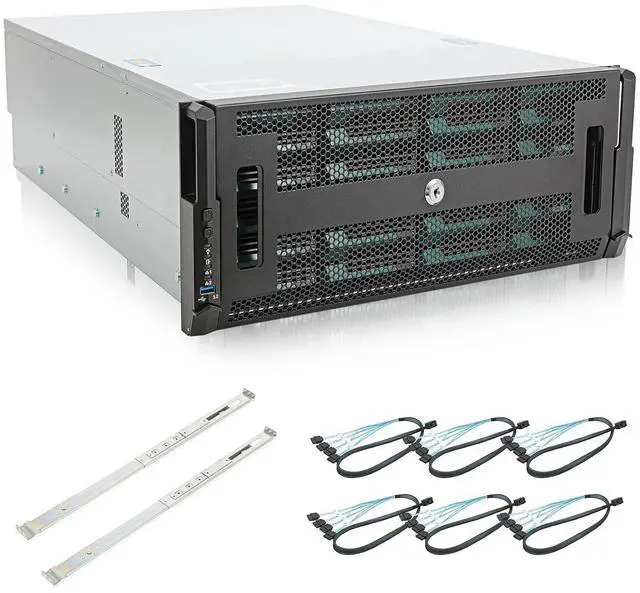

4U 24bay Hotswap 12Gbps Swappable screwless 24 x 3.5/2.5 Chassis with sliidng Rail and SFF-8643 Minisas to SATA Cables with keylock Door
- M/B size: EATX/ATX/MicroATX/Mini-ITX
- Drive Bays: 24 * hot swap 3.5 SATA/SAS (2.5" compatible) screwless (with keylock door)
- Cooling System: 3*12038 Hot-Swap PWM Fans with shroud max fan speed: 5000 rpm + 2 x 8cm at rear (option)
- Expansion Slots: 8x full height
- PSU: Supports standard ATX power supply and CRPS redundant PSU
- Cable: include 6pcs reversed SFF-8643 male to 4xSATA 7pin Female
- Backplane: MiniSAS (SFF-8643) HDD Backplane

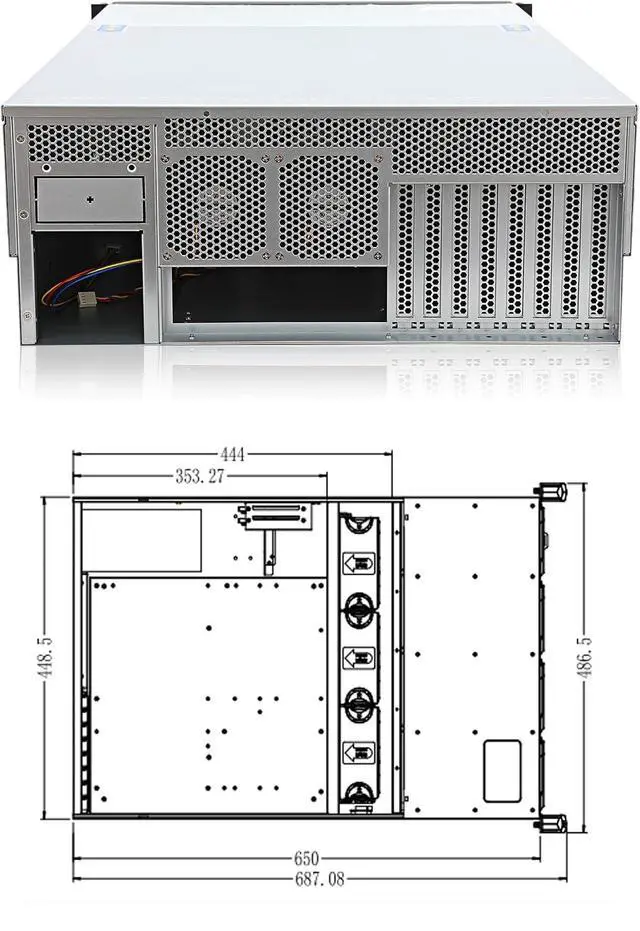

- 4U server rackmount case depth=650mm (25.6') not include handle

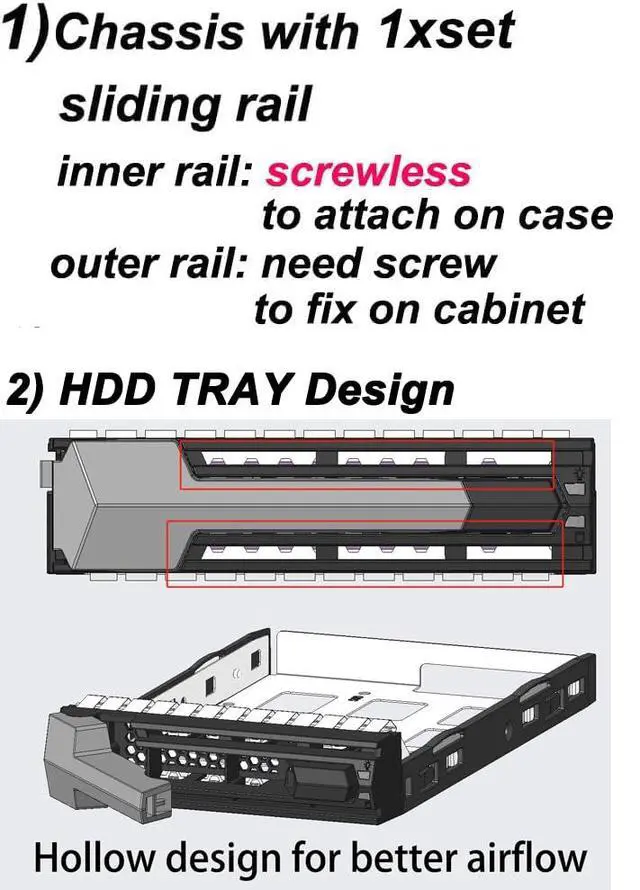

- Note: Due to the heavy server chassis,for the safety concern the rail cannot fully extend. Remove the chassis with the inner rail from cabinet if need open the top cover. (we are also upate the longer rail support heavy server now) How to install the rail with chassis on cabinet step 1Install the inner rails onto the chassis. sep 2) Install the outer rails onto the rack. step 3) Slide the chassis (with inner rails attached) into the outer rails on the rack.

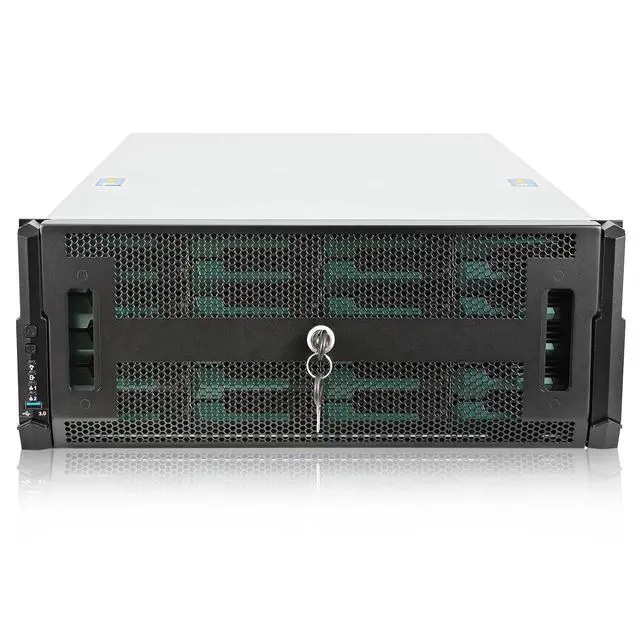

- Doorwith keylock lock door
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
M/B size: EATX/ATX/MicroATX/Mini-ITX^^Drive
Bays: 24 * hot swap 3.5 SATA/SAS ( 2.5" compatible) screwless (with keylock door) ^^Cooling
System: 3*12038 Hot-Swap PWM Fans with shroud
max fan speed: 5000 rpm + 2 x 8cm at rear (option) ^^Expansion
Slots: 8x
full height^^PSU: Supports standard ATX power supply and CRPS redundant
PSU^^Cable: include 6pcs reversed SFF-8643 male to 4xSATA 7pin
Female^^Backplane: MiniSAS (SFF-8643) HDD Backplane^^4U server rackmount case depth=650mm ( 25.6 ') not include handle^^Note: Due to the heavy server chassis, for the safety concern the rail cannot fully extend. Remove the chassis with the inner rail from cabinet if need open the top cover. (we are also upate the longer rail support heavy server now) How to install the rail with chassis on cabinet step 1Install the inner rails onto the chassis. sep 2) Install the outer rails onto the rack. step 3) Slide the chassis (with inner rails attached) into the outer rails on the rack. ^^Doorwith keylock lock door
Bays: 24 * hot swap 3.5 SATA/SAS ( 2.5" compatible) screwless (with keylock door) ^^Cooling
System: 3*12038 Hot-Swap PWM Fans with shroud
max fan speed: 5000 rpm + 2 x 8cm at rear (option) ^^Expansion
Slots: 8x
full height^^PSU: Supports standard ATX power supply and CRPS redundant
PSU^^Cable: include 6pcs reversed SFF-8643 male to 4xSATA 7pin
Female^^Backplane: MiniSAS (SFF-8643) HDD Backplane^^4U server rackmount case depth=650mm ( 25.6 ') not include handle^^Note: Due to the heavy server chassis, for the safety concern the rail cannot fully extend. Remove the chassis with the inner rail from cabinet if need open the top cover. (we are also upate the longer rail support heavy server now) How to install the rail with chassis on cabinet step 1Install the inner rails onto the chassis. sep 2) Install the outer rails onto the rack. step 3) Slide the chassis (with inner rails attached) into the outer rails on the rack. ^^Doorwith keylock lock door
