2pin Wire Video Door Phone Visual Intercom Doorbell + 7in TFT LCD Screen Monitor + Power Supply Controller, IC Card / Password / remote control unlock intercom doorbell system, 1 Doorbell + 1 Monitor

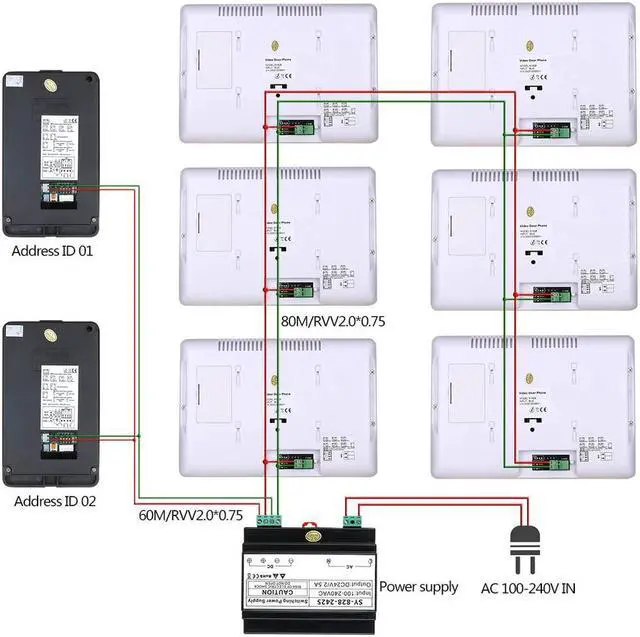

The 2-wire system required only two wires, power, audio, video and control signal all transmitted by a 2-wire cable, non polarity, central power supply. Use Plug-in connectors and DIP switchers for rapid installation. Integrated Multi functions with simple operation makes the system more attractive, Flexible cable connection to wire, support in-out, branching and mixed mode. Dual intercom communication between indoor units.


Features:

1. The 2-wire system required only two wires, power, audio, video and control signal all transmitted by a 2-wire cable.

2. Using integrated power suppply, max support 2 outside unit and 6 indoor monitors

3. Little rain and oxidation-proof for the durable aluminum alloy outdoor unit. with White Led Night Vision

4.7" color TFT LCD without radiation, low power consumption and high definition.

5. To unlock 2 locks simultaneously

6. Handfree intercom.

7. Mute indoor intercom function.

8. Monitoring the outside of the door.

9. Volume, brightness and contrast adjustable.


10. Group talk/intercom function

11.
Fingerprint type: 1000 IC cards unlock, password unlock, 99 pcs remote controls to unlock.

Specifications

:

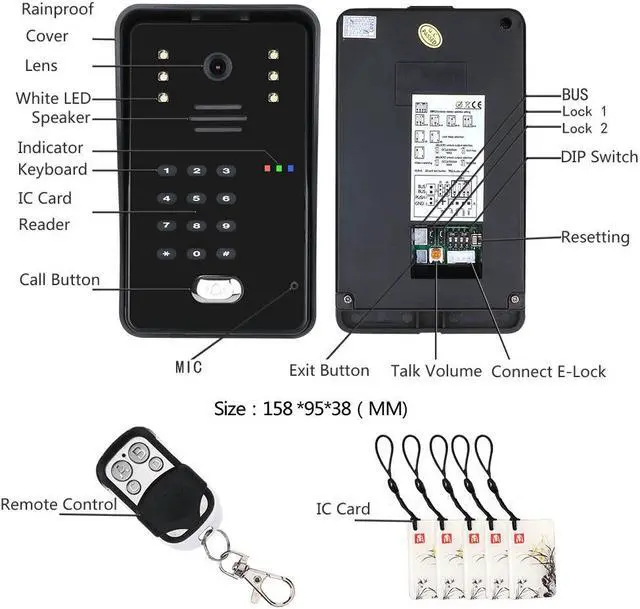

Outdoor Camera

1. Aluminum alloy outside unit with White Led Night Vision

2.
Camera: 1/3" CMOS 1000TV line

3.
View angle: 92°

4. Min.
Illumination: 0.5L ux

5.
Fingerprint type: 1000 IC cards unlock, password unlock, 99 pcs remote controls to unlock.

6.
Connection way: BUS 2-wire

7.
Installation: Wall mounted

8.
Working Temperature: -30°C to 50°C

9.
Size: 158*93*38mm

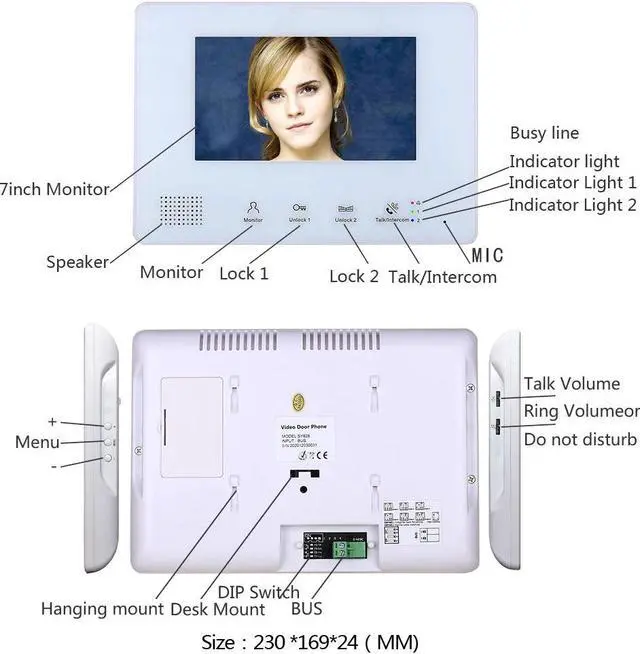

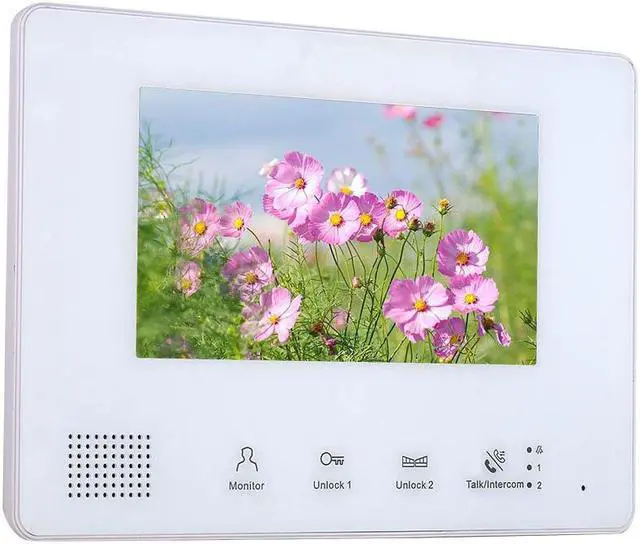

Monitor

1.
Screen: 7inch LCD

2.
Effective pixels: 800 * 480

3.
Connection way: BUS 2-wire

4.
Dimensions: 151 * 80 * 38 (MM)

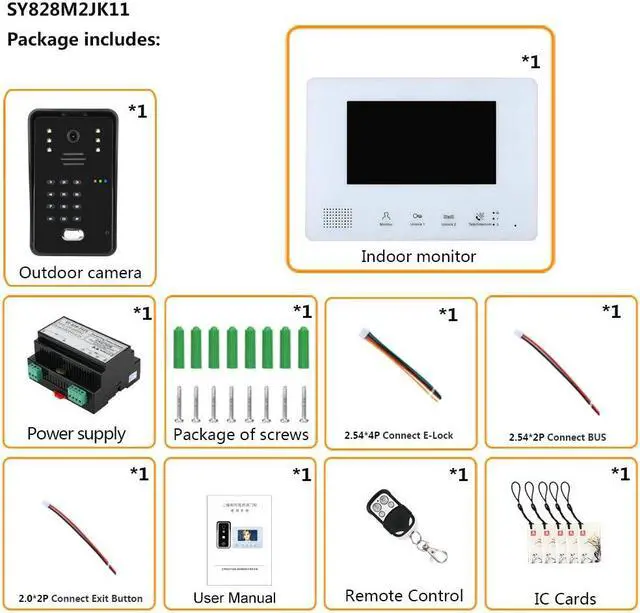

Package includes:

1 * Outdoor Unit (Camera)

1 * Indoor Unit (Monitor) ----You can choose monitor quantity in the Optional based your need.

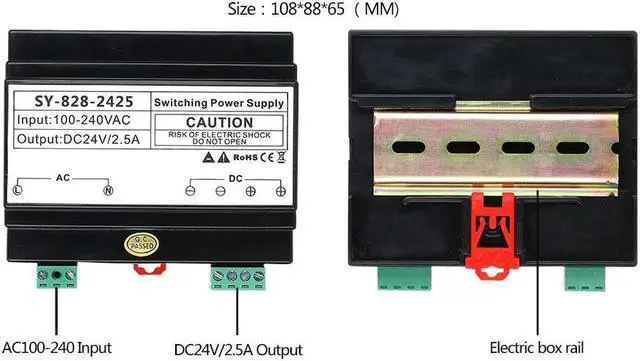

1 * DC24V 2.5A power suppply

5 *IC Cards

1 * Remote Control

1 * 4-core Connection locks terminal wire

1 * 2.54 *2P 2-core Connection terminal wire

1 * 2.0 *2P 2-core Connection terminal wire

1 * Screws

1 * User Manual
